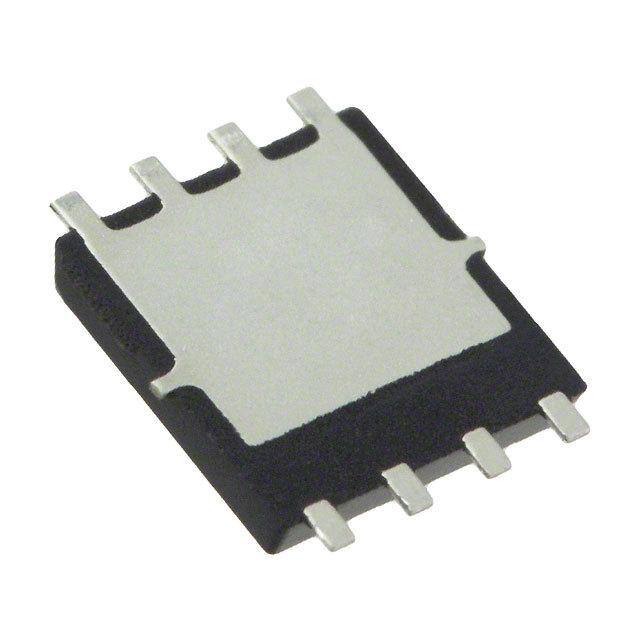

TPH14006NH MOSFETs Silicon N-channel MOS (U-MOS-H) TTTTPPPPHHHH11114444000000006666NNNNHHHH 1111.... AAAApppppppplllliiiiccccaaaattttiiiioooonnnnssss • Switching Voltage Regulators • Motor Drivers • DC-DC Converters 2222.... FFFFeeeeaaaattttuuuurrrreeeessss (1) Small footprint due to a small and thin package (2) High-speed switching (3) Small gate charge: Q = 6.3 nC (typ.) SW (4) Low drain-source on-resistance: RDS(ON) = 11 mΩ (typ.) (VGS = 10 V) (5) Low leakage current: IDSS = 10 µA (max) (VDS = 60 V) (6) Enhancement mode: V = 2.0 to 4.0 V (V = 10 V, I = 0.2 mA) th DS D 3333.... PPPPaaaacccckkkkaaaaggggiiiinnnngggg aaaannnndddd IIIInnnntttteeeerrrrnnnnaaaallll CCCCiiiirrrrccccuuuuiiiitttt 1, 2, 3: Source 4: Gate 5, 6, 7, 8: Drain SOP Advance 4444.... AAAAbbbbssssoooolllluuuutttteeee MMMMaaaaxxxxiiiimmmmuuuummmm RRRRaaaattttiiiinnnnggggssss ((((NNNNooootttteeee)))) ((((TTTTaaaa ==== 22225555 uuuunnnnlllleeeessssssss ooootttthhhheeeerrrrwwwwiiiisssseeee ssssppppeeeecccciiiiffffiiiieeeedddd)))) Characteristics Symbol Rating Unit Drain-source voltage V 60 V DSS Gate-source voltage V ±20 GSS Drain current (DC) (Silicon limit) (Note 1), (Note 2) I 34 A D Drain current (DC) (Note 1) I 14 D Drain current (pulsed) (t = 1 ms) (Note 1) I 42 DP Power dissipation (T = 25) P 32 W c D Power dissipation (t = 10 s) (Note 3) P 2.8 W D Power dissipation (t = 10 s) (Note 4) P 1.6 W D Single-pulse avalanche energy (Note 5) E 53 mJ AS Avalanche current I 14 A AR Channel temperature T 150  ch Storage temperature T -55 to 150 stg Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook ("Handling Precautions"/"Derating Concept and Methods") and individual reliability data (i.e. reliability test report and estimated failure rate, etc). Start of commercial production 2011-11 1 2014-01-07 Rev.4.0

TPH14006NH 5555.... TTTThhhheeeerrrrmmmmaaaallll CCCChhhhaaaarrrraaaacccctttteeeerrrriiiissssttttiiiiccccssss Characteristics Symbol Max Unit Channel-to-case thermal resistance (T = 25) R 3.91 /W c th(ch-c) Channel-to-ambient thermal resistance (t = 10 s) (Note 3) R 44.6 /W th(ch-a) Channel-to-ambient thermal resistance (t = 10 s) (Note 4) R 78.1 /W th(ch-a) Note 1:Ensure that the channel temperature does not exceed 150. Note 2:Limited by silicon capability. Note 3:Device mounted on a glass-epoxy board (a), Figure 5.1 Note 4:Device mounted on a glass-epoxy board (b), Figure 5.2 Note 5:V = 24 V, T = 25 (initial), L = 0.38 mH, R = 1 Ω, I = 14 A DD ch G AR FFFFiiiigggg.... 5555....1111 DDDDeeeevvvviiiicccceeee MMMMoooouuuunnnntttteeeedddd oooonnnn aaaa GGGGllllaaaassssssss----EEEEppppooooxxxxyyyy FFFFiiiigggg.... 5555....2222 DDDDeeeevvvviiiicccceeee MMMMoooouuuunnnntttteeeedddd oooonnnn aaaa GGGGllllaaaassssssss----EEEEppppooooxxxxyyyy BBBBooooaaaarrrrdddd ((((aaaa)))) BBBBooooaaaarrrrdddd ((((bbbb)))) Note: This transistor is sensitive to electrostatic discharge and should be handled with care. 2 2014-01-07 Rev.4.0

TPH14006NH 6666.... EEEElllleeeeccccttttrrrriiiiccccaaaallll CCCChhhhaaaarrrraaaacccctttteeeerrrriiiissssttttiiiiccccssss 6666....1111.... SSSSttttaaaattttiiiicccc CCCChhhhaaaarrrraaaacccctttteeeerrrriiiissssttttiiiiccccssss ((((TTTTaaaa ==== 22225555 uuuunnnnlllleeeessssssss ooootttthhhheeeerrrrwwwwiiiisssseeee ssssppppeeeecccciiiiffffiiiieeeedddd)))) Characteristics Symbol Test Condition Min Typ. Max Unit Gate leakage current I V = ±20 V, V = 0 V   ±0.1 µA GSS GS DS Drain cut-off current I V = 60 V, V = 0 V   10 DSS DS GS Drain-source breakdown voltage V I = 10 mA, V = 0 V 60   V (BR)DSS D GS Drain-source breakdown voltage (Note 6) V I = 10 mA, V = -20 V 45   (BR)DSX D GS Gate threshold voltage V V = 10 V, I = 0.2 mA 2.0  4.0 th DS D Drain-source on-resistance R V = 6.5 V, I = 7.0 A  14 33 mΩ DS(ON) GS D V = 10 V, I = 7.0 A  11 14 GS D Note 6:If a reverse bias is applied between gate and source, this device enters V mode. Note that the drain- (BR)DSX source breakdown voltage is lowered in this mode. 6666....2222.... DDDDyyyynnnnaaaammmmiiiicccc CCCChhhhaaaarrrraaaacccctttteeeerrrriiiissssttttiiiiccccssss ((((TTTTaaaa ==== 22225555 uuuunnnnlllleeeessssssss ooootttthhhheeeerrrrwwwwiiiisssseeee ssssppppeeeecccciiiiffffiiiieeeedddd)))) Characteristics Symbol Test Condition Min Typ. Max Unit Input capacitance C V = 30 V, V = 0 V, f = 1 MHz  1000 1300 pF iss DS GS Reverse transfer capacitance C  25 55 rss Output capacitance C  310  oss Gate resistance r V = 10 V, V = 0 V, f = 1 MHz  2.0 3.0 Ω g DS GS Switching time (rise time) t See Figure 6.2.1  9.0  ns r Switching time (turn-on time) t  18  on Switching time (fall time) t  5.5  f Switching time (turn-off time) t  18  off FFFFiiiigggg.... 6666....2222....1111 SSSSwwwwiiiittttcccchhhhiiiinnnngggg TTTTiiiimmmmeeee TTTTeeeesssstttt CCCCiiiirrrrccccuuuuiiiitttt 6666....3333.... GGGGaaaatttteeee CCCChhhhaaaarrrrggggeeee CCCChhhhaaaarrrraaaacccctttteeeerrrriiiissssttttiiiiccccssss ((((TTTTaaaa ==== 22225555 uuuunnnnlllleeeessssssss ooootttthhhheeeerrrrwwwwiiiisssseeee ssssppppeeeecccciiiiffffiiiieeeedddd)))) Characteristics Symbol Test Condition Min Typ. Max Unit Total gate charge (gate-source plus Q V ≈ 48 V, V = 10 V, I = 14 A  16  nC g DD GS D gate-drain) Gate-source charge 1 Q  4.3  gs1 Gate-drain charge Q  4.8  gd Gate switch charge Q  6.3  SW 6666....4444.... SSSSoooouuuurrrrcccceeee----DDDDrrrraaaaiiiinnnn CCCChhhhaaaarrrraaaacccctttteeeerrrriiiissssttttiiiiccccssss ((((TTTTaaaa ==== 22225555 uuuunnnnlllleeeessssssss ooootttthhhheeeerrrrwwwwiiiisssseeee ssssppppeeeecccciiiiffffiiiieeeedddd)))) Characteristics Symbol Test Condition Min Typ. Max Unit Reverse drain current (pulsed) (Note 7) I    42 A DRP Diode forward voltage V I = 14 A, V = 0 V   -1.2 V DSF DR GS Note 7:Ensure that the channel temperature does not exceed 150. 3 2014-01-07 Rev.4.0

TPH14006NH 7777.... MMMMaaaarrrrkkkkiiiinnnngggg FFFFiiiigggg.... 7777....1111 MMMMaaaarrrrkkkkiiiinnnngggg 4 2014-01-07 Rev.4.0

TPH14006NH 8888.... CCCChhhhaaaarrrraaaacccctttteeeerrrriiiissssttttiiiiccccssss CCCCuuuurrrrvvvveeeessss ((((NNNNooootttteeee)))) FFFFiiiigggg.... 8888....1111 IIIIDDDD ---- VVVVDDDDSSSS FFFFiiiigggg.... 8888....2222 IIIIDDDD ---- VVVVDDDDSSSS FFFFiiiigggg.... 8888....3333 IIIIDDDD ---- VVVVGGGGSSSS FFFFiiiigggg.... 8888....4444 VVVVDDDDSSSS ---- VVVVGGGGSSSS FFFFiiiigggg.... 8888....5555 RRRRDDDDSSSS((((OOOONNNN)))) ---- IIIIDDDD FFFFiiiigggg.... 8888....6666 RRRRDDDDSSSS((((OOOONNNN)))) ---- TTTTaaaa 5 2014-01-07 Rev.4.0

TPH14006NH FFFFiiiigggg.... 8888....7777 IIIIDDDDRRRR ---- VVVVDDDDSSSS FFFFiiiigggg.... 8888....8888 CCCCaaaappppaaaacccciiiittttaaaannnncccceeee ---- VVVVDDDDSSSS FFFFiiiigggg.... 8888....9999 VVVVtttthhhh ---- TTTTaaaa FFFFiiiigggg.... 8888....11110000 DDDDyyyynnnnaaaammmmiiiicccc IIIInnnnppppuuuutttt////OOOOuuuuttttppppuuuutttt CCCChhhhaaaarrrraaaacccctttteeeerrrriiiissssttttiiiiccccssss FFFFiiiigggg.... 8888....11111111 PPPPDDDD ---- TTTTaaaa FFFFiiiigggg.... 8888....11112222 PPPPDDDD ---- TTTTcccc ((((GGGGuuuuaaaarrrraaaannnntttteeeeeeeedddd MMMMaaaaxxxxiiiimmmmuuuummmm)))) ((((GGGGuuuuaaaarrrraaaannnntttteeeeeeeedddd MMMMaaaaxxxxiiiimmmmuuuummmm)))) 6 2014-01-07 Rev.4.0

TPH14006NH FFFFiiiigggg.... 8888....11113333 rrrrtttthhhh ---- ttttwwww ((((GGGGuuuuaaaarrrraaaannnntttteeeeeeeedddd MMMMaaaaxxxxiiiimmmmuuuummmm)))) FFFFiiiigggg.... 8888....11114444 SSSSaaaaffffeeee OOOOppppeeeerrrraaaattttiiiinnnngggg AAAArrrreeeeaaaa ((((GGGGuuuuaaaarrrraaaannnntttteeeeeeeedddd MMMMaaaaxxxxiiiimmmmuuuummmm)))) Note: The above characteristics curves are presented for reference only and not guaranteed by production test, unless otherwise noted. 7 2014-01-07 Rev.4.0

TPH14006NH PPPPaaaacccckkkkaaaaggggeeee DDDDiiiimmmmeeeennnnssssiiiioooonnnnssss Unit: mm Weight: 0.069 g (typ.) Package Name(s) TOSHIBA: 2-5Q1S Nickname: SOP Advance 8 2014-01-07 Rev.4.0
