SN54ABT2244A, SN74ABT2244A OCTAL BUFFERS AND LINE/MOS DRIVERS WITH 3-STATE OUTPUTS SCBS106E – JANUARY 1991 – REVISED MAY 1997 (cid:1) Output Ports Have Equivalent 25-W Series SN54ABT2244A...J OR W PACKAGE Resistors, So No External Resistors Are SN74ABT2244A...DB, DW, N, OR PW PACKAGE (TOP VIEW) Required (cid:1) ESD Protection Exceeds 2000 V Per 1OE 1 20 VCC MIL-STD-883, Method 3015; Exceeds 200 V 1A1 2 19 2OE Using Machine Model (C = 200 pF, R = 0) (cid:1) 2Y4 3 18 1Y1 Latch-Up Performance Exceeds 500 mA Per 1A2 4 17 2A4 JEDEC Standard JESD-17 2Y3 5 16 1Y2 (cid:1) State-of-the-Art EPIC-II B BiCMOS Design 1A3 6 15 2A3 Significantly Reduces Power Dissipation 2Y2 7 14 1Y3 (cid:1) Typical V (Output Ground Bounce) < 1 V 1A4 8 13 2A2 OLP at V = 5 V, T = 25°C 2Y1 9 12 1Y4 CC A (cid:1) GND 10 11 2A1 High-Impedance State During Power Up and Power Down (cid:1) Package Options Include Plastic SN54ABT2244A...FK PACKAGE (TOP VIEW) Small-Outline (DW), Shrink Small-Outline (DB), and Thin Shrink Small-Outline (PW) 4 1 E CE Y A O CO Packages, Ceramic Chip Carriers (FK), 2 1 1V 2 Plastic (N) and Ceramic (J) DIPs, and 3 2 1 20 19 Ceramic Flat (W) Packages 1A2 4 18 1Y1 2Y3 5 17 2A4 description 1A3 6 16 1Y2 2Y2 7 15 2A3 These octal buffers and line drivers are designed 1A4 8 14 1Y3 specifically to improve both the performance and 9 10 11 12 13 density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and 1 D 14 2 Y N AY A transmitters. Together with the SN54ABT2240, 2 G 21 2 SN74ABT2240A, and ’ABT2241, these devices provide the choice of selected combinations of inverting and noninverting outputs, symmetrical active-low output-enable (OE) inputs, and complementary OE and OE inputs. These devices feature high fan-out and improved fan-in. The outputs, which are designed to sink up to 12 mA, include equivalent 25-W series resistors to reduce overshoot and undershoot. When V is between 0 and 2.1 V, the device is in the high-impedance state during power up or power down. CC However, to ensure the high-impedance state above 2.1 V, OE should be tied to V through a pullup resistor; CC the minimum value of the resistor is determined by the current-sinking capability of the driver. The SN54ABT2244A is characterized for operation over the full military temperature range of –55°C to 125°C. The SN74ABT2244A is characterized for operation from –40°C to 85°C. Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of TexasInstruments semiconductor products and disclaimers thereto appears at the end of this data sheet. EPIC-II B is a trademark of Texas Instruments Incorporated. PRODUCTION DATA information is current as of publication date. Copyright  1997, Texas Instruments Incorporated Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters. POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 1

SN54ABT2244A, SN74ABT2244A OCTAL BUFFERS AND LINE/MOS DRIVERS WITH 3-STATE OUTPUTS SCBS106E – JANUARY 1991 – REVISED MAY 1997 FUNCTION TABLE (each buffer) INPUTS OUTPUT OE A Y L H H L L L H X Z logic symbol† 1 19 1OE EN 2OE EN 2 18 11 9 1A1 1 1Y1 2A1 1 2Y1 4 16 13 7 1A2 1Y2 2A2 2Y2 6 14 15 5 1A3 1Y3 2A3 2Y3 8 12 17 3 1A4 1Y4 2A4 2Y4 †This symbol is in accordance with ANSI/IEEE Std 91-1984 and IEC Publication 617-12. logic diagram (positive logic) 1 19 1OE 2OE 2 18 11 9 1A1 1Y1 2A1 2Y1 4 16 13 7 1A2 1Y2 2A2 2Y2 6 14 15 5 1A3 1Y3 2A3 2Y3 8 12 17 3 1A4 1Y4 2A4 2Y4 2 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

SN54ABT2244A, SN74ABT2244A OCTAL BUFFERS AND LINE/MOS DRIVERS WITH 3-STATE OUTPUTS SCBS106E – JANUARY 1991 – REVISED MAY 1997 schematic of Y outputs VCC Output GND absolute maximum ratings over operating free-air temperature range (unless otherwise noted)† Supply voltage range, V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.5 V to 7 V CC Input voltage range, V (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.5 V to 7 V I Voltage range applied to any output in the high or power-off state, V . . . . . . . . . . . . . . . . . . . –0.5 V to 5.5 V O Current into any output in the low state, I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 mA O Input clamp current, I (V < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –18 mA IK I Output clamp current, I (V < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –50 mA OK O Package thermal impedance, q JA (see Note 2): DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115°C/W DW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97°C/W N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67°C/W PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128°C/W Storage temperature range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –65°C to 150°C stg †Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed. 2. The package thermal impedance is calculated in accordance with EIA/JEDEC Std JESD51, except for through-hole packages, which use a trace length of zero. POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 3

SN54ABT2244A, SN74ABT2244A OCTAL BUFFERS AND LINE/MOS DRIVERS WITH 3-STATE OUTPUTS SCBS106E – JANUARY 1991 – REVISED MAY 1997 recommended operating conditions (see Note 3) SN54ABT2244A SN74ABT2244A UUNNIITT MIN MAX MIN MAX VCC Supply voltage 4.5 5.5 4.5 5.5 V VIH High-level input voltage 2 2 V VIL Low-level input voltage 0.8 0.8 V VI Input voltage 0 VCC 0 VCC V IOH High-level output current –24 –32 mA IOL Low-level output current 12 12 mA D t/D v Input transition rise or fall rate Outputs enabled 5 5 ns/V D t/D VCC Power-up ramp rate 200 200 m s/V TA Operating free-air temperature –55 125 –40 85 °C NOTE 3: Unused inputs must be held high or low to prevent them from floating. 4 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

SN54ABT2244A, SN74ABT2244A OCTAL BUFFERS AND LINE/MOS DRIVERS WITH 3-STATE OUTPUTS SCBS106E – JANUARY 1991 – REVISED MAY 1997 electrical characteristics over recommended operating free-air temperature range (unless otherwise noted) TA = 25°C SN54ABT2244A SN74ABT2244A PPAARRAAMMEETTEERR TTEESSTT CCOONNDDIITTIIOONNSS UUNNIITT MIN TYP† MAX MIN MAX MIN MAX VIK VCC = 4.5 V, II = –18 mA –1.2 –1.2 –1.2 V VCC = 4.5 V, IOH = –3 mA 2.5 2.5 2.5 VCC = 5 V, IOH = –3 mA 3 3 3 VVOOHH VV IOH = –24 mA 2 2 VVCCCC == 44.55 VV IOH = –32 mA 2* 2 VOL VCC = 4.5 V, IOL = 12 mA 0.8 0.8 0.8 V Vhys 100 mV II VCC = 5.5 V, VI = VCC or GND ±1 ±1 ±1 m A IOZPU‡ VVCOC = =0 .05 tVo 2to.1 2 V.7, V, OE = X ±50 ±50 ±50 m A IOZPD‡ VVCOC = =0 .25. 1V V to t o2 .07, V, OE = X ±50 ±50 ±50 m A IOZH VCC = 2.1 V to 5.5 V, VO = 2.7 V, OE ≥ 2 V 10 50 10 m A IOZL VCC = 2.1 V to 5.5 V, VO = 0.5 V, OE ≥ 2 V –10 –50 –10 m A Ioff VCC = 0, VI or VO ≤ 4.5 V ±100 ±100 m A ICEX VVCOC = =5 .55. 5V V, Outputs high 50 50 50 m A IO§ VCC = 5.5 V, VO = 2.5 V –50 –100 –180 –50 –180 –50 –180 mA Outputs high 1 250 250 250 m A ICC VVCC = 55.55 VV, IIO = 00, Outputs low 24 30 30 30 mA VVII == VVCCCC oorr GGNNDD Outputs disabled 0.5 250 250 250 m A VCC = 5.5 V, Outputs enabled 1.5 1.5 1.5 Data One input at 3.4 V,, inputs Other inputs at D ICC¶¶ VCC or GND Outputs disabled 0.05 0.05 0.05 mA Control VCC = 5.5 V, One input at 3.4 V, 1.5 1.5 1.5 inputs Other inputs at VCC or GND Ci VI = 2.5 V or 0.5 V 4 pF Co VO = 2.5 V or 0.5 V 5.5 pF * On products compliant to MIL-PRF-38535, this parameter does not apply. †All typical values are at VCC = 5 V. ‡This parameter is characterized, but not production tested. §Not more than one output should be tested at a time, and the duration of the test should not exceed one second. ¶This is the increase in supply current for each input that is at the specified TTL voltage level rather than VCC or GND. POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 5

SN54ABT2244A, SN74ABT2244A OCTAL BUFFERS AND LINE/MOS DRIVERS WITH 3-STATE OUTPUTS SCBS106E – JANUARY 1991 – REVISED MAY 1997 switching characteristics over recommended ranges of supply voltage and operating free-air temperature, C = 50 pF (unless otherwise noted) (see Figure 1) L SN54ABT2244A FROM TO VCC = 5 V, PARAMETER (INPUT) (OUTPUT) TA = 25°C MIN MAX UNIT MIN TYP MAX tPLH 1 3.4 4.4 1 5.3 AA YY nnss tPHL 1 4.5 6.3 1 6.8 tPZH 1.1 3.8 5.5 1.1 6.5 OOEE YY nnss tPZL 2.1 6.3 9 2.1 10.2 tPHZ 2.1 4.5 6.9 2.1 7 OOEE YY nnss tPLZ 1.7 4.3 6.9 1.7 7.4 switching characteristics over recommended ranges of supply voltage and operating free-air temperature, C = 50 pF (unless otherwise noted) (see Figure 1) L SN74ABT2244A FROM TO VCC = 5 V, PARAMETER (INPUT) (OUTPUT) TA = 25°C MIN MAX UNIT MIN TYP MAX tPLH 1 3.4 4.3 1 4.7 AA YY nnss tPHL 1 4.5 5.3 1 5.6 tPZH 1.1 3.8 4.8 1.1 5.5 OOEE YY nnss tPZL 2.1 6.3 7.3 2.1 8.3 tPHZ 2.1 4.5 5.6 2.1 6.6 OOEE YY nnss tPLZ 1.7 4.3 5.3 1.7 5.8 6 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

SN54ABT2244A, SN74ABT2244A OCTAL BUFFERS AND LINE/MOS DRIVERS WITH 3-STATE OUTPUTS SCBS106E – JANUARY 1991 – REVISED MAY 1997 PARAMETER MEASUREMENT INFORMATION 7 V TEST S1 500 W S1 Open From Output tPLH/tPHL Open Under Test GND tPLZ/tPZL 7 V CL = 50 pF 500 W tPHZ/tPZH Open (see Note A) 3 V LOAD CIRCUIT Timing Input 1.5 V 0 V tw tsu th 3 V 3 V Input 1.5 V 1.5 V Data Input 1.5 V 1.5 V 0 V 0 V VOLTAGE WAVEFORMS VOLTAGE WAVEFORMS PULSE DURATION SETUP AND HOLD TIMES 3 V 3 V Output Input 1.5 V 1.5 V 1.5 V 1.5 V Control 0 V 0 V tPZL tPLH tPHL VOH Output tPLZ 3.5 V Output 1.5 V 1.5 V VOL WavSe1f oatr m7 V1 1.5 V VOL + 0.3 V VOL (see Note B) tPHZ tPHL tPLH tPZH Output VOH VOH Output 1.5 V 1.5 V WSa1v aetf oOrpme n2 1.5 V VOH – 0.3 V VOL (see Note B) ≈ 0 V VOLTAGE WAVEFORMS VOLTAGE WAVEFORMS PROPAGATION DELAY TIMES ENABLE AND DISABLE TIMES INVERTING AND NONINVERTING OUTPUTS LOW- AND HIGH-LEVEL ENABLING NOTES: A. CL includes probe and jig capacitance. B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control. Waveform2 is for an output with internal conditions such that the output is high except when disabled by the output control. C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 W , tr ≤ 2.5 ns, tf≤ 2.5 ns. D. The outputs are measured one at a time with one transition per measurement. Figure 1. Load Circuit and Voltage Waveforms POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 7

PACKAGE OPTION ADDENDUM www.ti.com 6-Feb-2020 PACKAGING INFORMATION Orderable Device Status Package Type Package Pins Package Eco Plan Lead/Ball Finish MSL Peak Temp Op Temp (°C) Device Marking Samples (1) Drawing Qty (2) (6) (3) (4/5) SN74ABT2244ADBR ACTIVE SSOP DB 20 2000 Green (RoHS NIPDAU Level-1-260C-UNLIM -40 to 85 AA244A & no Sb/Br) SN74ABT2244ADBRG4 ACTIVE SSOP DB 20 2000 Green (RoHS NIPDAU Level-1-260C-UNLIM -40 to 85 AA244A & no Sb/Br) SN74ABT2244ADW ACTIVE SOIC DW 20 25 Green (RoHS NIPDAU Level-1-260C-UNLIM -40 to 85 ABT2244A & no Sb/Br) SN74ABT2244ADWR ACTIVE SOIC DW 20 2000 Green (RoHS NIPDAU Level-1-260C-UNLIM -40 to 85 ABT2244A & no Sb/Br) SN74ABT2244ADWRE4 ACTIVE SOIC DW 20 2000 Green (RoHS NIPDAU Level-1-260C-UNLIM -40 to 85 ABT2244A & no Sb/Br) SN74ABT2244AN ACTIVE PDIP N 20 20 Pb-Free NIPDAU N / A for Pkg Type -40 to 85 SN74ABT2244AN (RoHS) SN74ABT2244ANSR ACTIVE SO NS 20 2000 Green (RoHS NIPDAU Level-1-260C-UNLIM -40 to 85 ABT2244A & no Sb/Br) SN74ABT2244ANSRE4 ACTIVE SO NS 20 2000 Green (RoHS NIPDAU Level-1-260C-UNLIM -40 to 85 ABT2244A & no Sb/Br) SN74ABT2244APW ACTIVE TSSOP PW 20 70 Green (RoHS NIPDAU Level-1-260C-UNLIM -40 to 85 AA244A & no Sb/Br) SN74ABT2244APWR ACTIVE TSSOP PW 20 2000 Green (RoHS NIPDAU Level-1-260C-UNLIM -40 to 85 AA244A & no Sb/Br) (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based flame retardants must also meet the <=1000ppm threshold requirement. (3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature. Addendum-Page 1

PACKAGE OPTION ADDENDUM www.ti.com 6-Feb-2020 (4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device. (5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation of the previous line and the two combined represent the entire Device Marking for that device. (6) Lead/Ball Finish - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead/Ball Finish values may wrap to two lines if the finish value exceeds the maximum column width. Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release. In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis. Addendum-Page 2

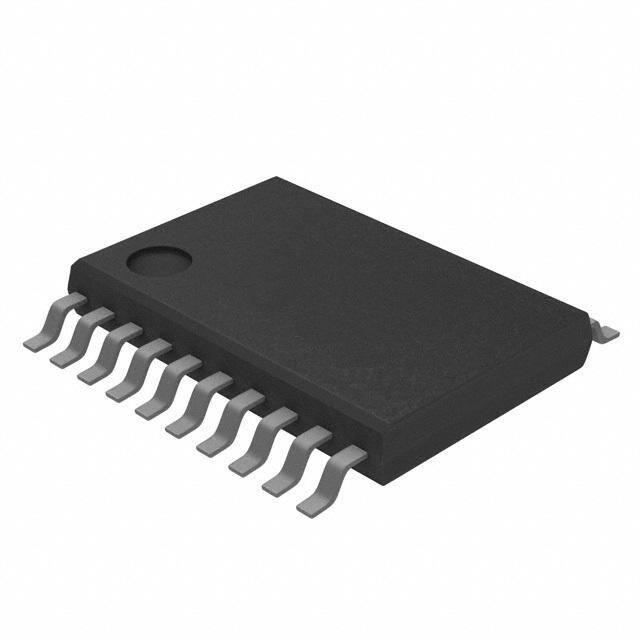

PACKAGE MATERIALS INFORMATION www.ti.com 2-Oct-2019 TAPE AND REEL INFORMATION *Alldimensionsarenominal Device Package Package Pins SPQ Reel Reel A0 B0 K0 P1 W Pin1 Type Drawing Diameter Width (mm) (mm) (mm) (mm) (mm) Quadrant (mm) W1(mm) SN74ABT2244ADBR SSOP DB 20 2000 330.0 16.4 8.2 7.5 2.5 12.0 16.0 Q1 SN74ABT2244ADWR SOIC DW 20 2000 330.0 24.4 10.8 13.3 2.7 12.0 24.0 Q1 SN74ABT2244ANSR SO NS 20 2000 330.0 24.4 8.4 13.0 2.5 12.0 24.0 Q1 SN74ABT2244APWR TSSOP PW 20 2000 330.0 16.4 6.95 7.0 1.4 8.0 16.0 Q1 PackMaterials-Page1

PACKAGE MATERIALS INFORMATION www.ti.com 2-Oct-2019 *Alldimensionsarenominal Device PackageType PackageDrawing Pins SPQ Length(mm) Width(mm) Height(mm) SN74ABT2244ADBR SSOP DB 20 2000 367.0 367.0 38.0 SN74ABT2244ADWR SOIC DW 20 2000 367.0 367.0 45.0 SN74ABT2244ANSR SO NS 20 2000 367.0 367.0 45.0 SN74ABT2244APWR TSSOP PW 20 2000 367.0 367.0 38.0 PackMaterials-Page2

PACKAGE OUTLINE DB0020A SSOP - 2 mm max height SCALE 2.000 SMALL OUTLINE PACKAGE C 8.2 TYP 7.4 A 0.1 C PIN 1 INDEX AREA SEATING PLANE 18X 0.65 20 1 2X 7.5 5.85 6.9 NOTE 3 10 11 0.38 20X 0.22 5.6 B 0.1 C A B 5.0 NOTE 4 2 MAX (0.15) TYP 0.25 SEE DETAIL A GAGE PLANE 0 -8 0.95 0.05 MIN 0.55 DETA 15AIL A TYPICAL 4214851/B 08/2019 NOTES: 1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing per ASME Y14.5M. 2. This drawing is subject to change without notice. 3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not exceed 0.15 mm per side. 4. This dimension does not include interlead flash. Interlead flash shall not exceed 0.25 mm per side. 5. Reference JEDEC registration MO-150. www.ti.com

EXAMPLE BOARD LAYOUT DB0020A SSOP - 2 mm max height SMALL OUTLINE PACKAGE 20X (1.85) SYMM (R0.05) TYP 1 20X (0.45) 20 SYMM 18X (0.65) 10 11 (7) LAND PATTERN EXAMPLE EXPOSED METAL SHOWN SCALE: 10X SOLDER MASK METAL METAL UNDER SOLDER MASK OPENING SOLDER MASK OPENING EXPOSED METAL EXPOSED METAL 0.07 MAX 0.07 MIN ALL AROUND ALL AROUND NON-SOLDER MASK SOLDER MASK DEFINED DEFINED (PREFERRED) SOLDE15.000 R MASK DETAILS 4214851/B 08/2019 NOTES: (continued) 6. Publication IPC-7351 may have alternate designs. 7. Solder mask tolerances between and around signal pads can vary based on board fabrication site. www.ti.com

EXAMPLE STENCIL DESIGN DB0020A SSOP - 2 mm max height SMALL OUTLINE PACKAGE 20X (1.85) SYMM (R0.05) TYP 1 20X (0.45) 20 SYMM 18X (0.65) 10 11 (7) SOLDER PASTE EXAMPLE BASED ON 0.125 mm THICK STENCIL SCALE: 10X 4214851/B 08/2019 NOTES: (continued) 8. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate design recommendations. 9. Board assembly site may have different recommendations for stencil design. www.ti.com

None

None

None

None

PACKAGE OUTLINE DW0020A SOIC - 2.65 mm max height SCALE 1.200 SOIC C 10.63 SEATING PLANE TYP 9.97 A PIN 1 ID 0.1 C AREA 18X 1.27 20 1 13.0 2X 12.6 11.43 NOTE 3 10 11 0.51 20X 7.6 0.31 2.65 MAX B 7.4 0.25 C A B NOTE 4 0.33 TYP 0.10 0.25 SEE DETAIL A GAGE PLANE 0.3 1.27 0 - 8 0.1 0.40 DETAIL A TYPICAL 4220724/A 05/2016 NOTES: 1. All linear dimensions are in millimeters. Dimensions in parenthesis are for reference only. Dimensioning and tolerancing per ASME Y14.5M. 2. This drawing is subject to change without notice. 3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not exceed 0.15 mm per side. 4. This dimension does not include interlead flash. Interlead flash shall not exceed 0.43 mm per side. 5. Reference JEDEC registration MS-013. www.ti.com

EXAMPLE BOARD LAYOUT DW0020A SOIC - 2.65 mm max height SOIC 20X (2) SYMM 1 20 20X (0.6) 18X (1.27) SYMM (R0.05) TYP 10 11 (9.3) LAND PATTERN EXAMPLE SCALE:6X SOOPLEDNEINRG MASK METAL MSOELTDAEL RU NMDAESRK SOOPLEDNEINRG MASK 0.07 MAX 0.07 MIN ALL AROUND ALL AROUND NON SOLDER MASK SOLDER MASK DEFINED DEFINED SOLDER MASK DETAILS 4220724/A 05/2016 NOTES: (continued) 6. Publication IPC-7351 may have alternate designs. 7. Solder mask tolerances between and around signal pads can vary based on board fabrication site. www.ti.com

EXAMPLE STENCIL DESIGN DW0020A SOIC - 2.65 mm max height SOIC 20X (2) SYMM 1 20 20X (0.6) 18X (1.27) SYMM 10 11 (9.3) SOLDER PASTE EXAMPLE BASED ON 0.125 mm THICK STENCIL SCALE:6X 4220724/A 05/2016 NOTES: (continued) 8. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate design recommendations. 9. Board assembly site may have different recommendations for stencil design. www.ti.com
