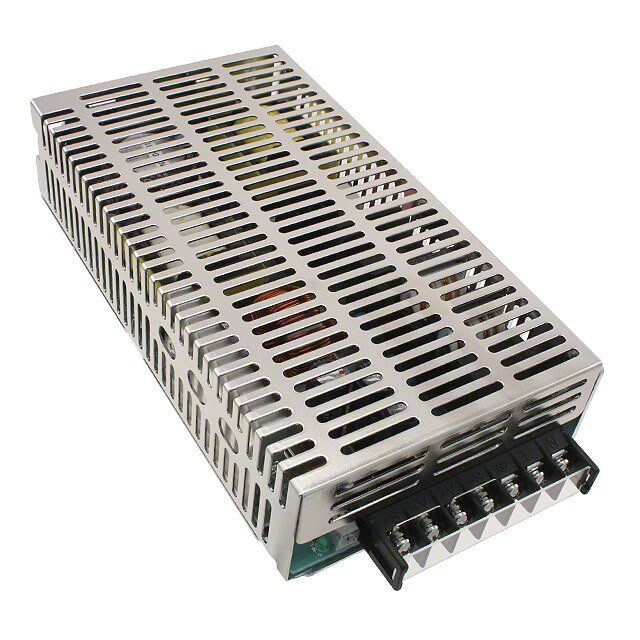

SSPPNN115500 115500 WWAATTTT ,, UUnniivveerrssaall IInnppuutt FFuullllyy EEnncclloosseedd SSwwiittcchhiinngg PPoowweerr SSuuppppllyy EEEELLLLEEEECCCCTTTTRRRRIIIICCCCAAAALLLL SSSSPPPPEEEECCCCIIIIFFFFIIIICCCCAAAATTTTIIIIOOOONNNNSSSS All specifications are typical at nominal input, full load. IIIINNNNPPPPUUUUTTTT SSSSPPPPEEEECCCCIIIIFFFFIIIICCCCAAAATTTTIIIIOOOONNNNSSSS Input Voltage.............................................. AC 85-264V Input Frequency..........................................47 ~ 63 Hz Input Current.............................................. 1.00 ~ 1.3ATyp Inrush Current (100/230VAC cold start) .................13A~ 31 Typ Power Factor...............................................99 OOOOUUUUTTTTPPPPUUUUTTTT SSSSPPPPEEEECCCCIIIIFFFFIIIICCCCAAAATTTTIIIIOOOONNNNSSSS Output Voltage........................................... See Chart Output Adjustment.................................... ±10% Efficiency.................................................... 78 ~ 87% Over-Voltage Protection..............................115 - 150% Manual Reset FEATURES Over-Current Protection..............................Automatic Recovery (105% min) Ripple and Noise........................................ 100 mVp-p max. REMOTE SENSE Hold-Up Time............................................. 50 mS Line/Load Regulation..................................See Chart POWER FACTOR CORRECTED Rise Time....................................................470 - 1600 mS UNIVERSALINPUT (AC85-264V) Leakage Current (100/230VAC)........................Vin= 100V 0.5mAmax. OVERVOLTAGE PROTECTION Vin= 230V 0.75mAmax. OVERCURRENT PROTECTION GGGGEEEENNNNEEEERRRRAAAALLLL SSSSPPPPEEEECCCCIIIIFFFFIIIICCCCAAAATTTTIIIIOOOONNNNSSSS LIGHTWEIGHT CONSTRUCTION MTBF .........................................................>120,000 Hours Isolation Voltage METALCHASSIS WITH COVER Primary to Secondary............... 3000VAC Primary to Case........................ 1500VAC. COMPACT, LOW-PROFILE PACKAGES Secondary to Case.................... 500VAC. Isolation Resistance....................................100 M-Ohms min. 3 YEAR WARRANTY EEEENNNNVVVVIIIIRRRROOOONNNNMMMMEEEENNNNTTTTAAAALLLL SSSSPPPPEEEECCCCIIIIFFFFIIIICCCCAAAATTTTIIIIOOOONNNNSSSS Operating Temperature ..............................0˚C~+60˚C Derates Linearly 2.5%/˚C After 50˚C Cooling........................................................Convection SSSSAAAAFFFFEEEETTTTIIIIEEEESSSS //// EEEEMMMMIIII Temperature Coefficient..............................0.02% / ˚C Humidity.......................................................20-85% Rh (non-condensing) FCC-B Storage Temperature..................................-20˚C ~ +85˚C EN 55022-B Shock Vibration.......................................... Shock: 20G (3 directions each 3 times) Vibration: 10 ~ 55Hz VCCI-II PPPPHHHHYYYYSSSSIIIICCCCAAAALLLL SSSSPPPPEEEECCCCIIIIFFFFIIIICCCCAAAATTTTIIIIOOOONNNNSSSS Metal Enclosed Power Supply with Terminal Strip 74

SSeerriieess MODEL OUTPUT VOLTAGE CURRENT EFFICIENCY LINE REGULATION LOAD REGULATION (mVmax) 85 ~ 264 VAC 100VAC 230VAC (MV) MAX (0~100% Load) SPN150-05S 5 VDC 30.0 A 78% 81% 10 mVmax 20 mVmax SPN150-12S 12 VDC 13.0 A 82% 86% 10 mVmax 20 mVmax SPN150-15S 15 VDC 10.0 A 83% 87% 10 mVmax 20 mVmax SPN150-24S 24 VDC 6.5 A 83% 87% 20 mVmax 40 mVmax SPN150-48S 48 VDC 3.3 A 83% 87% 20 mVmax 40 mVmax SPN150 0.787 7.717 LED (20max) (196 ±1) V. ADJ. 0.610 6.732 I/O TERMINAL M4 (15.5) (171 ±0.5) 2-No. 8-32UNC (MOUNTING HOLES) BOTTOM + S + V 4.213(107±1) --VS 3.484 (88.5 ±0.5) A/C L 3358.5) 0.( IN N 1.772 (45 ±1) 2-No. 8-32UNC (MOUNTING HOLES) NOTE: *MOUNTING SCREWS NOT TO EXCEED MAX. PENETRATION OF 6mm. *REMOVE SHORT BAR BETWEEN *(WT+OSHL)E EANRN UADNS (EC+ EVR )E± ,1M (m-OSmT) .EA NSDE N(-SVI)NG. INCH 0.827 (21) *ALL DIMENSIONS IN INCH (mm) 0.394 6.949 (10) (176.5 ±0.5) SPN 150 NOTE: • No. 8-32 mounting holes standard All specifications typical and nominal / full load and 25˚C unless otherwise noted. • Dimensions in mm Mounting screw lenght should not exceed 0.31 inches or 8 mm. • Terminal block or “pin” Avoid sustained operation in overload or dead short conditions. type connector available Specifications subject to changes without notice. 75
