Reference S pecification Leaded MLCC for Automotive with AEC-Q200 RCE Series Product specifications in this catalog are as of Dec. 2017, and are subject to change or obsolescence without notice. Please consult the approval sheet before ordering.Please read rating and Cautions first.

Reference only CAUTION 1. OPERATING VOLTAGE When DC-rated capacitors are to be used in AC or ripple current circuits, be sure to maintain the Vp-p value of the applied voltage or the Vo-p which contains DC bias within the rated voltage range. When the voltage is started to apply to the circuit or it is stopped applying, the irregular voltage may be generated for a transit period because of resonance or switching. Be sure to use a capacitor within rated voltage containing these irregular voltage. When DC-rated capacitors are to be used in input circuits from commercial power source (AC filter), be sure to use Safety Recognized Capacitors because various regulations on withstand voltage or impulse withstand established for each equipment should be taken into considerations. Voltage DC Voltage DC+AC Voltage AC Voltage Pulse Voltage(1) Pulse Voltage(2) Positional Measurement Vo-p Vo-p Vp-p Vp-p Vp-p 2. OPERATING TEMPERATURE AND SELF-GENERATED HEAT Keep the surface temperature of a capacitor below the upper limit of its rated operating temperature range. Be sure to take into account the heat generated by the capacitor itself. When the capacitor is used in a high-frequency current, pulse current or the like, it may have the self- generated heat due to dielectric-loss. In case of Class 2 capacitors (Temp.Char. : X7R,X7S,X8L, etc.), applied voltage should be the load such as self-generated heat is within 20 C on the condition of atmosphere temperature 25 C. Please contact us if self-generated heat is occurred with Class 1 capacitors (Temp.Char. : C0G,U2J,X8G, etc.). When measuring, use a thermocouple of small thermal capacity-K of 0.1mm and be in the condition where capacitor is not affected by radiant heat of other components and wind of surroundings. Excessive heat may lead to deterioration of the capacitor’s characteristics and reliability. 3. Fail-safe Be sure to provide an appropriate fail-safe function on your product to prevent a second damage that may be caused by the abnormal function or the failure of our product. 4. OPERATING AND STORAGE ENVIRONMENT The insulating coating of capacitors does not form a perfect seal; therefore, do not use or store capacitors in a corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are present. And avoid exposure to moisture. Before cleaning, bonding, or molding this product, verify that these processes do not affect product quality by testing the performance of a cleaned, bonded or molded product in the intended equipment. Store the capacitors where the temperature and relative humidity do not exceed 5 to 40 C and 20 to 70%. Use capacitors within 6 months. 5. VIBRATION AND IMPACT Do not expose a capacitor or its leads to excessive shock or vibration during use. 6. SOLDERING When soldering this product to a PCB/PWB, do not exceed the solder heat resistance specification of the capacitor. Subjecting this product to excessive heating could melt the internal junction solder and may result in thermal shocks that can crack the ceramic element. 7. BONDING AND RESIN MOLDING, RESIN COAT In case of bonding, molding or coating this product, verify that these processes do not affect the quality of capacitor by testing the performance of a bonded or molded product in the intended equipment. In case of the amount of applications, dryness / hardening conditions of adhesives and molding resins containing organic solvents (ethyl acetate, methyl ethyl ketone, toluene, etc.) are unsuitable, the outer coating resin of a capacitor is damaged by the organic solvents and it may result, worst case, in a short circuit. The variation in thickness of adhesive or molding resin may cause a outer coating resin cracking and/or ceramic element cracking of a capacitor in a temperature cycling. 8. TREATMENT AFTER BONDING AND RESIN MOLDING, RESIN COAT When the outer coating is hot (over 100 C) after soldering, it becomes soft and fragile. So please be careful not to give it mechanical stress. EGLEDMNO03 1 / 19

Reference only Failure to follow the above cautions may result, worst case, in a short circuit and cause fuming or partial dispersion when the product is used. 9. LIMITATION OF APPLICATIONS Please contact us before using our products for the applications listed below which require especially high reliability for the prevention of defects which might directly cause damage to the third party’s life, body or property. 1. Aircraft equipment 2. Aerospace equipment 3. Undersea equipment 4. Power plant control equipment 5. Medical equipment 6. Transportation equipment (vehicles, trains, ships, etc.) 7. Traffic signal equipment 8. Disaster prevention / crime prevention equipment 9. Data-processing equipment exerting influence on public 10. Application of similar complexity and/or reliability requirements to the applications listed in the above. NOTICE 1. CLEANING (ULTRASONIC CLEANING) To perform ultrasonic cleaning, observe the following conditions. Rinse bath capacity : Output of 20 watts per liter or less. Rinsing time : 5 min maximum. Do not vibrate the PCB/PWB directly. Excessive ultrasonic cleaning may lead to fatigue destruction of the lead wires. 2. Soldering and Mounting Insertion of the Lead Wire • When soldering, insert the lead wire into the PCB without mechanically stressing the lead wire. • Insert the lead wire into the PCB with a distance appropriate to the lead space. 3. CAPACITANCE CHANGE OF CAPACITORS • Class 2 capacitors (Temp.Char. : X7R,X7S,X8L, etc.) Class 2 capacitors an aging characteristic, whereby the capacitor continually decreases its capacitance slightly if the capacitor leaves for a long time. Moreover, capacitance might change greatly depending on a surrounding temperature or an applied voltage. So, it is not likely to be able to use for the time constant circuit. Please contact us if you need a detail information. NOTE 1. Please make sure that your product has been evaluated in view of your specifications with our product being mounted to your product. 2. You are requested not to use our product deviating from this specification. EGLEDMNO03 2 / 19

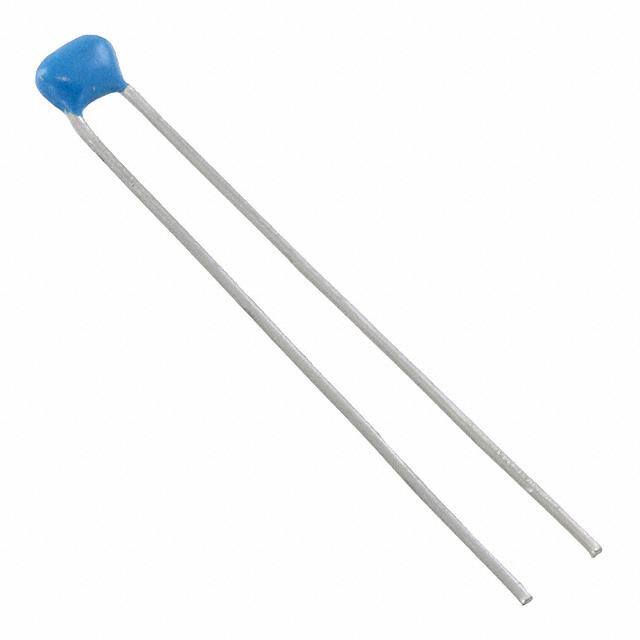

Reference only 1. Application This specification is applied to Leaded MLCC RCE series in accordance with AEC-Q200 requirements used for Automotive Electronic equipment. 2. Rating  Part number configuration ex.) RCE R7 1H 103 K 0 K1 H03 B Series Temperature Rated Capacitance Capacitance Dimension Lead Individual Packing Characteristic voltage tolerance code code specification style code code  Temperature characteristic Temp. Cap. Change Standard Operating Code Temp. Range Char. (Within%) Temp. Temp. Range R7 X7R +/-15 -55～125C 25C -55～125C C7 X7S +/-22  Rated voltage Code Rated voltage 1E DC25V 1H DC50V 2A DC100V  Capacitance The first two digits denote significant figures ; the last digit denotes the multiplier of 10 in pF. ex.) In case of 103. 10103 = 10000pF  Capacitance tolerance Code Capacitance Tolerance K +/-10% M +/-20%  Dimension code Code Dimensions (LxW) mm max. 0 3.6 x 3.5 1 4.0 x 3.5 2 5.5 x 4.0 3 5.5 x 5.0 W 5.5 x 7.5  Lead code Code Lead style Lead spacing (mm) A2 Straight type 2.5+/-0.8 DB Straight taping type 2.5+0.4/-0.2 K1 Inside crimp type 5.0+/-0.8 M1 Inside crimp taping type 5.0+0.6/-0.2 Lead wire is solder coated CP wire. ETRCE01D 3 / 19

Reference only  Individual specification code Murata’s control code Please refer to  Part number list .  Packing style code Code Packing style A Taping type of Ammo B Bulk type 3. Marking Temp. char. : Letter code : C (X7R/X7S Char. Except dimension code : 0,1) Capacitance : 3 digit numbers Capacitance tolerance : Code Rated voltage : Letter code : 2 (DC25V only.) Letter code : 5 (DC50V only. Except dimension code : 0,1) Letter code : 1 (DC100V only. Except dimension code : 0,1) Company name code : Abbreviation : (Except dimension code : 0,1) (Ex.) Rated voltage 25V 50V 100V Dimension code 0,1 105K 103K 104K 475 105 105 2 K2C K5C K1C 226 335 225 3,W M2C K5C K1C ETRCE01D 4 / 19

Reference only 4. Part number list Unit : mm DC Dimension (mm) Size Pack Rated Cap. Customer Part Number Murata Part Number T.C. Cap. Lead qty. Volt. tol. L W W1 F T Code (pcs) (V) RCER71E104K0A2H03B X7R 25 0.1µF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71E154K0A2H03B X7R 25 0.15µF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71E224K0A2H03B X7R 25 0.22µF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71E334K1A2H03B X7R 25 0.33µF ±10% 4.0 3.5 - 2.5 2.5 1A2 500 RCER71E474K1A2H03B X7R 25 0.47µF ±10% 4.0 3.5 - 2.5 2.5 1A2 500 RCER71E684K1A2H03B X7R 25 0.68µF ±10% 4.0 3.5 - 2.5 2.5 1A2 500 RCER71E105K1A2H03B X7R 25 1.0µF ±10% 4.0 3.5 - 2.5 2.5 1A2 500 RCER71E155K2A2H03B X7R 25 1.5µF ±10% 5.5 4.0 - 2.5 3.15 2A2 500 RCER71E225K2A2H03B X7R 25 2.2µF ±10% 5.5 4.0 - 2.5 3.15 2A2 500 RCER71E335K2A2H03B X7R 25 3.3µF ±10% 5.5 4.0 - 2.5 3.15 2A2 500 RCER71E475K2A2H03B X7R 25 4.7µF ±10% 5.5 4.0 - 2.5 3.15 2A2 500 RCER71E106K3A2H03B X7R 25 10µF ±10% 5.5 5.0 - 2.5 4.0 3A2 500 RCER71H221K0A2H03B X7R 50 220pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71H331K0A2H03B X7R 50 330pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71H471K0A2H03B X7R 50 470pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71H681K0A2H03B X7R 50 680pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71H102K0A2H03B X7R 50 1000pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71H152K0A2H03B X7R 50 1500pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71H222K0A2H03B X7R 50 2200pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71H332K0A2H03B X7R 50 3300pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71H472K0A2H03B X7R 50 4700pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71H682K0A2H03B X7R 50 6800pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71H103K0A2H03B X7R 50 10000pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71H153K0A2H03B X7R 50 15000pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71H223K0A2H03B X7R 50 22000pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71H333K0A2H03B X7R 50 33000pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71H473K0A2H03B X7R 50 47000pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71H683K0A2H03B X7R 50 68000pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71H104K0A2H03B X7R 50 0.1µF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER71H154K1A2H03B X7R 50 0.15µF ±10% 4.0 3.5 - 2.5 2.5 1A2 500 RCER71H224K1A2H03B X7R 50 0.22µF ±10% 4.0 3.5 - 2.5 2.5 1A2 500 RCER71H334K1A2H03B X7R 50 0.33µF ±10% 4.0 3.5 - 2.5 2.5 1A2 500 RCER71H474K1A2H03B X7R 50 0.47µF ±10% 4.0 3.5 - 2.5 2.5 1A2 500 RCER71H684K2A2H03B X7R 50 0.68µF ±10% 5.5 4.0 - 2.5 3.15 2A2 500 RCEC71H105K1A2H03B X7S 50 1.0µF ±10% 4.0 3.5 - 2.5 2.5 1A2 500 RCER71H105K2A2H03B X7R 50 1.0µF ±10% 5.5 4.0 - 2.5 3.15 2A2 500 RCER71H155K2A2H03B X7R 50 1.5µF ±10% 5.5 4.0 - 2.5 3.15 2A2 500 RCER71H225K2A2H03B X7R 50 2.2µF ±10% 5.5 4.0 - 2.5 3.15 2A2 500 RCER71H335K3A2H03B X7R 50 3.3µF ±10% 5.5 5.0 - 2.5 4.0 3A2 500 5 / 19

Reference only Unit : mm DC Dimension (mm) Size Pack Rated Cap. Customer Part Number Murata Part Number T.C. Cap. Lead qty. Volt. tol. L W W1 F T Code (pcs) (V) RCEC71H475K2A2H03B X7S 50 4.7µF ±10% 5.5 4.0 - 2.5 3.15 2A2 500 RCER71H475K3A2H03B X7R 50 4.7µF ±10% 5.5 5.0 - 2.5 4.0 3A2 500 RCEC71H106K3A2H03B X7S 50 10µF ±10% 5.5 5.0 - 2.5 4.0 3A2 500 RCER72A221K0A2H03B X7R 100 220pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER72A331K0A2H03B X7R 100 330pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER72A471K0A2H03B X7R 100 470pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER72A681K0A2H03B X7R 100 680pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER72A102K0A2H03B X7R 100 1000pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER72A152K0A2H03B X7R 100 1500pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER72A222K0A2H03B X7R 100 2200pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER72A332K0A2H03B X7R 100 3300pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER72A472K0A2H03B X7R 100 4700pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER72A682K0A2H03B X7R 100 6800pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER72A103K0A2H03B X7R 100 10000pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER72A153K0A2H03B X7R 100 15000pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER72A223K0A2H03B X7R 100 22000pF ±10% 3.6 3.5 - 2.5 2.5 0A2 500 RCER72A333K1A2H03B X7R 100 33000pF ±10% 4.0 3.5 - 2.5 2.5 1A2 500 RCER72A473K1A2H03B X7R 100 47000pF ±10% 4.0 3.5 - 2.5 2.5 1A2 500 RCER72A683K1A2H03B X7R 100 68000pF ±10% 4.0 3.5 - 2.5 2.5 1A2 500 RCER72A104K1A2H03B X7R 100 0.1µF ±10% 4.0 3.5 - 2.5 2.5 1A2 500 RCER72A154K2A2H03B X7R 100 0.15µF ±10% 5.5 4.0 - 2.5 3.15 2A2 500 RCER72A224K2A2H03B X7R 100 0.22µF ±10% 5.5 4.0 - 2.5 3.15 2A2 500 RCER72A334K1A2H03B X7R 100 0.33µF ±10% 4.0 3.5 - 2.5 2.5 1A2 500 RCER72A474K2A2H03B X7R 100 0.47µF ±10% 5.5 4.0 - 2.5 3.15 2A2 500 RCER72A684K2A2H03B X7R 100 0.68µF ±10% 5.5 4.0 - 2.5 3.15 2A2 500 RCER72A105K2A2H03B X7R 100 1.0µF ±10% 5.5 4.0 - 2.5 3.15 2A2 500 RCEC72A155K3A2H03B X7S 100 1.5µF ±10% 5.5 5.0 - 2.5 4.0 3A2 500 RCEC72A225K3A2H03B X7S 100 2.2µF ±10% 5.5 5.0 - 2.5 4.0 3A2 500 RCER71E104K0K1H03B X7R 25 0.1µF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71E154K0K1H03B X7R 25 0.15µF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71E224K0K1H03B X7R 25 0.22µF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71E334K1K1H03B X7R 25 0.33µF ±10% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCER71E474K1K1H03B X7R 25 0.47µF ±10% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCER71E684K1K1H03B X7R 25 0.68µF ±10% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCER71E105K1K1H03B X7R 25 1.0µF ±10% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCER71E155K2K1H03B X7R 25 1.5µF ±10% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCER71E225K2K1H03B X7R 25 2.2µF ±10% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCER71E335K2K1H03B X7R 25 3.3µF ±10% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCER71E475K2K1H03B X7R 25 4.7µF ±10% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCER71E106K3K1H03B X7R 25 10µF ±10% 5.5 5.0 7.5 5.0 4.0 3K1 500 RCER71E226MWK1H03B X7R 25 22µF ±20% 5.5 7.5 10.0 5.0 4.0 WK1 500 6 / 19

Reference only Unit : mm DC Dimension (mm) Size Pack Rated Cap. Customer Part Number Murata Part Number T.C. Cap. Lead qty. Volt. tol. L W W1 F T Code (pcs) (V) RCER71H221K0K1H03B X7R 50 220pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71H331K0K1H03B X7R 50 330pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71H471K0K1H03B X7R 50 470pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71H681K0K1H03B X7R 50 680pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71H102K0K1H03B X7R 50 1000pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71H152K0K1H03B X7R 50 1500pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71H222K0K1H03B X7R 50 2200pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71H332K0K1H03B X7R 50 3300pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71H472K0K1H03B X7R 50 4700pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71H682K0K1H03B X7R 50 6800pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71H103K0K1H03B X7R 50 10000pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71H153K0K1H03B X7R 50 15000pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71H223K0K1H03B X7R 50 22000pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71H333K0K1H03B X7R 50 33000pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71H473K0K1H03B X7R 50 47000pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71H683K0K1H03B X7R 50 68000pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71H104K0K1H03B X7R 50 0.1µF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER71H154K1K1H03B X7R 50 0.15µF ±10% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCER71H224K1K1H03B X7R 50 0.22µF ±10% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCER71H334K1K1H03B X7R 50 0.33µF ±10% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCER71H474K1K1H03B X7R 50 0.47µF ±10% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCER71H684K2K1H03B X7R 50 0.68µF ±10% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCEC71H105K1K1H03B X7S 50 1.0µF ±10% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCER71H105K2K1H03B X7R 50 1.0µF ±10% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCER71H155K2K1H03B X7R 50 1.5µF ±10% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCER71H225K2K1H03B X7R 50 2.2µF ±10% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCER71H335K3K1H03B X7R 50 3.3µF ±10% 5.5 5.0 7.5 5.0 4.0 3K1 500 RCEC71H475K2K1H03B X7S 50 4.7µF ±10% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCER71H475K3K1H03B X7R 50 4.7µF ±10% 5.5 5.0 7.5 5.0 4.0 3K1 500 RCEC71H106K3K1H03B X7S 50 10µF ±10% 5.5 5.0 7.5 5.0 4.0 3K1 500 RCER71H106MWK1H03B X7R 50 10µF ±20% 5.5 7.5 10.0 5.0 4.0 WK1 500 RCEC71H226MWK1H03B X7S 50 22µF ±20% 5.5 7.5 10.0 5.0 4.0 WK1 500 RCER72A221K0K1H03B X7R 100 220pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER72A331K0K1H03B X7R 100 330pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER72A471K0K1H03B X7R 100 470pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER72A681K0K1H03B X7R 100 680pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER72A102K0K1H03B X7R 100 1000pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER72A152K0K1H03B X7R 100 1500pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER72A222K0K1H03B X7R 100 2200pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER72A332K0K1H03B X7R 100 3300pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 7 / 19

Reference only Unit : mm DC Dimension (mm) Size Pack Rated Cap. Customer Part Number Murata Part Number T.C. Cap. Lead qty. Volt. tol. L W W1 F T Code (pcs) (V) RCER72A472K0K1H03B X7R 100 4700pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER72A682K0K1H03B X7R 100 6800pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER72A103K0K1H03B X7R 100 10000pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER72A153K0K1H03B X7R 100 15000pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER72A223K0K1H03B X7R 100 22000pF ±10% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCER72A333K1K1H03B X7R 100 33000pF ±10% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCER72A473K1K1H03B X7R 100 47000pF ±10% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCER72A683K1K1H03B X7R 100 68000pF ±10% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCER72A104K1K1H03B X7R 100 0.1µF ±10% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCER72A154K2K1H03B X7R 100 0.15µF ±10% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCER72A224K2K1H03B X7R 100 0.22µF ±10% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCER72A334K1K1H03B X7R 100 0.33µF ±10% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCER72A474K2K1H03B X7R 100 0.47µF ±10% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCER72A684K2K1H03B X7R 100 0.68µF ±10% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCER72A105K2K1H03B X7R 100 1.0µF ±10% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCEC72A155K3K1H03B X7S 100 1.5µF ±10% 5.5 5.0 7.5 5.0 4.0 3K1 500 RCEC72A225K3K1H03B X7S 100 2.2µF ±10% 5.5 5.0 7.5 5.0 4.0 3K1 500 RCEC72A475MWK1H03B X7S 100 4.7µF ±20% 5.5 7.5 10.0 5.0 4.0 WK1 500 8 / 19

Reference only Unit : mm DC Dimension (mm) Size Pack Rated Customer Part Number Murata Part Number T.C. Cap. Cap. tol. Lead qty. volt. L W W1 F T H0 Code (pcs) (V) RCER71E104K0DBH03A X7R 25 0.1µF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71E154K0DBH03A X7R 25 0.15µF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71E224K0DBH03A X7R 25 0.22µF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71E334K1DBH03A X7R 25 0.33µF ±10% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCER71E474K1DBH03A X7R 25 0.47µF ±10% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCER71E684K1DBH03A X7R 25 0.68µF ±10% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCER71E105K1DBH03A X7R 25 1.0µF ±10% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCER71E155K2DBH03A X7R 25 1.5µF ±10% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCER71E225K2DBH03A X7R 25 2.2µF ±10% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCER71E335K2DBH03A X7R 25 3.3µF ±10% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCER71E475K2DBH03A X7R 25 4.7µF ±10% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCER71E106K3DBH03A X7R 25 10µF ±10% 5.5 5.0 - 2.5 4.0 16.0 3DB 1500 RCER71H221K0DBH03A X7R 50 220pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71H331K0DBH03A X7R 50 330pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71H471K0DBH03A X7R 50 470pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71H681K0DBH03A X7R 50 680pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71H102K0DBH03A X7R 50 1000pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71H152K0DBH03A X7R 50 1500pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71H222K0DBH03A X7R 50 2200pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71H332K0DBH03A X7R 50 3300pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71H472K0DBH03A X7R 50 4700pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71H682K0DBH03A X7R 50 6800pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71H103K0DBH03A X7R 50 10000pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71H153K0DBH03A X7R 50 15000pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71H223K0DBH03A X7R 50 22000pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71H333K0DBH03A X7R 50 33000pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71H473K0DBH03A X7R 50 47000pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71H683K0DBH03A X7R 50 68000pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71H104K0DBH03A X7R 50 0.1µF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER71H154K1DBH03A X7R 50 0.15µF ±10% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCER71H224K1DBH03A X7R 50 0.22µF ±10% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCER71H334K1DBH03A X7R 50 0.33µF ±10% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCER71H474K1DBH03A X7R 50 0.47µF ±10% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCER71H684K2DBH03A X7R 50 0.68µF ±10% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCEC71H105K1DBH03A X7S 50 1.0µF ±10% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCER71H105K2DBH03A X7R 50 1.0µF ±10% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCER71H155K2DBH03A X7R 50 1.5µF ±10% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCER71H225K2DBH03A X7R 50 2.2µF ±10% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCER71H335K3DBH03A X7R 50 3.3µF ±10% 5.5 5.0 - 2.5 4.0 16.0 3DB 1500 RCER71H475K3DBH03A X7R 50 4.7µF ±10% 5.5 5.0 - 2.5 4.0 16.0 3DB 1500 9 / 19

Reference only Unit : mm DC Dimension (mm) Size Pack Rated Customer Part Number Murata Part Number T.C. Cap. Cap. tol. Lead qty. volt. L W W1 F T H0 Code (pcs) (V) RCEC71H475K2DBH03A X7S 50 4.7µF ±10% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCEC71H106K3DBH03A X7S 50 10µF ±10% 5.5 5.0 - 2.5 4.0 16.0 3DB 1500 RCER72A221K0DBH03A X7R 100 220pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER72A331K0DBH03A X7R 100 330pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER72A471K0DBH03A X7R 100 470pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER72A681K0DBH03A X7R 100 680pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER72A102K0DBH03A X7R 100 1000pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER72A152K0DBH03A X7R 100 1500pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER72A222K0DBH03A X7R 100 2200pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER72A332K0DBH03A X7R 100 3300pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER72A472K0DBH03A X7R 100 4700pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER72A682K0DBH03A X7R 100 6800pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER72A103K0DBH03A X7R 100 10000pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER72A153K0DBH03A X7R 100 15000pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER72A223K0DBH03A X7R 100 22000pF ±10% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCER72A333K1DBH03A X7R 100 33000pF ±10% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCER72A473K1DBH03A X7R 100 47000pF ±10% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCER72A683K1DBH03A X7R 100 68000pF ±10% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCER72A104K1DBH03A X7R 100 0.1µF ±10% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCER72A154K2DBH03A X7R 100 0.15µF ±10% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCER72A224K2DBH03A X7R 100 0.22µF ±10% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCER72A334K1DBH03A X7R 100 0.33µF ±10% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCER72A474K2DBH03A X7R 100 0.47µF ±10% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCER72A684K2DBH03A X7R 100 0.68µF ±10% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCER72A105K2DBH03A X7R 100 1.0µF ±10% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCEC72A155K3DBH03A X7S 100 1.5µF ±10% 5.5 5.0 - 2.5 4.0 16.0 3DB 1500 RCEC72A225K3DBH03A X7S 100 2.2µF ±10% 5.5 5.0 - 2.5 4.0 16.0 3DB 1500 RCER71E104K0M1H03A X7R 25 0.1µF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71E154K0M1H03A X7R 25 0.15µF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71E224K0M1H03A X7R 25 0.22µF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71E334K1M1H03A X7R 25 0.33µF ±10% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCER71E474K1M1H03A X7R 25 0.47µF ±10% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCER71E684K1M1H03A X7R 25 0.68µF ±10% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCER71E105K1M1H03A X7R 25 1.0µF ±10% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCER71E155K2M1H03A X7R 25 1.5µF ±10% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCER71E225K2M1H03A X7R 25 2.2µF ±10% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCER71E335K2M1H03A X7R 25 3.3µF ±10% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCER71E475K2M1H03A X7R 25 4.7µF ±10% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCER71E106K3M1H03A X7R 25 10µF ±10% 5.5 5.0 7.5 5.0 4.0 16.0 3M1 1500 RCER71E226MWM1H03A X7R 25 22µF ±20% 5.5 7.5 10.0 5.0 4.0 16.0 WM1 1500 10 / 19

Reference only Unit : mm DC Dimension (mm) Size Pack Rated Customer Part Number Murata Part Number T.C. Cap. Cap. tol. Lead qty. volt. L W W1 F T H0 Code (pcs) (V) RCER71H221K0M1H03A X7R 50 220pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71H331K0M1H03A X7R 50 330pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71H471K0M1H03A X7R 50 470pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71H681K0M1H03A X7R 50 680pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71H102K0M1H03A X7R 50 1000pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71H152K0M1H03A X7R 50 1500pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71H222K0M1H03A X7R 50 2200pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71H332K0M1H03A X7R 50 3300pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71H472K0M1H03A X7R 50 4700pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71H682K0M1H03A X7R 50 6800pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71H103K0M1H03A X7R 50 10000pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71H153K0M1H03A X7R 50 15000pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71H223K0M1H03A X7R 50 22000pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71H333K0M1H03A X7R 50 33000pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71H473K0M1H03A X7R 50 47000pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71H683K0M1H03A X7R 50 68000pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71H104K0M1H03A X7R 50 0.1µF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER71H154K1M1H03A X7R 50 0.15µF ±10% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCER71H224K1M1H03A X7R 50 0.22µF ±10% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCER71H334K1M1H03A X7R 50 0.33µF ±10% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCER71H474K1M1H03A X7R 50 0.47µF ±10% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCER71H684K2M1H03A X7R 50 0.68µF ±10% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCEC71H105K1M1H03A X7S 50 1.0µF ±10% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCER71H105K2M1H03A X7R 50 1.0µF ±10% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCER71H155K2M1H03A X7R 50 1.5µF ±10% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCER71H225K2M1H03A X7R 50 2.2µF ±10% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCER71H335K3M1H03A X7R 50 3.3µF ±10% 5.5 5.0 7.5 5.0 4.0 16.0 3M1 1500 RCEC71H475K2M1H03A X7S 50 4.7µF ±10% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCER71H475K3M1H03A X7R 50 4.7µF ±10% 5.5 5.0 7.5 5.0 4.0 16.0 3M1 1500 RCEC71H106K3M1H03A X7S 50 10µF ±10% 5.5 5.0 7.5 5.0 4.0 16.0 3M1 1500 RCER71H106MWM1H03A X7R 50 10µF ±20% 5.5 7.5 10.0 5.0 4.0 16.0 WM1 1500 RCEC71H226MWM1H03A X7S 50 22µF ±20% 5.5 7.5 10.0 5.0 4.0 16.0 WM1 1500 RCER72A221K0M1H03A X7R 100 220pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER72A331K0M1H03A X7R 100 330pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER72A471K0M1H03A X7R 100 470pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER72A681K0M1H03A X7R 100 680pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER72A102K0M1H03A X7R 100 1000pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER72A152K0M1H03A X7R 100 1500pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER72A222K0M1H03A X7R 100 2200pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER72A332K0M1H03A X7R 100 3300pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 11 / 19

Reference only Unit : mm DC Dimension (mm) Size Pack Rated Customer Part Number Murata Part Number T.C. Cap. Cap. tol. Lead qty. volt. L W W1 F T H0 Code (pcs) (V) RCER72A472K0M1H03A X7R 100 4700pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER72A682K0M1H03A X7R 100 6800pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER72A103K0M1H03A X7R 100 10000pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER72A153K0M1H03A X7R 100 15000pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER72A223K0M1H03A X7R 100 22000pF ±10% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCER72A333K1M1H03A X7R 100 33000pF ±10% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCER72A473K1M1H03A X7R 100 47000pF ±10% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCER72A683K1M1H03A X7R 100 68000pF ±10% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCER72A104K1M1H03A X7R 100 0.1µF ±10% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCER72A154K2M1H03A X7R 100 0.15µF ±10% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCER72A224K2M1H03A X7R 100 0.22µF ±10% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCER72A334K1M1H03A X7R 100 0.33µF ±10% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCER72A474K2M1H03A X7R 100 0.47µF ±10% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCER72A684K2M1H03A X7R 100 0.68µF ±10% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCER72A105K2M1H03A X7R 100 1.0µF ±10% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCEC72A155K3M1H03A X7S 100 1.5µF ±10% 5.5 5.0 7.5 5.0 4.0 16.0 3M1 1500 RCEC72A225K3M1H03A X7S 100 2.2µF ±10% 5.5 5.0 7.5 5.0 4.0 16.0 3M1 1500 RCEC72A475MWM1H03A X7S 100 4.7µF ±20% 5.5 7.5 10.0 5.0 4.0 16.0 WM1 1500 12 / 19

Reference only 5. AEC-Q200 Murata Standard Specifications and Test Methods AEC-Q200 Specification AEC-Q200 Test Method No. Test Item 1 Pre-and Post-Stress - Electrical Test 2 High Appearance No defects or abnormalities Sit the capacitor for 1,00012h at 1503C. Let sit for 242h at Temperature Capacitance within ±12.5% *room condition then measure. Exposure Change •Pretreatment (Storage) D.F. 0.04 max. Perform the heat treatment at 150+0/-10°C for 60±5 min and then let sit for 24±2 h at *room condition. More than 1,000M or 50 MF I.R. (Whichever is smaller) 3 Temperature Appearance No defects or abnormalities Perform the 1,000 cycles according to the four heat treatments Cycling Capacitance within ±12.5% listed in the following table. Let sit for 24±2 h at *room condition, Change then measure. D.F. 0.05 max. I.R. 1(,W00h0icMhev oerr 5is0 sMma·lleFr )m in. TS(etmCepp) . -55+10 /-3 TReom2o mp. 125+33 /-0 TReom4o mp. Time 153 1 153 1 (min.) •Pretreatment Perform the heat treatment at 150+0/-10°C for 60±5 min and then let sit for 24±2 h at *room condition. 4 Moisture Appearance No defects or abnormalities Apply the 24h heat (25 to 65C) and humidity (80 to 98%) Resistance Capacitance within ±12.5% treatment shown below, 10 consecutive times. Change Let sit for 24±2 h at *room condition, then measure. D.F. 0.05 max. Temperature Humidity Humidity I.R. 500M or 25M·F min. C H90um9i8dity 8098 H90um9i8dity 8098 H90um9i8dity (Whichever is smaller) 70 65 60 55 Temperature 5443305050 2250 +- 1 20  C 15 10 Initial measuremen t 5 0 -5 -10 One cycle 24 hours 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Hours •Pretreatment Perform the heat treatment at 150+0/-10°C for 60±5 min and then let sit for 24±2 h at *room condition. 5 Biased Appearance No defects or abnormalities Apply the rated voltage and DC1.3+0.2/-0 V (add 100k resistor) Humidity Capacitance within ±12.5% at 853C and 80 to 85% humidity for 1,00012h. Change Remove and let sit for 24±2 h at *room condition, then measure. D.F. 0.05 max. The charge/discharge current is less than 50mA. I.R. 500M or 25M·F min. •Pretreatment (Whichever is smaller) Perform the heat treatment at 150+0/-10°C for 60±5 min and then let sit for 24±2 h at *room condition. 6 Operational Appearance No defects or abnormalities Apply 200% of the rated voltage * 1 for 1,00012h at 1253C. Life Capacitance within ±12.5% Let sit for 24±2 h at *room condition, then measure. Change The charge/discharge current is less than 50mA. D.F. 0.04 max. •Pretreatment Apply test voltage for 60±5 min at test temperature. I.R. 1,000M or 50M·F min. Remove and let sit for 24±2 h at *room condition. (Whichever is smaller) * “room condition” Temperature:15 to 35°C, Relative humidity:45 to 75%, Atmosphere pressure:86 to 106kPa * 1 : below parts are applicable in rated voltage×150%. Rated Char. Voltage Capacitance Dimensions C7 1H 105 1 C7 1H 475 2 C7 1H 106 3 C7 1H 226 W R7 2A 334 1 R7 2A 474-105 2 C7 2A 155-225 3 C7 2A 475 W ESRCE01C 13 / 19

Reference only AEC-Q200 No. Specification AEC-Q200 Test Method Test Item 7 External Visual No defects or abnormalities Visual inspection 8 Physical Dimension Within the specified dimensions Using calipers and micrometers. 9 Marking To be easily legible. Visual inspection 10 Resistance to Appearance No defects or abnormalities Per MIL-STD-202 Method 215 Solvents Capacitance Within the specified tolerance Solvent 1 : 1 part (by volume) of isopropyl alcohol D.F. 0.025 max. 3 parts (by volume) of mineral spirits I.R. More than 10,000M or 500 MF Solvent 2 : Terpene defluxer Solvent 3 : 42 parts (by volume) of water (Whichever is smaller) 1part (by volume) of propylene glycol monomethyl ether 1 part (by volume) of monoethanolamine 11 Mechanical Appearance No defects or abnormalities Three shocks in each direction should be applied along 3 Shock mutually perpendicular axes of the test specimen (18 shocks). Capacitance Within the specified tolerance The specified test pulse should be Half-sine and should have a D.F. 0.025 max. duration :0.5ms, peak value:1,500G and velocity change: 4.7m/s. 12 Vibration Appearance No defects or abnormalities The capacitor should be subjected to a simple harmonic motion having a total amplitude of 1.5mm, the frequency being varied Capacitance Within the specified tolerance uniformly between the approximate limits of 10 and 2,000Hz. D.F. 0.025 max. The frequency range, from 10 to 2,000Hz and return to 10Hz, should be traversed in approximately 20 min. This motion should be applied for 12 items in each 3 mutually perpendicular directions (total of 36 times). 13-1 Resistance Appearance No defects or abnormalities The lead wires should be immersed in the melted solder 1.5 to to Soldering Capacitance Within 7.5% 2.0mm from the root of terminal at 2605C for 101 seconds. Heat Change (Non- Dielectric No defects • Pre-treatment Preheat) Strength Capacitor should be stored at 150+0/-10C for one (Between hour, then place at *room condition for 242 hours before terminals) initial measurement. • Post-treatment Capacitor should be stored for 242 hours at *room condition. 13-2 Resistance Appearance No defects or abnormalities First the capacitor should be stored at 120+0/-5C for 60+0/-5 to Soldering seconds. Heat Capacitance Within 7.5% Then, the lead wires should be immersed in the melted solder (On- Change 1.5 to 2.0mm from the root of terminal at 2605C for 7.5+0/-1 Preheat) Dielectric No defects seconds. Strength (Between • Pre-treatment terminals) Capacitor should be stored at 150+0/-10C for one hour, then place at *room condition for 242 hours before initial measurement. • Post-treatment Capacitor should be stored for 242 hours at *room condition. 13-3 Resistance Appearance No defects or abnormalities Test condition to Soldering Capacitance Within 7.5% Termperature of iron-tip : 35010C Heat Change Soldering time : 3.50.5 seconds (soldering Soldering position Dielectric No defects iron method) Straight Lead:1.5 to 2.0mm from the root of terminal. Strength Crimp Lead:1.5 to 2.0mm from the end of lead bend. (Between terminals) • Pre-treatment Capacitor should be stored at 150+0/-10C for one hour, then place at *room condition for 242 hours before initial measurement. • Post-treatment Capacitor should be stored for 242 hours at *room condition. 14 Thermal Shock Appearance No defects or abnormalities Perform the 300 cycles according to the two heat treatments listed Capacitance within ±12.5% in the following table(Maximum transfer time is 20s.). Let sit for Change 24±2 h at *room condition, then measure. Step 1 2 D.F. 0.05 max. Temp. I.R. 1,000M or 50M·F min. -55+0/-3 125+3/-0 (C) (Whichever is smaller) Time (min.) 153 153 •Pretreatment Perform the heat treatment at 150+0/-10°C for 60±5 min and then let sit for 24±2 h at *room condition. * “room condition” Temperature:15 to 35°C, Relative humidity:45 to 75%, Atmosphere pressure:86 to 106kPa ESRCE01C 14 / 19

Reference only AEC-Q200 No. Specifications AEC-Q200 Test Method Test Item 15 ESD Appearance No defects or abnormalities Per AEC-Q200-002 Capacitance Within the specified tolerance D.F. 0.025 max. I.R. More than 10,000M or 500 MF (Whichever is smaller) 16 Solderability Lead wire should be soldered with uniform coating on Should be placed into steam aging for 8h15 min. the axial direction over 95% of the circumferential The terminal of capacitor is dipped into a solution of ethanol direction. (JIS K 8101) and rosin (JIS K 5902) (25% rosin in weight propotion).Immerse in solder solution for 20.5 seconds. In both cases the depth of dipping is up to about 1.5 to 2mm from the terminal body. Temp. of solder : 2455C Lead Free Solder(Sn-3.0Ag-0.5Cu) 2355C H60A or H63A Eutectic Solder 17 Electrical Apperance No defects or abnormalities Visual inspection. Characte- rization Capacitance Within the specified tolerance The capacitance/D.F. should be measured at 25C at the frequency and voltage shown in the table. D.F. 0.025 max. Frequency Voltage 10.1kHz 10.2V(r.m.s.) I.R. Between 10,000M or 500MF min. The insulation resistance should be measured with a DC voltage Terminals (Whichever is smaller) not exceeding the rated voltage at 25 C within 2 min. of charging. Dielectric Between No defects or abnormalities The capacitor should not be damaged when DC voltage of 250% Strength Terminals of the rated voltage is applied between the terminations for 1 to 5 seconds. (Charge/Discharge current  50mA.) Body No defects or abnormalities The capacitor is placed in a container with metal balls of 1mm Insulation diameter so that each terminal, short-circuit is kept approximately 2mm from the balls, and 250% of the rated DC voltage is impressed for 1 to 5 seconds between capacitor terminals and metal balls. (Charge/Discharge current  50mA.) 18 Terminal Tensile Termination not to be broken or loosened As in the figure, fix the capacitor body, apply the force gradually Strength Strength to each lead in the radial direction of the capacitor until reaching 10N and then keep the force applied for 101 seconds.  F Bending Termination not to be broken or loosened Each lead wire should be subjected to a force of 2.5N and then Strength be bent 90° at the point of egress in one direction. Each wire is then returned to the original position and bent 90° in the opposite direction at the rate of one bend per 2 to 3 seconds. 19 Capacitance Char.X7R: Within ±15% The capacitance change should be measured after 5min. at Temperature Char.X7S: Within ±22% each specified temperature step. Characteristics Step Temperature(C) 1 252 2 -553 3 252 4 1253 5 252 The ranges of capacitance change compared with the above 25°C value over the temperature ranges shown in the table should be within the specified ranges. •Pretreatment Perform the heat treatment at 150+0/-10°C for 60±5 min and then let sit for 24±2 h at *room condition. Perform the initial measurement. * “room condition” Temperature:15 to 35°C, Relative humidity:45 to 75%, Atmosphere pressure:86 to 106kPa ESRCE01C 15 / 19

Reference only 6. Packing specification Bulk type (Packing style code : B) 1 2 The number of packing = Packing quantity  n The size of packing case and packing way P o l y e t h y l e n e b a g 1 : Please refer to [Part number list]. 2 : Standard n = 20 (bag) Partition Note) The outer package and the number of outer packing be changed by the order getting amount. 125 max. 270 max. 340 max. Unit : mm Ammo pack taping type (Packing style code : A)  A crease is made every 25 pitches, and the tape with capacitors is packed zigzag into a case.  When body of the capacitor is piled on other body under it. The size of packing case and packing way 240 max. Position of label Unit : mm 340 max. Hold down tape Capacitor 51 max. Base tape Hold down tape upper EKBCRPE01 16 / 19

Reference only 7. Taping specification 7-1. Dimension of capacitors on tape Inside crimp taping type < Lead code : M1 > Pitch of component 12.7mm / Lead spacing 5.0mm P2 P 0 h1 h2 S Marking e P1 F W2  d 0 H 1 L  D0 W 0 W W t2 1 t P0 Unit : mm Item Code Dimensions Remarks Pitch of component P 12.7+/-1.0 Pitch of sprocket hole P0 12.7+/-0.2 Lead spacing F 5.0+0.6/-0.2 Length from hole center to component center P2 6.35+/-1.3 Deviation of progress direction Length from hole center to lead P1 3.85+/-0.7 Deviation along tape, left or right defect S 0+/-2.0 They include deviation by lead bend . Carrier tape width W 18.0+/-0.5 Position of sprocket hole W1 9.0+0/-0.5 Deviation of tape width direction Lead distance between reference and bottom H0 16.0+/-0.5 plane Protrusion length 0.5 max. Diameter of sprocket hole D0 4.0+/-0.1 Lead diameter d 0.50+/-0.05 Total tape thickness t1 0.6+/-0.3 They include hold down tape thickness. Total thickness of tape and lead wire t2 1.5 max. h1 2.0 max.（Dimension code：W） Deviation across tape h2 1.0 max.（except as above） Portion to cut in case of defect L 11.0+0/-1.0 Hold down tape width W0 9.5 min. Hold down tape position W2 1.5+/-1.5 Coating extension on lead e Up to the end of crimp ETP1M101 17 / 19

Reference only Straight taping type < Lead code : DB > Pitch of component 12.7mm / Lead spacing 2.5mm 0 P2 P h1 h2 S Marking e P1 F 2 W  d H L  D0 W1 0 W W t2 1 t P0 Unit : mm Item Code Dimensions Remarks Pitch of component P 12.7+/-1.0 Pitch of sprocket hole P0 12.7+/-0.2 Lead spacing F 2.5+0.4/-0.2 Length from hole center to component center P2 6.35+/-1.3 Deviation of progress direction Length from hole center to lead P1 5.1+/-0.7 Deviation along tape, left or right defect S 0+/-2.0 They include deviation by lead bend . Carrier tape width W 18.0+/-0.5 Position of sprocket hole W1 9.0+0/-0.5 Deviation of tape width direction Lead distance between reference and bottom H 16.0+/-0.5 plane Protrusion length 0.5 max. Diameter of sprocket hole D0 4.0+/-0.1 Lead diameter d 0.50+/-0.05 Total tape thickness t1 0.6+/-0.3 They include hold down tape thickness. Total thickness of tape and lead wire t2 1.5 max. h1 Deviation across tape 1.0 max. h2 Portion to cut in case of defect L 11.0+0/-1.0 Hold down tape width W0 9.5 min. Hold down tape position W2 1.5+/-1.5 Coating extension on lead e 1.5 max. ETP1DB02 18 / 19

Reference only 7-2. Splicing way of tape 1) Adhesive force of tape is over 3N at test condition as below. W Hold down tape Base tape 2) Splicing of tape a) When base tape is spliced Base tape shall be spliced by cellophane tape. (Total tape thickness shall be less than 1.05mm.) Progress direction Hold down tape in production line Base tape About 30 to 50 Cellophane tape No lifting for the direction of progressing Unit : mm b) When hold down tape is spliced Hold down tape shall be spliced with overlapping. (Total tape thickness shall be less than 1.05mm.) ape are spliced Base tape and adhesive tape shall be spliced with splicing tape. 20 to 30 Hold down tape Progress direction Base tape in production line Unit : mm c) When both tape are spliced Base tape and hold down tape shall be spliced with splicing tape. ETP2R01 19 / 19

Appendix EU RoHS and Halogen Free This products of the following crresponds to EU RoHS and Halogen Free　 (1) RoHS 　EU RoHs 2011/65/EC compliance　 　maximum concentration values tolerated by weight in homogeneous materials 　・1000 ppm maximum Lead 　・1000 ppm maximum Mercury 　・100 ppm maximum Cadmium 　・1000 ppm maximum Hexavalent chromium 　・1000 ppm maximum Polybrominated biphenyls (PBB) 　・1000 ppm maximum Polybrominated diphenyl ethers (PBDE) (2) Halogen-Free 　The International Electrochemical Commission’s (IEC) Definition 　of Halogen-Free (IEC 61249-2-21) compliance 　 　・900 ppm maximum chlorine 　・900 ppm maximum bromine 　・1500 ppm maximum total chlorine and bromine
