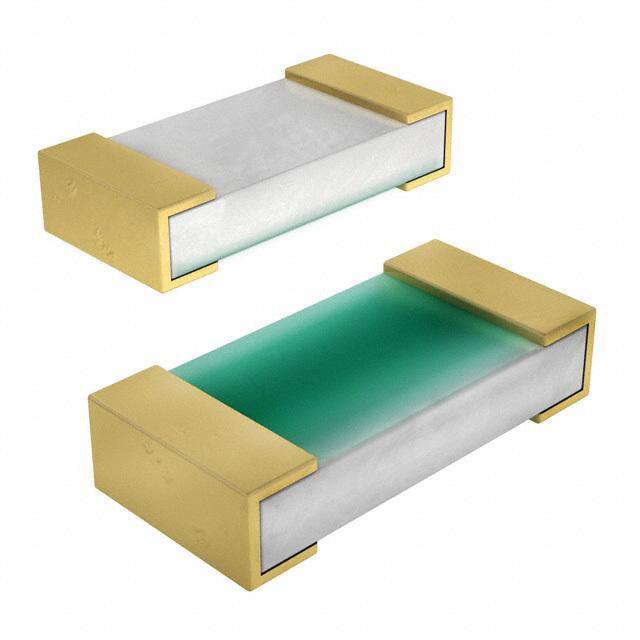

PATT www.vishay.com Vishay Dale Thin Film Precision Automotive High Temperature (155 °C at Full Rated Power) Thin Film Chip Resistor, AEC-Q200 Qualified FEATURES • Resistance range: 1.0  to 1 M • AEC-Q200 qualified, table 7F • AEC-Q200 qualified, ESD rated class 1C (< 1 k: 1 kV; > 1 k: 2 kV) • Laser trimmed to any value • Intrinsic moisture protected resistor element • Moisture resistant to MIL-STD-202, method 106 • Tantalum nitride resistor film on alumina substrate • 100 % visual inspected per MIL-PRF-55342 The terminations consist of an adhesion layer, a leach • Laser-trimmed tolerances to ± 0.1 % resistant nickel barrier and gold plating compatible with high • Load life stability 0.2 % at 1000 h at 155 °C and 100 % temperature solder systems. rated power • Very low noise and voltage coefficient CONSTRUCTION (< -30 dB, < 0.1 ppm/V) Ta ntalum Nitride Passivation Resistive Film • Sulfur resistant (per ASTM B809-95 humid vapor test) Gold • Material categorization: for definitions of complianc e please see www.vishay.com/doc?99912 Nickel Barrier TYPICAL PERFORMANCE High Purity Alumina Substrate Adhesion Layer ABSOLUTE TCR 25 TOL. 0.1 STANDARD ELECTRICAL SPECIFICATIONS TEST SPECIFICATIONS CONDITIONS Material Tantalum nitride - Resistance Range 1.0  to 1 M - TCR: Absolute ± 25 ppm/°C to ± 100 ppm/°C -55 °C to +175 °C Tolerance: Absolute ± 0.1 % to ± 1.0 % +25 °C 1000 h at 155 °C Stability: Absolute ± 0.2 % and 100 % rated power Stability: Ratio Not applicable - Voltage Coefficient Less than 0.1 ppm/V - Working Voltage 75 V - Operating Temperature Range -55 °C to +250 °C - Storage Temperature Range (1) -55 °C to +250 °C - Noise < -30 dB - Shelf Life Stability: Absolute 100 ppm 1 year at 25 °C Note (1) Storage temperature rating is for device only COMPONENT RATINGS CASE SIZE POWER RATING (mW) WORKING VOLTAGE (V) RESISTANCE RANGE () 0402 50 75 1.5 to 51K 0603 150 75 2.75 to 120K 0805 200 100 2.75 to 301K 1206 400 200 1.0 to 1M Revision: 14-Mar-2019 1 Document Number: 60124 For technical questions, contact: thinfilm@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

PATT www.vishay.com Vishay Dale Thin Film DIMENSIONS in inches D T D W T E L L CASE SIZE L W T D E 0402 0.042 ± 0.008 0.022 ± 0.005 0.015 ± 0.003 0.010 ± 0.005 0.010 ± 0.005 0603 0.064 ± 0.006 0.032 ± 0.005 0.015 ± 0.003 0.012 ± 0.005 0.015 ± 0.005 0805 0.080 ± 0.006 0.050 ± 0.005 0.015 ± 0.003 0.016 ± 0.008 0.015 ± 0.005 1206 0.126 ± 0.008 0.063 ± 0.005 0.015 ± 0.003 0.020 + 0.005 / - 0.01 0.020 + 0.005 / -0.01 ENVIRONMENTAL TESTS TYPICAL VISHAY ENVIRONMENTAL TEST CONDITIONS PERFORMANCE High temperature storage MIL-STD-202 method 108, 1000 h at 125 °C ± 0.05 % JESD22 method JA-104, 1000 cycles, Temperature cycling ± 0.115 % -55 °C to +155 °C Moisture resistance MIL-STD-202 method 106 ± 0.017 % MIL-STD-202 method 103, 1000 h at 85 °C, 85 % RH, Biased humidity ± 0.133 % 10 % rated power ± 0.20 % at 100 % MIL-STD-202 method 108, Life rated power and 155 °C. 1000 h at 155 °C Effective film temperature is 200 °C. Mechanical shock MIL-STD-202 method 213, condition C ± 0.008 % Vibration MIL-STD-202 method 204, 10 Hz to 2 kHz ± 0.008 % Resistance to soldering heat MIL-STD-202 method 210, condition B ± 0.09 % AEC-Q200-002, human body Electrostatic discharge ± 0.10 % at 2 kV (< 1 k: 1 kV; > 1 k: 2 kV) Solderability MIL-STD-883 method 2003 para 2.3.1 and J-STD-002 Pass Die shear MIL-PRF-55342 Pass Flame retardance AEC-Q200-001 para 4.0 Pass MECHANICAL SPECIFICATIONS Resistive element Tantalum nitride Substrate material Alumina Terminations Gold (10 μin. min.) over nickel (50 μin. min.) DERATING CURVE 100 wer 80 o P ed 60 at R of 40 nt e c er 20 P 0 - 55 0 50 100 155 200 250 Ambient Temperature °C Revision: 14-Mar-2019 2 Document Number: 60124 For technical questions, contact: thinfilm@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

PATT www.vishay.com Vishay Dale Thin Film GLOBAL PART NUMBER INFORMATION New Global Part Numbering: PATT0603E1002BGT1 P A T T 0 6 0 3 E 1 0 0 2 B G T 1 GLOBAL CASE TCR RESISTANCE TOLERANCE TERMINATION PACKAGING MODEL SIZE CHARACTERISTIC PATT 0402 E = ± 25 ppm/°C The first 3 digits are B = ± 0.1 % G =wraparound  BULK 0603 H = ± 50 ppm/°C significant figures and D = ± 0.5 % gold over nickel BS = 100 min., 1 mult. 0805 K = ± 100 ppm/°C (1) the last digit specifies F = ± 1.0 % barrier WAFFLE 1206 L = ± 200 ppm/°C the number of zeros G = ± 2.0 % WS = 100 min., 1 mult. to follow. “R” J = ± 5.0 % W0 = 100 min.,100 mult. designates the decimal point. WI = 100 min.,1 mult. (item single lot date code) Example: WP = 100 min.,1 mult. 10R0 = 10  (package unit single lot 1000 = 100  date code) 1002 = 10 k TAPE AND REEL T0 = 100 min., 100 mult. T1 = 1000 min., 1000 mult. T3 = 300 min., 300 mult. T5 = 500 min., 500 mult. TF = full reel TS = 100 min., 1 mult. TI = 100 min., 1 mult. (item single lot date code) TP = 100 min., 1 mult. (package unit single lot date code) Note (1) Characteristic TCR - (R < 10 ) TCR TOLERANCE RESISTANCE (ppm/°C) (%) 10  to 1 M 25, 50, 100, 200 0.1, 0.5, 1, 2, 5 5  to 10  (2) 100, 200 1, 2, 5 1.0  to 5  (2) 200 1, 2, 5 Note (2) Resistance values from 1.0  to 10  are undergoing PPAP qualification; results are expected to be similar to PPAP qualified 10  to 120 k Revision: 14-Mar-2019 3 Document Number: 60124 For technical questions, contact: thinfilm@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
