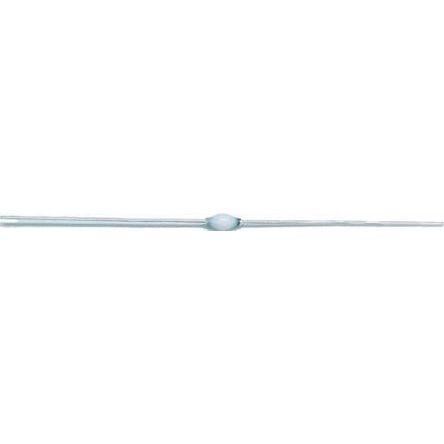

STPS2H100RL Datasheet 100 V power Schottky rectifier Features A • Negligible switching losses • High junction temperature capability • Low leakage current • Good trade-off between leakage current and forward voltage drop • Avalanche capability specified DO-41 • ECOPACK®2 compliant K Description The STPS2H100RL is an axial power Schottky rectifier ideal for switch mode power supply and high frequency DC/DC converters. Packaged in DO-41, this device is optimized for use in low voltage, high frequency inverters and small battery chargers. Product status link STPS2H100RL Product summary Symbol Value IF(AV) 2 A VRRM 100 V Tj (max.) 175 °C VF (max.) 0.70 V DS2999 - Rev 5 - May 2018 www.st.com For further information contact your local STMicroelectronics sales office.

STPS2H100RL Characteristics 1 Characteristics Table 1. Absolute ratings (limiting values at 25 °C, unless otherwise specified) Symbol Parameter Value Unit VRRM Repetitive peak reverse voltage 100 V IF(AV) Average forward current TL = 120 °C, δ = 0.5 2 A IFSM Surge non repetitive forward current tp = 10 ms sinusoidal 50 A PARM Repetitive peak avalanche power tp = 10 µs, Tj = 125 °C 108 W Tstg Storage temperature range -65 to +175 °C Tj Maximum operating junction temperature(1) 175 °C 1. (dPtot/dTj) < (1/Rth(j-a)) condition to avoid thermal runaway for a diode on its own heatsink. Table 2. Thermal resistance parameters Symbol Parameter Max. value Unit Rth(j-a) Junction to ambient 100 Lead length = 10 mm °C/W Rth(j-l) Junction to lead 35 Table 3. Static electrical characteristics Symbol Parameter Test conditions Min. Typ. Max. Unit Tj = 25 °C - 1 µA IR(1) Reverse leakage current VR = VRRM Tj = 125 °C - 0.2 0.5 mA Tj = 25 °C - 0.86 IF = 2 A Tj = 125 °C - 0.65 0.70 VF(2) Forward voltage drop V Tj = 25 °C - 0.92 IF = 4 A Tj = 125 °C - 0.72 0.78 1. Pulse test: tp = 5 ms, δ < 2% 2. Pulse test: tp = 380 µs, δ < 2% To evaluate the conduction losses, use the following equation: P = 0.62 x I + 0.04 x I 2 F(AV) F (RMS) For more information, please refer to the following application notes related to the power losses : • AN604: Calculation of conduction losses in a power rectifier • AN4021: Calculation of reverse losses on a power diode. DS2999 - Rev 5 page 2/8

STPS2H100RL Characteristics (curves) 1.1 Characteristics (curves) Figure 1. Average forward power dissipation versus Figure 2. Average forward current versus ambient average forward current temperature (δ = 0.5) PF(AV)(W) IF(AV)(A) 1.7 2.2 1.6 δ= 0.1 δ= 0.2 δ= 0.5 Rth(j-a)=Rth(j-I) 2.0 1.5 δ= 0.05 1.4 1.8 1.3 1.6 1.2 1.1 δ= 1 1.4 1.0 0.9 1.2 Rth(j-a)=100°C/W 0.8 1.0 0.7 0.6 0.8 00..45 T 0.6 T 0.3 0.4 00..12 IF(AV)(A) δ=tp/T tp 0.2 δ=tp/T tp Tamb(°C) 0.0 0.0 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 0 25 50 75 100 125 150 175 Figure 4. Relative variation of thermal impedance junction Figure 3. Normalized avalanche power derating versus to ambient versus pulse duration junction temperature (T = 125 °C) j PARM(tp) Zth(j-a)/Rth(j-a) P (10 µs) 1.0 1 ARM 0.9 0.8 0.7 0.1 0.6 0.5 0.4 0.01 0.3 0.2 tp(µs) 0.1 Single pulse tp(s) 0.001 0.0 1 10 100 1000 1.E-02 1.E-01 1.E+00 1.E+01 1.E+02 1.E+03 DS2999 - Rev 5 page 3/8

STPS2H100RL Characteristics (curves) Figure 5. Reverse leakage current versus reverse voltage Figure 6. Junction capacitance versus reverse voltage applied (typical values) applied (typical values) IR(µA) C(pF) 1.E+03 100 Tj=150°C F = 1MHz VOSC = 30mV 1.E+02 Tj=125°C Tj = 25 °C Tj=100°C 1.E+01 Tj=75°C 1.E+00 Tj=50°C 1.E-01 Tj=25°C VR(V) VR(V) 1.E-02 10 0 20 40 60 80 100 1 10 100 Figure 7. Forward voltage drop versus forward current Figure 8. Forward voltage drop versus forward current (low level) (high level) IF(A) IF(A) 2.0 100 1.8 1.6 (maxTimj=u1m25 v°aClues) (maxTimj=u1m25 v°aClues) 1.4 11..02 (typTijc=a1l2 v5a°lCues) 10 (typTijc=a1l2 v5a°lCues) (maxiTmj=u2m5 °vCalues) 0.8 Tj=25°C 0.6 (maximum values) 0.4 0.2 VF(V) VF(V) 0.0 1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 Figure 9. Thermal resistance versus lead length Rth(°C/W) 120 Rth(j-a) 100 80 60 Rth(j-I) 40 20 Lleads(mm) 0 5 10 15 20 25 DS2999 - Rev 5 page 4/8

STPS2H100RL Package information 2 Package information In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at: www.st.com. ECOPACK® is an ST trademark. 2.1 DO-41 package information • Epoxy meets UL94, V0 • Band indicates cathode Figure 10. DO-41 package outline C A C ØB ØD ØD Table 4. DO-41 package mechanical data Dimensions Ref. Millimeters Inches Min. Max. Min. Max. A 4.07 5.20 0.160 0.205 ØB 2.04 2.71 0.080 0.107 C 25.40 1 ØD 0.71 0.86 0.028 0.034 DS2999 - Rev 5 page 5/8

STPS2H100RL Ordering Information 3 Ordering Information Table 5. Ordering information Order code Marking Package Weight Base qty. Delivery mode STPS2H100 STPS2H100 2000 Ammopack DO-41 0.34 g STPS2H100RL Cathode ring 5000 Tape and reel DS2999 - Rev 5 page 6/8

STPS2H100RL Revision history Table 6. Document revision history Date Version Changes Jul-2003 2A Initial release. 23-Jun-2009 3 Updated dimension C in table 5. 05-Oct-2009 4 Updated table 5 package dimensions. Removed figure 4 and figure 5. Updated Figure 3. Normalized avalanche power derating versus junction 17-May-2018 5 temperature (Tj = 125 °C) and Table 1. Absolute ratings (limiting values at 25 °C, unless otherwise specified). Minor text changes to improve readability. DS2999 - Rev 5 page 7/8
