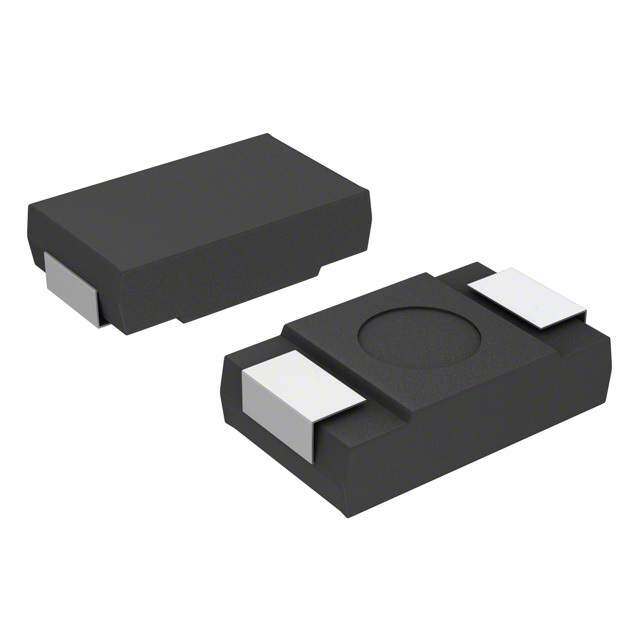

Type SPSX Solid Polymer Aluminum SMT Capacitors The solid polymer SPSX aluminum capacitor is an ideal choice for audio/visual equipment, home appliances, computers, measuring equipment and industrial robots. Like the SPCX, the SPSX is a compact component. But SPSX offers a much lower ESR and a higher ripple current rating than the SPCX. The SPSX is a green product and RoHS compliant. Highlights E Complies with the EU Directive 2002/95/EC • A low-profile height of 1.9 mm requirement restricting the use of Lead (Pb), • Offered on tape and reel Mercury (Hg), Cadmium (Cd), Hexavalent chro- • Can withstand 260 ºC reflow for 10 s mium (Cr(VI)), PolyBrominated Biphenyls (PBB) T andPolyBrominated Diphenyl Ethers (PBDE). • 4.5 - 9 mΩ ESR @ 100 kHz • A great value in a small package Specifications E Operating Temperature Range: –40 ºC to +105 ºC Capacitance Range: 82 µF to 560 µF Operating Working Range: 2.0, 2L.5, 4.0, 6.3 Vdc Capacitance Tolerance: ±20 % (120 Hz @ 20 ºC) Surge Voltage:O Vdc 2.0 2.5 4.0 6.3 Surge 2.5 3.1 5.0 8.0 Rated Ripple Current: See ratings table S Life Test: Surge Test: Apply rated voltage at +105 ºC ±2 ºC for 1000 h Test temperature is +15 ºC to +35 ºC in series with * Leakage current: ≤ ratings table values a 1000 Ω resistor with the surge voltage applied for B * Capacitance: ±10% of initial measured value 1000 cycles of 30±5 s (ON) and 5 min 30 s (OFF) * DF: ≤ ratings table values • Leakage current: I≤0.1CV * Appearance: No abnormal change to occur • Capacitance: ±10% of initial measured value O • DF: ≤ the values in the ratings table Moisture Resistance: • Appearance: No abnormal change to occur +60 ºC ±2 ºC @ 90% RH; rated voltage for 500 h Vibration: * Leakage current: ≤ rating table values * Capacitance: +70%, –20% (2V, 2.5V) 10 Hz to 2000 Hz to 10 Hz frequency applied one +60%, –20% (4V) cycle per 20 min at a total amplitude of 1.5 mm. +50%, –20% (6.3V) Direction and duration of vibration will be 2 h each in of initial measured value the X,Y and Z planes for total of 6 h with the capacitor * DF: ≤200% of initial specified value soldered in place. * Appearance: No abnormal change to occur • Appearance; No abnormal change to occur. • Capacitance: Measured value to be stabilized Shelf Life Test: during test, when measured several times +105 ºC ±2 ºC for 500 h within 30 min before completion of test. Leakage current: ≤ rating table values Capacitance: ±10% of initial measured value DF: ≤ ratings table values Appearance: No abnormal change to occur CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com

Type SPSX Solid Polymer Aluminum SMT Capacitors Outline Drawings + - H S S L W1 W2 W2 L (±0.2) W1 (±0.2) W2 (±0.1) H (±0.2) S (±0.3) Surface finish of terminal; Tin (Sn) 7.3 mm 4.3 mm 2.4 mm 1.9 mm 1.3 mm E Marking W1 T Polarity Stripe (Anode) Capacitance + E W.V. Code d = 2.0 V Lot Code e = 2.5 V L g = 4.0 V j = 6.3 V O Part Numbering System S B SPSX 221 M 0E R -7 O Type Capacitance Capacitance Voltage Code Packaging Optional Lower Code Tolerance 02 = 2.0 Vdc Code ESR Value at 100 820 = 82 M = ±20% 0E = 2.5 VDC R = Tape & Reel: kHz (see tables 101 = 100 04 = 4.0 Vdc 3500 pcs/reel for available op- tions) 221 = 220 06 = 6.3 Vdc B = Bulk CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com

Type SPSX Solid Polymer Aluminum SMT Capacitors Ratings Max. E.S.R. Max. Ripple Current Capacitance Catalog Max. D.F. Max. DCL @100kHz/+20°C @ 100kHz/(+20°C to +105°C) (µF) Part Number @ 120 Hz (µA) (mΩ) (Arms) 2.0 Vdc (Surge 2.5 Vdc) 180 SPSX181M02R 0.06 36 9 3 220 SPSX221M02R 0.06 44 9 3 270 SPSX271M02R 0.06 54 9 3 270 SPSX271M02R-6 0.06 54 6 3.5 E 270 SPSX271M02R-4 0.06 54 4.5 3.8 330 SPSX331M02R 0.06 66 9 3 330 SPSX331M02R-6 0.06 66 6 3.5 T 330 SPSX331M02R-4 0.06 66 4.5 3.8 390 SPSX391M02R 0.06 78 9 3 390 SPSX391M02R-6 0.06 78 6 3.5 E 390 SPSX391M02R-4 0.06 78 4.5 4 470 SPSX471M02R 0.06 94 9 3 470 SPSX471M02R-6 0.06 94 6 3.5 L 470 SPSX471M02R-4 0.06 94 4.5 4 560 SPSX561M02R-4 0.06 112 4.5 4 2.5 Vdc (Surge 3.1 Vdc) O 150 SPSX151M0ER 0.06 37.5 9 3 180 SPSX181M0ER 0.06 45 9 3 220 SPSX221M0ER 0.06 55 9 3 220 SPSX221M0ER-7 S0.06 55 7 3.5 270 SPSX271M0ER-7 0.06 67.5 7 3.5 330 SPSX331M0ER 0.06 82.5 9 3 330 SPSX331BM0ER-6 0.06 82.5 6 3.5 330 SPSX331M0ER-4 0.06 82.5 4.5 4 390 SPSX391M0ER 0.06 97.5 9 3 390 SPSX391M0ER-6 0.06 97.5 6 3.5 O 390 SPSX391M0ER-4 0.06 97.5 4.5 4 470 SPSX471M0ER 0.06 117.5 9 3 470 SPSX471M0ER-6 0.06 117.5 6 3.5 470 SPSX471M0ER-4 0.06 117.5 4.5 4 4.0 Vdc (Surge 5.0 Vdc) 82 SPSX820M04R 0.06 32.8 9 3 100 SPSX101M04R 0.06 40 9 3 150 SPSX151M04R 0.06 60 9 3 150 SPSX151M04R-7 0.06 60 7 3.5 180 SPSX181M04R 0.06 72 9 3 220 SPSX221M04R 0.06 88 9 3 6.3 Vdc (Surge 8.0 Vdc) 120 SPSX121M06R-7 0.06 75.6 7 3.5 150 SPSX151M06R 0.06 94.5 9 3 CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com

Type SPSX Solid Polymer Aluminum SMT Capacitors Reflow Soldering Profile Temperature on Surface of Capacitor Maximum of 10 seconds at Peak Temperature 260 ºC -------------- 230 ºC -------------------------------------------- C Time at or e º above 230 ºC E r u t a r e p 120 seconds max. m Te T Peak Temp. Time in 230 ºC or more 260 ºC, 10 s max. 40 s max. 250 ºC, E10 s max. 60 s max. Time (Seconds) L Time At or Above 230 ºC O S C º e r u t a r B e p m e T k a e O P Time (Seconds) Time (Seconds) CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
