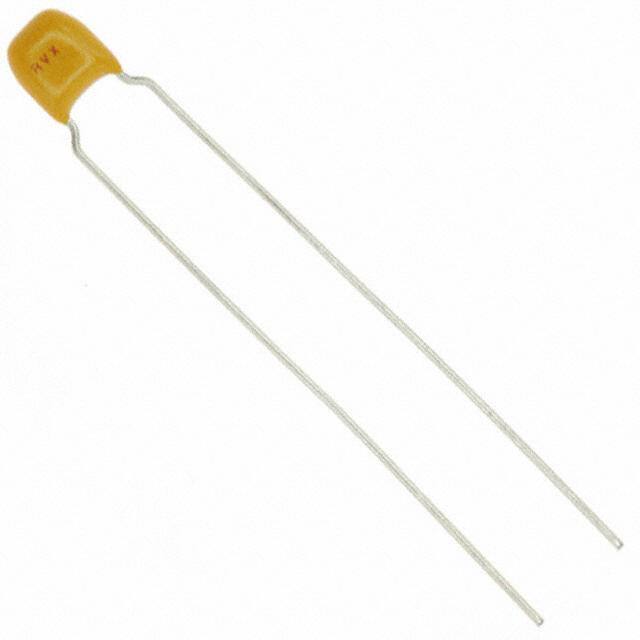

SMPS Capacitors (SK Style) Commercial Radial Range PRODUCT OFFERING – C0G, N1500, X7R AND Z5U AVX SK styles are conformally coated MLC capacitors for input or output filter- ing in switch mode power supplies. They are specially processed to handle high currents and are low enough in cost for commercial SMPS application. ELECTRICAL SPECIFICATIONS Temperature Coefficient Insulation Resistance 125°C (MIL-STD-202 Method 302) C0G: A Temperature Coefficient – 0 ±30 ppm/°C, -55° to +125°C C0G, N1500, X7R: 10K MΩ or 100 MΩ-μF, whichever is less. N1500: 4 Temperature Coefficient – -1500 ±250 ppm/°C Z5U: 1 KMΩ or 100 MΩ-μF, whichever is less. X7R: C Temperature Coefficient – ±15%, -55° to +125°C Dielectric Withstanding Voltage 25°C (Flash Test) Z5U: E Temperature Coefficient – +22, -56%, +10° to +85°C C0G, N1500, X7R: 250% rated voltage for 5 seconds with 50 mA max Capacitance Test (MIL-STD-202 Method 305) charging current. (500 Volt units @ 750 VDC) C0G, N1500: 25°C, 1.0±0.2 Vrms (open circuit voltage) at 1KHz Z5U: 200% rated voltage for 5 seconds with 50 mA max charging current. X7R: 25°C, 1.0±0.2 Vrms (open circuit voltage) at 1KHz Life Test(1000 hrs) Z5U: 25°C, 0.5 Vrms max (open circuit voltage) at 1KHz C0G, N1500, X7R: 200% rated voltage at +125°C. (500 Volt units @ 600 VDC) Dissipation Factor 25°C Z5U: 150% rated voltage at +85°C C0G, N1500: 0.15% Max @ 25°C, 1.0±0.2 Vrms (open circuit voltage) at 1KHz Moisture Resistance (MIL-STD-202 Method 106) X7R: 2.5% Max @ 25°C, 1.0±0.2 Vrms (open circuit voltage) at 1KHz C0G, N1500, X7R, Z5U: Ten cycles with no voltage applied. Z5U: 3.0% Max @ 25°C, 0.5 Vrms max (open circuit voltage) at 1KHz Thermal Shock (MIL-STD-202 Method 107, Condition A) Insulation Resistance 25°C (MIL-STD-202 Method 302) Immersion Cycling (MIL-STD-202 Method 104, Condition B) C0G, N1500, X7R: 100K MΩ or 1000 MΩ-μF, whichever is less. Resistance To Solder Heat (MIL-STD-202, Method 210, Z5U: 10K MΩ or 1000 MΩ-μF, whichever is less. Condition B, for 20 seconds) HOW TO ORDER SK 01 3 E 125 Z A A * Style Size Voltage Temperature Capacitance Capacitance Test Leads Packaging See 25V = 3 Coefficient Code Tolerance Level A = Tin/Lead (See Note 1) chart 50V = 5 Z5U = E (2 significant C0G, N1500:J = ±5% A = Standard R = RoHS below 100V = 1 X7R = C digits + no. K = ±10% B = Hi-Rel* Compliant** 200V = 2 C0G = A of zeros) M = ±20% 500V = 7 N1500 = 4 X7R: K = ±10% 22 nF = 223 M = ±20% Note 1:No suffix signifies bulk packaging, 220 nF = 224 Z = +80, -20% which is AVX standard packaging. 1 μF = 105 Z5U: M = ±20% SK01, SK*3, SK*4, SK*5, SK*6, SK*9 & SK*0 are available taped and reel 100 μF = 107 Z = +80, -20% per EIA-468. Use suffix “TR1” if tape & P = GMV (+100, -0%) reel is required. Note: Capacitors with X7R and Z5U dielectrics are not intended for applications *Hi-Rel screening for C0G, N1500 and X7R only. Screening consists of 100% Group A across AC supply mains or AC line filtering with polarity reversal. Contact plant (B Level), Subgroup 1 per MIL-PRF-49470. for recommendations. **RoHS Compliant parts are not available in the Z5U dielectric. TAPE & REEL QUANTITY RoHS Part Pieces Part Available Not RoHS Compliant SK01 2000 SK01 Yes SK03/SK53 1000 SK03/SK53 Yes SK04/SK54 1000 SK04/SK54 Yes SK05/SK55 500 SK05/SK55 Yes SK06/SK56 500 SK06/SK56 Yes SK07 N/A SK07 Yes SK08 N/A SK08 Yes For RoHS compliant products, SK09/SK59 500 SK09/SK59 Yes please select correct termination style. SK10/SK60 400 SK10/SK60 Yes Performance of SMPS capacitors can be simulated by downloading SpiCalci software program - http://www.avx.com/download/software/SpiCalci-AVX.zip Custom values, ratings and configurations are also available. 70

SMPS Capacitors (SK Style) Product Offering – C0G, X7R and Z5U L L L T H H H H + 3.683 (0.145) M M M LL LL LL LD LD LD LS LS LS SK01 SK03 – SK10 SK53 - SK56 and SK59 – SK60 C0G Capacitance Range (μF) X7R Capacitance Range (μF) 25 50 100 200 500 25 50 100 200 500 Style Style WVDC WVDC WVDC WVDC WVDC WVDC WVDC WVDC WVDC WVDC min./max. min./max. min./max. min./max. min./max. min./max. min./max. min./max. min./max. min./max. SK01 .001/0.015 .001/0.012 .001/0.010 .0010/0.0056 .0010/0.0018 SK01 .01/0.39 .01/0.33 .01/0.27 .01/0.12 .001/0.047 SK03/SK53 .01/0.056 .01/0.047 .01/0.039 .001/0.022 .001/0.0068 SK03/SK53 .10/2.2 .10/1.8 .01/1.5 .01/0.68 .01/0.27 SK04/SK54 .01/0.12 .01/0.10 .01/0.082 .01/0.047 .001/0.015 SK04/SK54 .10/4.7 .10/3.3 .10/2.7 .01/1.0 .01/0.47 SK05/SK55 .01/0.18 .01/0.15 .01/0.12 .01/0.068 .001/0.022 SK05/SK55 .10/6.8 .10/6.8 .10/3.9 .10/1.8 .01/0.68 SK06/SK56 .10/0.56 .01/0.47 .01/0.39 .01/0.22 .01/0.068 SK06/SK56 1.0/15 1.0/10 .10/5.6 .10/3.9 .10/1.5 SK07 .10/0.68 .01/0.56 .01/0.47 .01/0.27 .01/0.082 SK07 1.0/18 1.0/14 1.0/8.2 .10/4.7 .10/2.2 SK08 .82/1.20 .68/1.10 .56/0.82 .33/0.47 .10/0.15 SK08 22/33 15/22 10/15 5.6/8.2 2.2/3.9 SK09/SK59 .10/0.27 .01/0.22 .01/0.18 .01/0.10 .001/0.039 SK09/SK59 .10/8.2 .10/5.6 .10/3.3 .10/2.2 .10/1.2 SK10/SK60 .10/0.68 .01/0.56 .01/0.47 .01/0.27 .01/0.082 SK10/SK60 1.0/18 1.0/12 .10/6.8 .10/4.7 .10/2.2 N1500 Capacitance Range (μF) Z5U Capacitance Range (μF) Style 50 WVDC 100 WVDC 200 WVDC 500 WVDC Style 25 WVDC 50 WVDC 100 WVDC 200 WVDC min./max. min./max. min./max. min./max. min./max. min./max. min./max. min./max. SK01 .001/0.022 .001/0.018 .001/0.012 .001/0.0027 SK01 .10/1.2 .10/0.82 .10/0.47 .10/0.33 SK03/SK53 .01/0.10 .01/0.082 .01/0.056 .001/0.012 SK03/SK53 .10/5.6 .10/3.30 .10/2.20 .10/1.50 SK04/SK54 .01/0.22 .01/0.15 .01/0.12 .001/0.027 SK04/SK54 1.0/10.0 1.0/8.20 .10/4.70 .10/3.30 SK05/SK55 .01/0.27 .01/0.22 .01/0.18 .001/0.039 SK05/SK55 1.0/18.0 1.0/10.00 1.0/6.80 .10/4.70 SK06/SK56 .01/0.82 .01/0.68 .01/0.47 .01/0.12 SK06/SK56 1.0/47.0 1.0/39.00 1.0/22.00 1.0/15.00 SK07 .01/1.00 .01/0.82 .01/0.56 .01/0.15 SK07 1.0/68.0 1.0/47.00 1.0/27.00 1.0/18.00 SK08 .68/2.00 .88/1.60 .62/1.20 .21/0.30 SK08 82/120.0 56/100.00 33/47.00 22/33.00 SK09/SK59 .01/0.56 .01/0.39 .01/0.27 .01/0.068 SK09/SK59 1.0/27.0 1.0/18.00 1.0/10.00 1.0/6.80 SK10/SK60 .01/1.00 .01/0.82 .01/0.68 .01/0.15 SK10/SK60 1.0/56.0 1.0/39.00 1.0/22.00 1.0/18.00 DIMENSIONS millimeters (inches) Style L (max.) H (max.) T (max.) LS (nom.) LD (nom.) SK01 5.08 (0.200) 5.08 (0.200) 5.08 (0.200) 5.08 (0.200) 0.508 (0.020) SK03/SK53 7.62 (0.300) 7.62 (0.300) 5.08 (0.200) 5.08 (0.200) 0.508 (0.020) SK04/SK54 10.2 (0.400) 10.2 (0.400) 5.08 (0.200) 5.08 (0.200) 0.508 (0.020) SK05/SK55 12.7 (0.500) 12.7 (0.500) 5.08 (0.200) 10.2 (0.400) 0.635 (0.025) SK06/SK56 22.1 (0.870) 15.2 (0.600) 5.08 (0.200) 20.1 (0.790) 0.813 (0.032) SK07 27.9 (1.100) 15.2 (0.600) 5.08 (0.200) 24.9 (0.980) 0.813 (0.032) SK08 27.9 (1.100) 15.2 (0.600) 8.89 (0.350) 24.9 (0.980) 0.813 (0.032) SK09/SK59 17.0 (0.670) 13.7 (0.540) 5.08 (0.200) 14.6 (0.575) 0.635 (0.025) SK10/SK60 23.6 (0.930) 18.3 (0.720) 6.35 (0.250) 20.3 (0.800) 0.813 (0.032) L = Length T = Thickness LS = Lead Spacing Nominal ±.787 (0.031) H = Height M = Meniscus 1.52 (0.060) max. LL = Lead Length 50.8 (2.000) max./25.4 (1.000) min. LD = Lead Diameter Nominal ±.050 (0.002) 71
