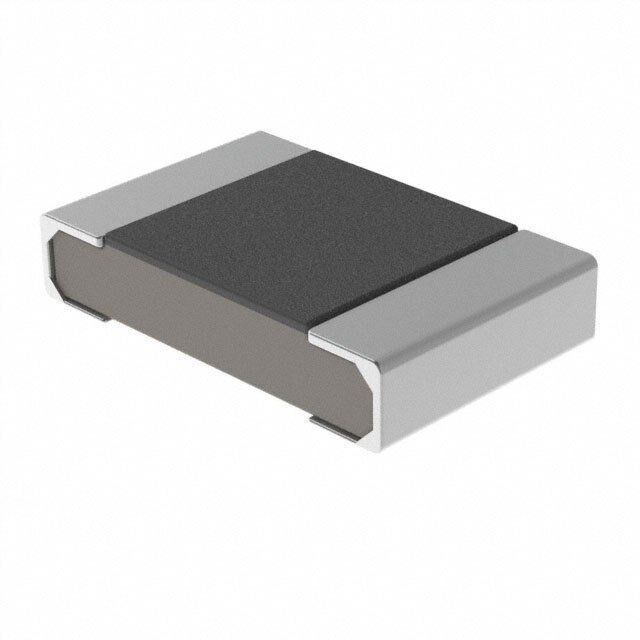

RG series SUSUMU CO.,LTD Ultra precision 0.02%, 0.05%, 0.1%, 0.25%, 0.5%, tolerance Thin Film Chip Resistor FEATURES • High Reliability and Excellent Stability at different environmental conditions • Low noise, THIN FILM(NiCr) construction • EIA Standard case size(0402, 0603, 0805, 1206) • RoHS Compliance and 100% Lead-Free (Matte Sn termination finished) APPLICATIONS • Automotive • Test & Measurement • Optical & Telecommunication • Medical and Industrial Equipment Electrical Specification Power Rating ar 85 oC Resistance Resistance Temperature Coefficient (Code) Max. Resistance Type Size Tolerance Range operating Values Low Regular High (Code) (ohm) (ohm) (ppm/oC) Voltage (E-series) (ultra precision) 10-46.4 100(R) +0.5% (D) 10-100K 47-100K 25(P), 10(N) 100-2.94K 5(V) 47-100K 25(P), 10(N) +0.25% (C) 100-2.94K 5(V) RG1005 0402 0.032W 0.063W 0.125W 25V E-24, E-96 47-100K 25(P), 10(N) +0.1% (B) 47-100K 100-2.94K 5(V) 47-100K 25(P), 10(N) +0.05% (W) 100-2.94K 5(V) +0.02% (V) 100-2.94K 100-2.94K 25(P), 10(N), 5(V) 10-46.4 50(Q) 47-360K 25(P) +0.5% (D) 10-360K 47-274K 10(N) 100-4.99K 5(V) 47-274K 25(P), 10(N) +0.25% (C) 47-274K 100-4.99K 5(V) RG1608 0603 0.063W 0.1W 0.166W 47-332K 25(P) 75V E-24, E-96 +0.1% (B) 47-274K 10(N) 100-4.99K 5(V) 47-332K 47-332K 25(P) +0.05% (W) 47-274K 10(N) 100-4.99K 5(V) +0.02% (V) 100-4.99K 100-4.99K 25(P), 10(N), 5(V) 10-46.4 50(Q) 47-1M 25(P) +0.5% (D) 10-1M 47-475K 10(N) 100-10K 5(V) 47-1M 25(P), 10(N) +0.25% (C) 47-1M 100-10K 5(V) RG2012 0805 0.1W 0.125W 0.25W 47-1M 25(P) 100V E-24, E-96 +0.1% (B) 47-1M 47-475K 10(N) 100-10K 5(V) 47-475K 25(P) +0.05% (W) 47-475K 47-475K 10(N) 100-10K 5(V) +0.02% (V) 100-10K 100-10K 25(P), 10(N), 5(V) 10-46.4 50(Q) +0.5% (D) 47-1M 10-1M 25(P), 10(N) 100-33.2K 5(V) 47-1M 25(P), 10(N) +0.25% (C) 47-1M 100-33.2K 5(V) RG3216 1206 0.125W 0.25W 150V E-24, E-96 47-1M 25(P), 10(N) +0.1% (B) 47-1M 100-33.2K 5(V) 47-1M 25(P), 10(N) +0.05% (W) 47-1M 100-33.2K 5(V) +0.02% (V) 100-33.2K 100-33.2K 25(P), 10(N), 5(V) www.susumu.co.jp

RG series SUSUMU CO.,LTD Ultra precision 0.02%, 0.05%, 0.1%, 0.25%, 0.5%, tolerance Thin Film Chip Resistor Performance Dimensions & Footprints Dimensions inch (mm) L W P T P L P .040±.002 .020±.002 .008±.004 .014±.002 R G 1005 (1.0 ± 0.05) (0.5 ± 0.05) (0.2 ± 0.1) (0.35 ± 0.05) .063 ± .008 .031 ± .008 .012 ± .008 0.016 ± .004 W R G 1608 (1.6 ± 0.2) (0.8 ± 0.2) (0.3 ± 0.2) (0.4 ± 0.1) .079 ± .008 .049 ± .008 .016 ± .008 0.016 ± .004 R G 2012 (2.0 ± 0.2) (1.25 ± 0.2) (0.4 ± 0.2) (0.4 ± 0.1) .126 ± .008 .063 ± .008 .02 ± .01 0.016 ± .004 T R G 3216 (3.2 ± 0.2) (1.6 ± 0.2) (0.5 ± 0.25) (0.4 ± 0.1) Dimensions (mm) a b c c RG1005 0.5 1.6 0.6 RG1608 1.0 3.0 1.2 a RG2012 1.2 4.0 1.7 b RG3216 2.0 5.0 2.0 Power Derating Curve Recommended Reflow Curve Sldering Temperature Profile :For operation above 85degC, power rating must be 300 derated according to the following chart Peak Temperature 260oC 250 1-5oC/Sec. 1-5oC/Sec. 200 150 10 Sec. 100 120 Sec. 50 1-9oC/Sec. 0 Ordering information RG 1608 N - 104 - W - T5 TYPE Size TCR R-Values Tolerance Package 1005 V=5ppm/oC 3 digits for E24 series P=0.02% T1=1000 1608 N=10ppm/oC (Ex.104=100K ohm) W=0.05% T5=5000 2012 P=25ppm/oC 4 digits for E96 series B=0.1% 3216 Q=50ppm/oC (Ex.4992=49.9K ohm) C=0.25% R=100ppm/oC D=0.5% www.susumu.co.jp

RG series SUSUMU CO.,LTD Ultra precision 0.02%, 0.05%, 0.1%, 0.25%, 0.5%, tolerance Thin Film Chip Resistor Reliability Test Data Tape & Reel Dimensions (mm) www.susumu.co.jp
