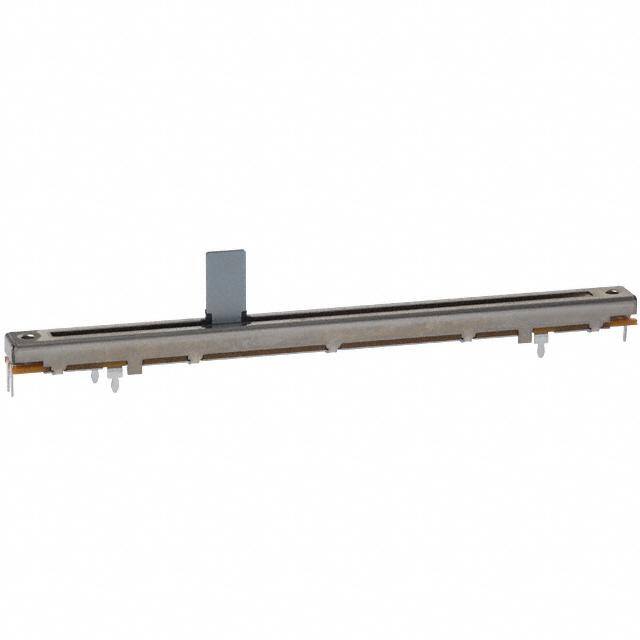

Slide Potentiometers/EVANF Mono Faders for Audio Mixers Japan Malaysia Slide Potentiometers Type: EVANF ■ Features ● Slim-type fader series: Width=9.0 mm, Height=8.0 mm ● Excellent cost performance for mid and low level audio mixe rs ■ Recommended Applications ● Fade control for audio mixers (popular type) ● MTR (Multi-track recorders) ● Paper position sensors (detectors) for PPC ■ Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 11 12 E V A N F ProductCode Specifications LeverTrims&Dimensions Taper&Resistance ■ Specifi cations Taper Taper B Others Power Rating 100.0 mm Type 0.5 W 0.25 W Max. Operating Voltage: 30 Vac +40 % Resistance ✽ 5 k(cid:1), 10 k(cid:1), 20 k(cid:1) ±20 % –20 % Taper ✽ A, B, D, Y Maximum Attenuation 100 dB min. (Except taper B) Operating Force 0.1 N to 1.0 N Operating Life 50000 cycles min. Minimum Quantity/Packing Unit 100 pcs. (Tray Pack) Quantity/Carton 500 pcs. Note: Customer’s design for Lever Shape can be also negotiable. Design and specifi cations are each subject to change without notice. Ask factory for the current technical specific ations before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. Dec. 2005

Slide Potentiometers/EVANF ■ Dimensions in mm (not to scale) ● 100.0 mm Travel, Single...........................................................................................................................................EVANF 5 1 0. NoTapScrew 3.5 ± 9.0 0 0.4 #3 3.0 8.0±0.3 14.5 vel) R0.5 ±0.01.0(Tra±120.00.2±128.01.0 0.3 (77.0) (96.0) (127.1) ±127.50.1 ±96.00.1 0 ± 1 0 8. 2-f2.0+00.1 1.2 0.1 3.5±0.1 1.75±0.10 #2 #1 3-f1.5+00.1 1.20+-00.1.15 RecommendedPWBpiercingplan 1.4±0.2 (Pitchtolerance:±0.1) (1.75) Viewfrommountingside (3.5) Design and specifi cations are each subject to change without notice. Ask factory for the current technical specific ations before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. Mar. 2005
