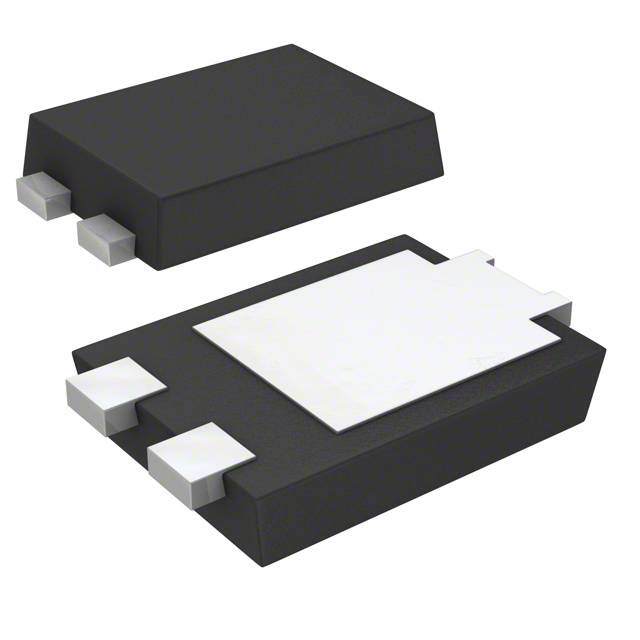

A Product Line of Diodes Incorporated DXT690BP5 45V NPN HIGH GAIN TRANSISTOR IN POWERDI®5 Features Mechanical Data • BVCEO > 45V • Case: PowerDI5 • IC = 3A High Continuous Collector Current • Case Material: Molded Plastic, “Green” Molding Compound • ICM = 6A Peak Collector Current UL Flammability Classification Rating 94V-0 • High gain device >400 @1A • Moisture Sensitivity: Level 1 per J-STD-020 • RCE(sat) = 77mΩ for low equivalent On-Resistance • Terminals: Finish – Matte Tin annealed over Copper leadframe • hFE specified up to 6A for a high gain hold up Solderable per MIL-STD-202, Method 208 • 43% smaller than SOT223; 60% smaller than TO252 • Weight: 0.093 grams (approximate) • Maximum height just 1.1mm • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2) Applications • Halogen and Antimony Free. “Green” Device (Note 3) • Qualified to AEC-Q101 Standards for High Reliability • LED driver • PPAP Capable (Note 4) • Motor driver • Power Switches • DC-DC Converters • IGBT & MOSFET Gate Drivers • Automotive Circuits C POWERDI5 B E Top View Bottom View Device Schematic Top View Pin-Out Ordering Information (Notes 4 & 5) Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel DXT690BP5-13 AEC-Q101 DXT690B 13 16 5,000 DXT690BP5Q-13 Automotive DXT690B 13 16 5,000 Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/. 5. For packaging details, go to our website at http://www.diodes.com/products/packages.html Marking Information DXT690B = Product Type Marking Code DXT690B = Manufacturers’ Code Marking K = Factory Designator YYWW = Date Code Marking YY = Last Two Digits of Year (ex: 09 for 2009) YYWWK WW = Week code (01 to 53) PowerDI is a registered trademark of Diodes Incorporated. DXT690BP5 1 of 7 February 2014 Document number: DS31801 Rev. 3 - 2 www.diodes.com © Diodes Incorporated

A Product Line of Diodes Incorporated DXT690BP5 Absolute Maximum Ratings (@TA = +25°C, unless otherwise specified.) Characteristic Symbol Value Unit Collector-Base Voltage VCBO 60 V Collector-Emitter Voltage VCEO 45 V Emitter-Base Voltage VEBO 7 V Continuous Collector Current IC 3 A Peak Pulse Current ICM 6 A Base Current IB 0.5 A Thermal Characteristics (@TA = +25°C, unless otherwise specified.) Characteristic Symbol Value Unit (Note 6) 3.2 Power Dissipation (Note 7) PD 1.7 W (Note 8) 0.74 (Note 6) 39 Thermal Resistance, Junction to Ambient Air (Note 7) RθJA 75 (Note 8) 169 °C/W Thermal Resistance, Junction to Leads (Note 9) RθJL 9 Thermal Resistance, Junction to Case (Note 10) RθJC 10 Operating and Storage Temperature Range TJ, TSTG -55 to +150 °C ESD Ratings (Note 11) Characteristic Symbol Value Unit JEDEC Class Electrostatic Discharge - Human Body Model ESD HBM 4,000 V 3A Electrostatic Discharge - Machine Model ESD MM 400 V C Notes: 6. For a device mounted with the exposed collector pad on 50mm x 50mm 2oz copper that is on a single-sided 1.6mm FR4 PCB; device is measured under still air conditions whilst operating in a steady-state. 7. Same as note (6), except mounted on 25mm x 25mm 1oz copper. 8. Same as note (6), except mounted on minimum recommended pad (MRP) layout. 9. Thermal resistance from junction to solder-point (on the exposed collector pad). 10. Thermal resistance from junction to the top of the case. 11. Refer to JEDEC specification JESD22-A114 and JESD22-A115. PowerDI is a registered trademark of Diodes Incorporated. DXT690BP5 2 of 7 February 2014 Document number: DS31801 Rev. 3 - 2 www.diodes.com © Diodes Incorporated

A Product Line of Diodes Incorporated DXT690BP5 Thermal Characteristics and Derating Information 10 3.5 V ) ) CE(sat) W rrent (A 1 Limited ation ( 23..50 520omz FmR x4 50mm u DC p 2.0 25mm x 25mm C si 1oz FR4 or 1s Dis 1.5 ollect100m 100ms 10ms 1ms wer 1.0 M1oRzP F R4 C Single Pulse. TA=25°C 100µs Po 0.5 C 50mm x 50mm 2oz FR4 x I 10m a 0.0 100m 1 10 M 0 25 50 75 100 125 150 175 V Collector-Emitter Voltage (V) Temperature (°C) CE Safe Operating Area Derating Curve Single Pulse. T =25°C W) 40 50mm x 50mm W) 50mm x 50mAm C/ 2oz FR4 (100 2oz FR4 n e (° 30 atio c D=0.5 p esistan 20 D=0.2 Single Pulse r Dissi 10 R 10 we al D=0.05 o m P D=0.1 her 1000µ 1m 10m 100m 1 10 100 1k Max 1100µ 1m 10m 100m 1 10 100 1k T Pulse Width (s) Pulse Width (s) Transient Thermal Impedance Pulse Power Dissipation 4 )180 W T = 25°C C/160 A ° ) 3 (140 W e ( nc120 1 oz. weight Copper g 2 oz. weight Copper a n st100 ati 2 si R e 80 R er mal 4600 2 oz. weight Copper Pow 1 1 oz. weight Copper r e h 20 0 T 10 100 1000 10000 10 100 1000 10000 Copper Area (sq mm) Copper Area (sq mm) Thermal Resistance vs. Cu Area Power Rating vs. Cu Area PowerDI is a registered trademark of Diodes Incorporated. DXT690BP5 3 of 7 February 2014 Document number: DS31801 Rev. 3 - 2 www.diodes.com © Diodes Incorporated

A Product Line of Diodes Incorporated DXT690BP5 Electrical Characteristics (@TA = +25°C, unless otherwise specified.) Characteristic Symbol Min Typ Max Unit Test Condition OFF CHARACTERISTICS Collector-Base Breakdown Voltage BVCBO 60 145 — V IC = 100μA, IE = 0 Collector-Emitter Breakdown Voltage (Note 12) BVCEO 45 65 — V IC = 10mA, IB = 0 Emitter-Base Breakdown Voltage BVEBO 7 8.2 — V IE = 100μA, IC = 0 Collector-Base Cutoff Current ICBO — <1 20 nA VCB = 35V, IE = 0 Collector-Emitter Cutoff Current ICES — <1 20 nA VCB = 35V, VBE = 0 Emitter-Base Cutoff Current IEBO — <1 20 nA VEB = 5.6V, IC = 0 ON CHARACTERISTICS (Note 12) — 50 85 IC = 100mA, IB = 0.5mA Collector-Emitter Saturation Voltage VCE(SAT) —— 224100 336200 mV IICC == 12AA,, IIBB == 54m0mAA — 230 350 IC = 3A, IB = 150mA Base-Emitter Saturation Voltage VBE(SAT) — 1.0 1.2 V IC = 3A, IB = 150mA Base-Emitter Turn-On Voltage VBE(ON) — 0.9 1.1 V IC = 3A, VCE = 2V 500 700 — IC = 100mA, VCE = 2V DC Current Gain hFE 410500 630500 —— — IICC == 12AA,, VVCCEE == 22VV 60 120 — IC = 3A, VCE = 2V AC CHARACTERISTICS Transition Frequency fT 150 — — MHz IC = 50mA, VCE = 5V, f = 50MHz Output Capacitance Cobo — 16 — pF VCB = 10V, f = 1MHz Switching Times ton — 33 — ns VCC = 10V, IC = 500mA, toff — 1300 — ns IB1 = -IB2 = 50mA Note: 12. Pulse Test: Pulse width ≤300μs. Duty cycle ≤2.0%. PowerDI is a registered trademark of Diodes Incorporated. DXT690BP5 4 of 7 February 2014 Document number: DS31801 Rev. 3 - 2 www.diodes.com © Diodes Incorporated

A Product Line of Diodes Incorporated DXT690BP5 Typical Electrical Characteristics (@TA = +25°C, unless otherwise specified.) 1.0 Tamb=25°C I /I=100 C B -55°C 0.8 100m I /I=200 V) C B V) 0.6 25°C ( ( SAT) IC/IB=100 SAT)0.4 100°C E(10m E( C C V V I /I=10 0.2 C B 1m 0.0 1m 10m 100m 1 10 1m 10m 100m 1 I Collector Current (A) I Collector Current (A) C C V v I V v I CE(SAT) C CE(SAT) C 1000 V =2V 900 I /I=100 1.2 CE 1.0 C B 800 100°C malised Gain 0001....4680 25°C-55°C 345670000000000 cal Gain (h)FE (V)BE(SAT) 00..68 -55°C25°1C00°C or 200 pi V N 0.2 Ty 0.4 100 0.0 0 1m 10m 100m 1 10 1m 10m 100m 1 10 I Collector Current (A) I Collector Current (A) C C h v I V v I FE C BE(SAT) C 1.0 V =2V CE 0.8 -55°C ) V ( N) 25°C O E( 0.6 B V 100°C 0.4 1m 10m 100m 1 10 I Collector Current (A) C V v I BE(ON) C PowerDI is a registered trademark of Diodes Incorporated. DXT690BP5 5 of 7 February 2014 Document number: DS31801 Rev. 3 - 2 www.diodes.com © Diodes Incorporated

A Product Line of Diodes Incorporated DXT690BP5 Package Outline Dimensions Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version. A D POWERDI5 D2 Dim Min Max A2 b2 A 1.05 1.15 A2 0.33 0.43 L b1 0.80 0.99 b2 1.70 1.88 D 3.90 4.05 E E2 D2 3.054 Typ E1 E 6.40 6.60 e 1.84 Typ W E1 5.30 5.45 L1 E2 3.549 Typ L 0.75 0.95 e L1 0.50 0.65 W 1.10 1.41 b1 b1 A2 All Dimensions in mm Suggested Pad Layout Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version. X Dimensions Value (in mm) Y C 1.840 G 0.852 X 3.360 X1 1.390 Y 4.860 X1 Y1 1.400 (2x) G Y1 (2x) C PowerDI is a registered trademark of Diodes Incorporated. DXT690BP5 6 of 7 February 2014 Document number: DS31801 Rev. 3 - 2 www.diodes.com © Diodes Incorporated
