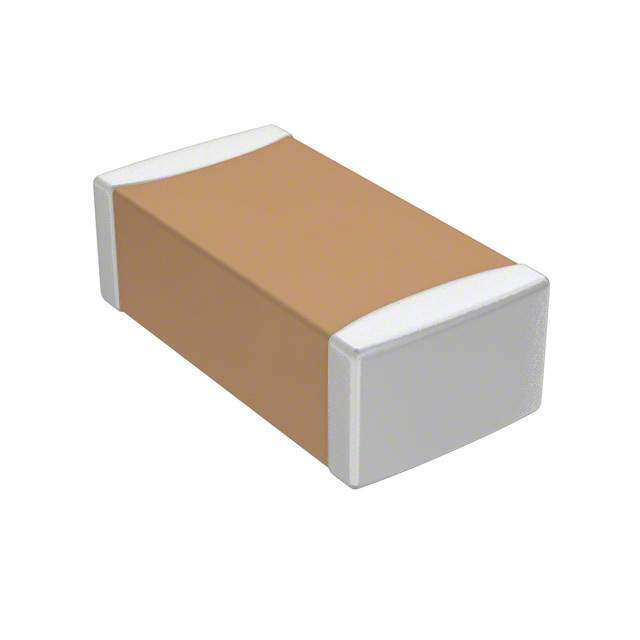

SPECIFICATION (Reference sheet) · Supplier : Samsung electro-mechanics · Samsung P/N: CL05B222MP5NNNC · Product : Multi-layer Ceramic Capacitor · Description : CAP, 2.2nF, 10V, ±20%, X7R, 0402 A. Samsung Part Number CL 05 B 222 M P 5 N N N C ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ① Series Samsung Multi-layer Ceramic Capacitor ② Size 0402 (inch code) L: 1.00 ± 0.05 ㎜ W: 0.50 ± 0.05 ㎜ ③ Dielectric X7R ⑧ Inner electrode Ni ④ Capacitance 2.2 nF Termination Cu ⑤ Capacitance ±20 % Plating Sn 100% (Pb Free) tolerance ⑨ Product Normal ⑥ Rated Voltage 10 V ⑩ Special Reserved for future use ⑦ Thickness 0.50 ± 0.05 ㎜ ⑪ Packaging Cardboard Type, 7" reel B. Structure & Dimension Dimension(㎜) Samsung P/N L W T BW CL05B222MP5NNNC 1.00 ± 0.05 0.50 ± 0.05 0.50 ± 0.05 0.25 ± 0.10

C. Samsung Reliablility Test and Judgement Condition Judgement Test condition Capacitance Within specified tolerance 1㎑ ±10% / 1.0±0.2Vrms *A capacitor prior to measuring the capacitance is heat Tan δ (DF) 0.05 max. treated at 150℃+0/-10℃ for 1 hour and maintained in ambient air for 24±2 hours. Insulation 10,000Mohm or 100Mohm×㎌ Rated Voltage 60~120 sec. Resistance Whichever is smaller Appearance No abnormal exterior appearance Microscope (×10) Withstanding No dielectric breakdown or 250% of the rated voltage Voltage mechanical breakdown Temperature X7R Characteristics (From-55℃ to 125℃, Capacitance change should be within ±15%) Adhesive Strength No peeling shall be occur on the 500g·f, for 10±1 sec. of Termination terminal electrode Bending Strength Capacitance change : within ±12.5% Bending to the limit (1㎜) with 1.0mm/sec. Solderability More than 75% of terminal surface SnAg3.0Cu0.5 solder is to be soldered newly 245±5℃, 3±0.3sec. (preheating : 80~120℃ for 10~30sec.) Resistance to Capacitance change : within ±7.5% Solder pot : 270±5℃, 10±1sec. Soldering Heat Tan δ, IR : initial spec. Vibration Test Capacitance change : within ± 5% Amplitude : 1.5mm Tan δ, IR : initial spec. From 10㎐ to 55㎐ (return : 1min.) 2hours × 3 direction (x, y, z) Moisture Capacitance change : within ±12.5% With rated voltage Resistance Tan δ : 0.075 max 40±2℃, 90~95%RH, 500+12/-0hrs IR : 500Mohm or 25Mohm × ㎌ Whichever is smaller High Temperature Capacitance change : within ±12.5% With 200% of the rated voltage Resistance Tan δ : 0.075 max Max. operating temperature IR : 1,000Mohm or 50Mohm × ㎌ 1000+48/-0hrs Whichever is smaller Temperature Capacitance change : within ±7.5% 1 cycle condition Cycling Tan δ, IR : initial spec. Min. operating temperature → 25℃ → Max. operating temperature → 25℃ 5 cycle test ※ The reliability test condition can be replaced by the corresponding accelerated test condition. D. Recommended Soldering method : Reflow ( Reflow Peak Temperature : 260+0/-5℃, 10sec. Max ) Product specifications included in the specifications are effective as of March 1, 2013. Please be advised that they are standard product specifications for reference only. We may change, modify or discontinue the product specifications without notice at any time. So, you need to approve the product specifications before placing an order. Should you have any question regarding the product specifications, please contact our sales personnel or application engineers.

- Disclaimer & Limitation of Use and Application - The products listed in this Specification sheet are NOT designed and manufactured for any use and applications set forth below. Please note that any misuse of the products deviating from products specifications or information provided in this Spec sheet may cause serious property damages or personal injury. We will NOT be liable for any damages resulting from any misuse of the products, specifically including using the products for high reliability applications as listed below. If you have any questions regarding this 'Limitation of Use and Application', you should first contact our sales personnel or application engineers. ① Aerospace/Aviation equipment ② Automotive or Transportation equipment (vehicles, trains, ships, etc) ③ Medical equipment ④ Military equipment ⑤ Disaster prevention/crime prevention equipment ⑥ Any other applications with the same as or similar complexity or reliability to the applications set forth above.
