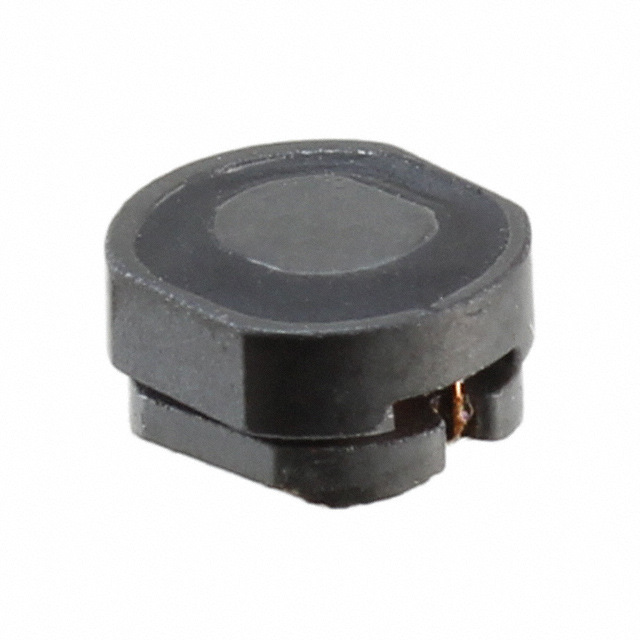

POWER INDUCTORS <SMD Type: CDR Series> Type: CDR63B ◆ Product Description ・6.5×5.9mm Max.(L×W), 3.5mm Max. Height. ・Inductance range: 10～68μH ・Rated current range: 0.42～1.0A. ・In addition to the standards versions shown here, custom inductors are also available to meet your exact requirements. ◆ Feature ・Magnetically shielded construction. ・Storage temperature range: -40℃～+100℃. ・Operating temperature range: -40℃～+100℃ (Including coil’s self temperature rise). ・Ideally used in Notebook PC ,LCD TV ,Game machine ,HDD,DSC/DVC, etc as DC-DC converter inductors. ・RoHS compliance. ◆ Dimensions (mm) 5.6±0.3 3.2±0.3 4.9 5 3 4 . . 0 1 ± 5 .2 5. 6 φ ◆◆◆◆ Land Pattern (mm) 5.5 PART OF ELECTRODE 7 2 . . 1 6 R 1.0 PART OF SILK SCREEN Please refer to the sales offices on our website for a representative near you www.sumida.com 1/2

POWER INDUCTORS <SMD Type: CDR Series> Type: CDR63B ◆◆◆◆Specification Inductance D.C.R.(Ω) Rated S.R.F. Part ※Na me Stamp (at 2(.μ52H M) Hz) (a[Mt 2a0x℃.] ) Curr※en1t (Ａ) ([MTyHpz.]) CDR63BNP-100M□ A 10±20% 0.14 1.00 35.3 CDR63BNP-120M□ B 12±20% 0.16 0.94 32.2 CDR63BNP-150M□ C 15±20% 0.18 0.86 29.3 CDR63BNP-180M□ D 18±20% 0.25 0.78 26.7 CDR63BNP-220M□ E 22±20% 0.32 0.76 23.1 CDR63BNP-270M□ F 27±20% 0.36 0.64 20.8 CDR63BNP-330L□ G 33±15% 0.41 0.61 18.2 CDR63BNP-390L□ H 39±15% 0.47 0.53 17.0 CDR63BNP-470L□ J 47±15% 0.51 0.50 15.3 CDR63BNP-560L□ K 56±15% 0.72 0.46 14.1 CDR63BNP-680L□ L 68±15% 0.82 0.42 12.1 ※※※※ Description of part name CDR63BNP-100M□ B Box C Carrier Tape ※1. Rated current: The D.C. current at which the inductance decreases to 90% of it’s initial value or when △t=40℃, whichever is lower(Ta=20℃). Please refer to the sales offices on our website for a representative near you www.sumida.com 2/2
