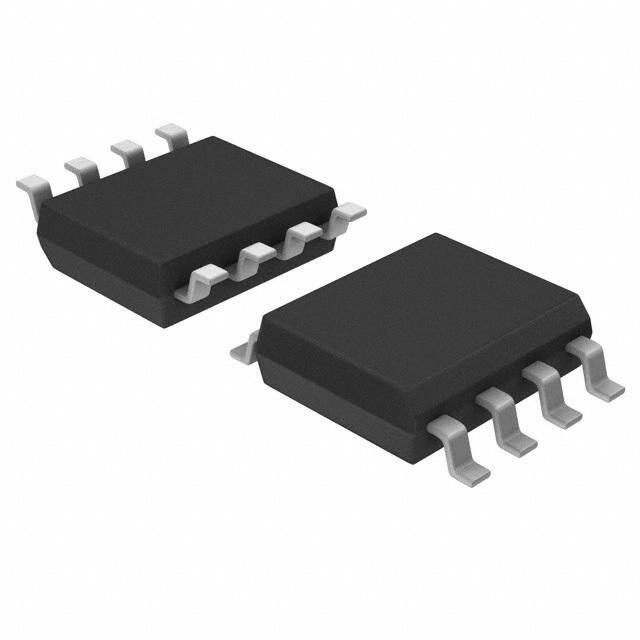

Steering Diode Arrays - ESD Suppressors CDA Series-G (RoHS Device) Features (cid:2) (16kV) IEC 61000-4-2 capable (cid:2) Fast Reverse Recovery Time (cid:2) Fast Turn on Time (cid:2) Low Capacitance (cid:2) SMD Packages Applications (cid:2) Signal Termination (cid:2) Signal Conditioning (cid:2) ESD Suppression (cid:2) Transient Suppression Schematics 1 1 1 CDAAQ20-G 20 pin CDA2Q20-G 20 pin CDA3S06-G 6 pin 1 1 1 CDA4S14-G 4 pin CDA5Q24-G 24 pin CDA6N08-G 8 pin 1 1 CDA7Q24-G 24 pin CDA8S03-G 3 pin CDA9N08-G 8 pin

Steering Diode Arrays - ESD Suppressors Absolute Maximum Ratings: ( Ta = 25oC ) Symbol Parameter Value Units T Operating temperature -40 to +85 0C OP V Supply voltage (rail to rail) 8 V S I Continuous forward current * 50 mA F * One diode conducting. Electrical Ratings: ( Ta = 25oC ) Symbol Characteristic Min Max Units Test Condition V Forward voltage 0.6 0.95 V I = 50 ma F F V Reverse breakdown voltage 7.2 - V I = 1 ma R R I Reverse leakage current + 0.1 + 2.0 uA 7.1v L C Capacitance 1.0 5.0 pF @ 1Mhz T V Peak ESD voltage capability 16 kV IEC 61000-4-2 PV Application: (ESD Suppression) ( Signal Conditioning ) Signal Ringing Transient Transient Ringing Eliminate + Rail suppressed + Rail Driver Receiver Driver Receiver - Rail or GND - Rail or GND Package Information: L p p d p d d d p W S03 W S14 W S06 W N08 – W20 –Q20 –Q24 L L L Package Total Number L + 0.2 W + 0.2 p + 0.1 Pkg. Height d + 0.05 Code Power of Pins + 0.2 S03 225 mw 3 2.92 2.30 1.91 0.95 0.43 S14 225 mw 4 2.92 2.30 1.91 0.95 0.43 S06 225 mw 6 2.92 2.80 0.95 0.95 0.43 N08 400 mw 8 4.83 5.99 1.27 1.60 0.41 W20 1200mw 20 12.70 10.36 1.27 2.40 0.41 Q20 1000mw 20 8.66 5.99 0.635 1.60 0.25 Q24 1000mw 24 8.66 5.99 0.635 1.60 0.25 Ordering Information: CDAA Q20 -G Type Package RoHS Compliant CDAA S03 = 3 pin SOT23 CDA 2 S14 = 4 pin SOT23 CDA 3 S06 = 6 pin SOT23 CDA 4 N08 = 8 pin Narrow SOIC CDA 5 W20 = 20 pin Wide SOIC CDA 6 Q20 = 20 pin QSOP CDA 7 Q24 = 24 pin QSOP CDA8 CDA9
