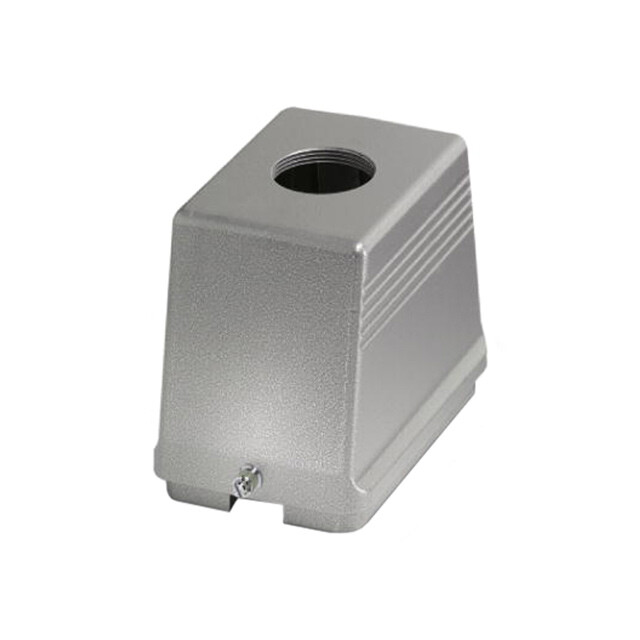

https://www.phoenixcontact.com/pi/products/1647310 Housing - HC-B 48-TFL-96/O1STM40G - 1647310 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) HEAVYCON sleeve housing B48, for single locking latch, height 96 mm, with thread 1x M40, straight conductor exit Key Commercial Data Packing unit 1 pc GTIN GTIN 4017918969462 Technical data Dimensions Height 96 mm Width 89 mm Length 131.5 mm Ambient conditions Degree of protection (IP) IP65 Ambient temperature (operation) -40 °C ... 125 °C General Note For contact inserts HC-B48, DD216, M Size B48 Housing type Sleeve housing Color gray Locking type for single locking latch No. of cable outlets 1 Cable outlet straight Screw connection none Type of the screw connection 1x M40 Housing material Aluminum die-cast 04/03/2020   Page 1 / 5

https://www.phoenixcontact.com/pi/products/1647310 Housing - HC-B 48-TFL-96/O1STM40G - 1647310 Technical data General Housing surface material Powder-coated, gray Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings Dimensional drawing Dimensional drawing Classifications eCl@ss eCl@ss 10.0.1 27440202 eCl@ss 4.0 27140800 eCl@ss 4.1 27140800 eCl@ss 5.0 27143400 eCl@ss 5.1 27261200 eCl@ss 6.0 27261200 eCl@ss 7.0 27440202 eCl@ss 8.0 27440202 eCl@ss 9.0 27440202 ETIM ETIM 3.0 EC000437 ETIM 4.0 EC000437 ETIM 5.0 EC000437 ETIM 6.0 EC000437 04/03/2020   Page 2 / 5

https://www.phoenixcontact.com/pi/products/1647310 Housing - HC-B 48-TFL-96/O1STM40G - 1647310 Classifications ETIM ETIM 7.0 EC000437 UNSPSC UNSPSC 6.01 31261502 UNSPSC 7.0901 31261502 UNSPSC 11 31261502 UNSPSC 12.01 31261502 UNSPSC 13.2 31261501 UNSPSC 18.0 31261501 UNSPSC 19.0 31261501 UNSPSC 20.0 31261501 UNSPSC 21.0 31261501 Approvals Approvals Approvals EAC Ex Approvals Approval details   RU C- EAC    DE.AI30.B.01102 Accessories Accessories Full screw connection Cable gland - G-INS-M40-M68N-PNES-GY - 1411128 Cable gland, cable gland material: PA, external cable diameter 19 mm ... 28 mm, shielding: no, connecting thread: M40 x 1.5, color: silver-gray RAL 7001     04/03/2020   Page 3 / 5

https://www.phoenixcontact.com/pi/products/1647310 Housing - HC-B 48-TFL-96/O1STM40G - 1647310 Accessories Cable gland - G-INS-M40-M68N-PNES-BK - 1411137 Cable gland, cable gland material: PA, external cable diameter 19 mm ... 28 mm, shielding: no, connecting thread: M40 x 1.5, color: jet black RAL 9005     Cable gland - G-INS-M40-M68N-NNES-S - 1411167 Cable gland, cable gland material: Nickel-plated brass, external cable diameter 19 mm ... 28 mm, shielding: no, connecting thread: M40 x 1.5, color: silver, with O-ring     Cable gland - HC-M-KV-M40(27-34) - 1607729 Metal screw connection up to 5 bar, thread length: 8 mm, cable diameter: 27 ... 34 mm, WAF 50, screw connection: M40     Cable gland - G-INSEC-M40-M68N-NCRS-S - 1411192 Cable gland, cable gland material: Nickel-plated brass, external cable diameter 19 mm ... 27 mm, shielding: yes, connecting thread: M40 x 1.5, color: silver, with O-ring     Cable gland - HC-M-KV-Z-M40 - 1646175 Metal screw connection with strain relief clamp, thread length: 8 mm, cable sealing area: 24 - 33 mm, clamping area: 26 - 36 mm, SW 50, screw connection: M40     Plug for cable screw gland 04/03/2020   Page 4 / 5

https://www.phoenixcontact.com/pi/products/1647310 Housing - HC-B 48-TFL-96/O1STM40G - 1647310 Accessories Screw plug - HC-M-BS-M40 - 1645875 Filler plug, metal, size: M40     Reducing adapter Reducing adapter - REDUC-M-KV-M40/M32 - 1647640 Reducing adapter, material: Brass, nickel-plated, connecting thread: M40 x 1.5, color: silver, with O-ring     Phoenix Contact 2020 © - all rights reserved http://www.phoenixcontact.com PHOENIX CONTACT GmbH & Co. KG Flachsmarktstr. 8 32825 Blomberg Germany Tel. +49 5235 300 Fax +49 5235 3 41200 http://www.phoenixcontact.com 04/03/2020   Page 5 / 5
