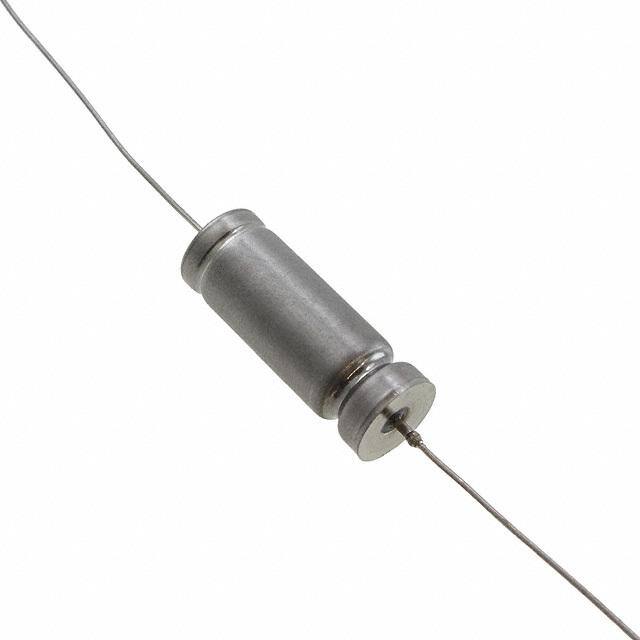

TWC-Y SERIES High Temperature – COTS-Plus 200ºC Wet Tantalum The TWC-Y high temperature series represents a COTS-Plus version of conventional wet electrolytic tantalum capacitors that are designed for use at 200°C. The components listed are now capable of 500 hours of operation at extreme temperature with the applicable derated voltage. This design includes a welded tantalum can and header assembly that provides a hermetic seal to withstand harsh environments. This is a new product line so please contact the factory for availability and additional details. CASE DIMENSIONS: millimeters (inches) AVX L D D Standard E Case +0.79 (0.031) Basic Case Insulated Case Case Size ±6.35 (0.250) Size -0.41 (0.016) ±0.41 (0.016) Max T1 A 11.51 (0.453) 4.78 (0.188) 5.56 (0.219) 38.10 (1.500) T2 B 16.28 (0.641) 7.14 (0.281) 7.92 (0.312) 57.15 (2.250) T3 D 19.46 (0.766) 9.52 (0.375) 10.31 (0.406) 57.15 (2.250) T4 E 26.97 (1.062) 9.52 (0.375) 10.31 (0.406) 57.15 (2.250) OUTLINE DIMENSIONS W E L E 200°C LIFE TEST: These components are capable of 500 hours of operation at 200°C with the applicable 60% derated voltage. Following the life test components which are stabilized at 25°C ± 5°C shall exhibit: Leakage less than 200% the original requirement or ± 10μA F D (whichever is greater) ESR not greater than 200% the original requirement Terminal welded to case (T) Capacitance increase less than 10% or decrease less than 20% the initial measurement F 6.35 (0.250) W 0.64 +0.05 Case (.025 +.002) T 2.380 (.094) HOW TO ORDER AVX PART NUMBER: TWC B 476 * 050  C Y Z ^ 00 Type Case Capacitance Capacitance Voltage Insulation Sleeve ESR Qualification Reliability Termination Custom Test Size Code Tolerance Code C = Without Sleeve C = Standard ESR Y = High Temp. Z = Non-ER Finish Options pF code: M = ±20% S = With Sleeve 00 = Sn/Pb 60/40 00 = Standard 1st two digits K = ±10% 07 = 100% Tin represent significant figures 3rd digit represents multiplier (number of LEAD-CFOREMEP COONMENPTATIBLE zeros to follow) For RoHS compliant products, please select correct termination style. TECHNICAL SPECIFICATIONS Technical Data: Unless otherwise specified, all technical data relate to an ambient temperature of +25°C Capacitance Tolerance: ±10%; ±20% Rated Voltage (V ) ≤ 85°C: 6 8 10 15 25 30 50 60 75 100 125 R Category Voltage (V ) ≤125°C: 4 5 7 10 15 20 30 40 50 65 85 C High Temp, Voltage (V ) ≤ 200°C: 3.6 4.8 6 9 12 18 30 36 45 60 75 T Surge Voltage (V ) ≤125°C: 6.9 9.2 11.5 17.3 28.8 34.5 57.5 69 86.3 115 144 S Temperature Range: -55°C to +200°C 130 The Important Information/Disclaimer is incorporated in these specifications by reference and should be reviewed in full before placing any order. 100516

TWC-Y SERIES High Temperature – COTS-Plus 200ºC Wet Tantalum STANDARD RATINGS & PART NUMBER REFERENCE Cap (μF) DC Rated DC Leakage (μA) ESR Max Maximum Capacitance Case Size DF AVX Part Number 25°C Voltage (V) +85ºC (Ohms) Change (%) +25ºC (max) Standard AVX at 120Hz at 85ºC & +125ºC at 120Hz -55ºC +85ºC +125ºC 6 VDC at 85°C 4 VDC at 125°C 3.6 VDC at 200°C TWCB147*006CYZ0^00 140 6 1 3 21 1.99 -40 14 16 T2 B TWCD337*006CYZ0^00 330 6 2 7.9 36 1.45 -44 14 16 T3 D TWCD567*006CYZ0^00 560 6 2 13 55 1.30 -64 17.5 20 T3 D 8 VDC at 85°C 5 VDC at 125°C 4.8 VDC at 200°C TWCB127*008CYZ0^00 120 8 1 2 20 2.21 -44 17.5 20 T2 B TWCD297*008CYZ0^00 290 8 2 6 34 1.56 -64 17.5 20 T3 D TWCD437*008CYZ0^00 430 8 2 14 46 1.42 -64 17.5 20 T3 D 10 VDC at 85°C 7 VDC at 125°C 6 VDC at 200°C TWCB107*010CYZ0^00 100 10 1 4 15 1.99 -36 14 16 T2 B TWCD257*010CYZ0^00 250 10 2 10 30 1.59 -40 14 16 T3 D TWCD397*010CYZ0^00 390 10 2 16 44 1.50 -64 17.5 20 T3 D 15 VDC at 85°C 10 VDC at 125°C 9 VDC at 200°C TWCB706*015CYZ0^00 70 15 1 4 13 2.46 -28 14 16 T2 B TWCD177*015CYZ0^00 170 15 2 10 25 1.95 -32 14 16 T3 D TWCD277*015CYZ0^00 270 15 2 16 32 1.57 -56 17.6 20 T3 D 25 VDC at 85°C 15 VDC at 125°C 15 VDC at 200°C TWCA226*025CYZ0^00 22 25 1 2 6.6 3.98 -20 10.5 12 T1 A TWCA686*025CYZ0^00 68 25 2 9 22 4.29 -50 12 15 T1 A TWCB107*025CYZ0^00 100 25 1 10 15 1.99 -28 13 15 T2 B TWCD127*025CYZ0^00 120 25 2 6 21 2.32 -32 13 15 T3 D TWCD187*025CYZ0^00 180 25 2 18 26 1.92 -48 13 15 T3 D TWCB277*025CYZ0^00 270 25 3 16 55 2.70 -62 13 16 T2 B TWCD567*025CYZ0^00 560 25 7 28 76 1.80 -77 20 25 T3 D 30 VDC at 85°C 20 VDC at 125°C 18 VDC at 200°C TWCA156*030CYZ0^00 15 30 1 2 5 4.42 -20 10.5 12 T1 A TWCA566*030CYZ0^00 56 30 2 9 22 5.21 -48 12 15 T1 A TWCB686*030CYZ0^00 68 30 1 8 13 2.54 -24 13 15 T2 B TWCD107*030CYZ0^00 100 30 2 12 17 2.26 -28 10.5 12 T3 D TWCD157*030CYZ0^00 150 30 2 18 23 2.03 -48 13 15 T3 D TWCB227*030CYZ0^00 220 30 3 16 42 2.53 -60 13 16 T2 B TWCE307*030CYZ0^00 300 30 8 32 31 1.37 -60 25 25 T4 E TWCD397*030CYZ0^00 390 30 6 18 53 1.80 -65 18 25 T3 D TWCD477*030CYZ0^00 470 30 8 32 64 1.81 -70 20 25 T3 D TWCE567*030CYZ0^00 560 30 9 36 55 1.30 -65 25 30 T4 E 50 VDC at 85°C 30 VDC at 125°C 30 VDC at 200°C TWCA106*050CYZ0^00 10 50 1 2 4 5.31 -24 8 9 T1 A TWCA336*050CYZ0^00 33 50 2 9 12.3 4.95 -39 10 12 T1 A TWCB476*050CYZ0^00 47 50 1 9 11 3.11 -28 13 15 T2 B TWCD606*050CYZ0^00 60 50 2 12 12 2.65 -16 10.5 12 T3 D TWCD826*050CYZ0^00 82 50 2 16 15 2.43 -32 13 15 T3 D TWCB127*050CYZ0^00 120 50 4 24 22.5 2.49 -42 12 15 T2 B TWCE167*050CYZ0^00 160 50 8 32 17 1.41 -50 25 25 T4 E TWCD277*050CYZ0^00 270 50 8 32 37 1.82 -51 20 25 T3 D TWCE337*050CYZ0^00 330 50 9 36 38 1.53 -46 25 30 T4 E 60V VDC at 85°C 40 VDC at 125°C 36 VDC at 200°C TWCA825*060CYZ0^00 8.2 60 1 2 4 6.47 -24 8 9 T1 A TWCA276*060CYZ0^00 27 60 3 12 10.2 5.01 -34 10 12 T1 A TWCD506*060CYZ0^00 50 60 2 12 10 2.65 -16 10.5 12 T3 D TWCD686*060CYZ0^00 68 60 2 16 13 2.54 -32 10.5 12 T3 D TWCB107*060CYZ0^00 100 60 4 20 19 2.52 .36 12 15 T2 B TWCE147*060CYZ0^00 140 60 8 32 16 1.52 -40 20 20 T4 E TWCD227*060CYZ0^00 220 60 8 32 30 1.81 -45 16 20 T3 D TWCE277*060CYZ0^00 270 60 9 36 27 1.33 -45 20 25 T4 E 75V VDC at 85°C 50 VDC at 125°C 45 VDC at 200°C TWCA685*075CYZ0^00 6.8 75 1 2 3.5 6.83 -20 8 9 T1 A TWCA226*075CYZ0^00 22 75 3 12 8.5 5.13 -29 10 12 T1 A TWCD566*075CYZ0^00 56 75 2 17 11 2.61 -28 10.5 15 T3 D TWCB826*075CYZ0^00 82 75 4 24 15.2 2.46 -30 12 15 T2 B TWCE117*075CYZ0^00 110 75 9 36 12 1.45 -35 20 20 T4 E TWCD187*075CYZ0^00 180 75 9 36 24.4 2.23 -40 16 20 T3 D TWCE227*075CYZ0^00 220 75 10 40 37 1.80 -40 20 25 T4 E 100 VDC at 85°C 65 VDC at 125°C 60 VDC at 200°C TWCB226*100CYZ0^00 22 100 1 9 7.5 4.52 -16 8 8 T2 B TWCE127*100CYZ0^00 120 100 12 48 25 2.76 -35 15 17 T4 E 125 VDC at 85°C 85 VDC at 125°C 75 VDC at 200°C TWCB276*125CYZ0^00 27 125 5 24 7.2 3.54 -18 12 15 T2 B TWCE826*125CYZ0^00 82 125 12 48 17.4 2.82 -30 15 17 T4 E All technical data relates to an ambient temperature of +25ºC. Capacitance and DF are measured at 120Hz, 0.5RMS with DC bias of 2.2V. DCL is measured at rated voltage after 5 minutes. Note: AVX reserves the right to supply higher voltage rating in the same case size to the same reliability standards. The Important Information/Disclaimer is incorporated in these specifications 131 by reference and should be reviewed in full before placing any order. 100516
