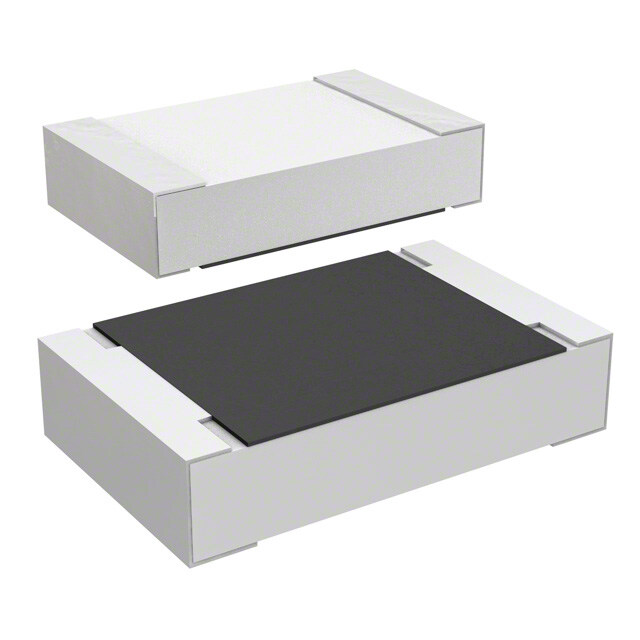

RCWL www.vishay.com Vishay Dale Thick Film Surface Mount Chip Resistors, Wraparound, Low Value (0.1  to 0.91 ) FEATURES • Low resistance values (0.1  to 0.91 ) • Suitable for current sensing and shunts Available • Metal glaze on high quality ceramic • Protective overglaze • Solder contacts on Ni barrier layer Available • AEC-Q200 qualified • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 Note * This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details STANDARD ELECTRICAL SPECIFICATIONS POWER RATING TEMPERATURE RESISTANCE GLOBAL  TOLERANCE CASE SIZE P COEFFICIENT RANGE E-SERIES MODEL 70 °C ± % W ± ppm/°C  600 0.22 to 0.43 RCWL0402 0402 0.063 5 24 400 0.47 to 0.91 400 0.10 to 0.43 RCWL0603 0603 0.1 5 24 200 0.47 to 0.91 300 0.10 to 0.43 RCWL0805 0805 0.125 5 24 200 0.47 to 0.91 300 0.10 to 0.43 RCWL1206 1206 0.25 5 24 200 0.47 to 0.91 RCWL1210 1210 0.33 200 0.10 to 0.91 5 24 RCWL1218 1218 1.0 200 0.10 to 0.91 5 24 RCWL2010 2010 0.5 200 0.10 to 0.91 5 24 RCWL2512 2512 1.0 200 0.10 to 0.91 5 24 Note • Power rating depends on the max. temperature at the solder point, the component placement density and the substrate material • Part marking: reference “Surface Mount Resistor Marking” (www.vishay.com/doc?20020) • The resistance is measured from the top side GLOBAL PART NUMBER INFORMATION Part Number: RCWL0402R470JQEA R C W L 0 4 0 2 R 4 7 0 J Q E A GLOBAL MODEL VALUE TOLERANCE TCR PACKAGING SPECIAL (8 digits) (4 digits) (1 digits) (1 digits) (2 digits) (up to 2 digits) RCWL0402 R = decimal J = ± 5.0 % N = ± 200 ppm/°C EA = lead (Pb)-free, (dash number) RCWL0603 R470 = 0.47  M = ± 300 ppm/°C tape/reel from 1 to 99 as applicable RCWL0805 Q = ± 400 ppm/°C RCWL1206 T = ± 600 ppm/°C TA = tin/lead, RCWL1210 tape/reel RCWL1218 RCWL2010 RCWL2512 Revision: 21-Aug-2018 1 Document Number: 20018 For technical questions, contact: ww2bresistors@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

RCWL www.vishay.com Vishay Dale TECHNICAL SPECIFICATIONS PARAMETER UNIT RCWL0402 RCWL0603 RCWL0805 RCWL1206 RCWL1210 RCWL1218 RCWL2010 RCWL2512 Operating temp. range °C -55 to +155 Maximum operating voltage V (P x R)1/2 Insulation voltage U (1 min) V > 75 > 100 > 200 > 300 > 300 > 300 > 300 > 300 ins Insulation resistance  > 109 Weight/1000 pieces (typical) g 0.65 2 5.5 10 16 29.5 25.5 40.5 DIMENSIONS l b a • Surface mount solder profile recommendations: www.vishay.com/doc?31052 DIMENSIONS in millimeters MODEL REFLOW SOLDERING WAVE SOLDERING L W H T1 T2 a b l a b l RCWL0402 1.0 ± 0.05 0.5 ± 0.05 0.35 ± 0.05 0.25 ± 0.05 0.2 ± 0.1 0.4 0.6 0.5 0.5 0.6 0.5 RCWL0603 1.55 + 0.10 0.85 ± 0.1 0.45 ± 0.05 0.3 ± 0.2 0.3 ± 0.2 0.5 0.9 1.0 0.9 0.9 1.0 - 0.05 RCWL0805 2.0 + 0.20 1.25 ± 0.15 0.45 ± 0.05 0.3 + 0.20 0.3 ± 0.2 0.7 1.3 1.2 0.9 1.3 1.3 - 0.10 - 0.10 RCWL1206 3.2 + 0.10 1.6 ± 0.15 0.55 ± 0.05 0.45 ± 0.2 0.4 ± 0.2 0.9 1.7 2.0 1.1 1.7 2.3 - 0.20 RCWL1210 3.2 ± 0.2 2.5 ± 0.2 0.55 ± 0.05 0.45 ± 0.2 0.4 ± 0.2 0.9 2.5 2.0 1.1 2.5 2.2 RCWL1218 3.2 + 0.10 4.6 ± 0.15 0.55 ± 0.05 0.45 ± 0.2 0.4 ± 0.2 1.05 4.9 1.9 1.25 4.8 1.9 - 0.20 RCWL2010 5.0 ± 0.15 2.5 ± 0.15 0.6 ± 0.1 0.6 ± 0.2 0.6 ± 0.2 1.0 2.5 3.9 1.2 2.5 3.9 RCWL2512 6.3 ± 0.2 3.15 ± 0.15 0.6 ± 0.1 0.6 ± 0.2 0.6 ± 0.2 1.0 3.2 5.2 1.2 3.2 5.2 TEMPERATURE RISE DERATING Rise in °C 987000 0402 0603 0805 1206 1210 Power in % 112000 ure 60 ed 80 erat 50 2010 Rat 60 p m 40 Te 2512 30 40 1218 20 20 10 00 0.1 0.2 0.3 0.4 0.5 0- 55 - 25 0 25 75 100 125 155 175 Power in W 70 Ambient Temperature in °C Revision: 21-Aug-2018 2 Document Number: 20018 For technical questions, contact: ww2bresistors@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

RCWL www.vishay.com Vishay Dale PERFORMANCE TEST CONDITIONS OF TEST TEST LIMITS Thermal shock MIL-STD-202, method 107, -55 °C to +125 °C, 300 cycles at each extreme ± (2.0 % + 0.005 ) R Short time overload 2x rated power; duration according the model ± (0.5 % + 0.005 ) R High temperature exposure MIL-STD-202, method 108, 1000 h at T = 125 °C, 0 % power ± (2.0 % + 0.005 ) R Temperature cycling JESD 22, method JA-104, 1000 cycles (-55 °C to +125 °C) ± (2.0 % + 0.005 ) R Biased humidity MIL-STD-202, method 103, 1000 h 85 °C/85 % RH, 10 % x (P x R)1/2 ± (2.0 % + 0.005 ) R Mechanical shock MIL-STD-202, method 213, condition C, 10 g’s, 6 ms (half sine), 3 directions ± (0.5 % + 0.005 ) R Vibration MIL-STD-202, method 204, 5 g’s, 20 min, 12 cycles, 3 directions, 10 Hz to 2000 Hz ± (0.5 % + 0.005 ) R Operational life MIL-STD-202, method 108, 1000 h at T = 125 °C at rated power ± (2.0 % + 0.005 ) R MIL-STD-202, method 210, +260 °C solder, Resistance to solder heat ± (1.0 % + 0.005 ) R 10 s to 12 s dwell, 25 mm/s emergence Moisture resistance MIL-STD-202, method 106, 0 % power, 7a and 7b not required ± (2.0 % + 0.005 ) R PACKAGING REEL MODEL TAPE WIDTH DIAMETER PITCH PIECES/REEL CODE RCWL0402 8 mm/punched paper 180 mm/7" 2 mm 10 000 EA RCWL0603 8 mm/punched paper 180 mm/7" 4 mm 5000 EA RCWL0805 8 mm/punched paper 180 mm/7" 4 mm 5000 EA RCWL1206 8 mm/punched paper 180 mm/7" 4 mm 5000 EA RCWL1210 12 mm/punched paper 180 mm/7" 4 mm 5000 EA RCWL1218 12 mm/embossed plastic 180 mm/7" 4 mm 4000 EA RCWL2010 12 mm/embossed plastic 180 mm/7" 4 mm 4000 EA RCWL2512 12 mm/embossed plastic 180 mm/7" 8 mm 2000 EA Note • Embossed carrier tape per EIA-481-1A Revision: 21-Aug-2018 3 Document Number: 20018 For technical questions, contact: ww2bresistors@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
