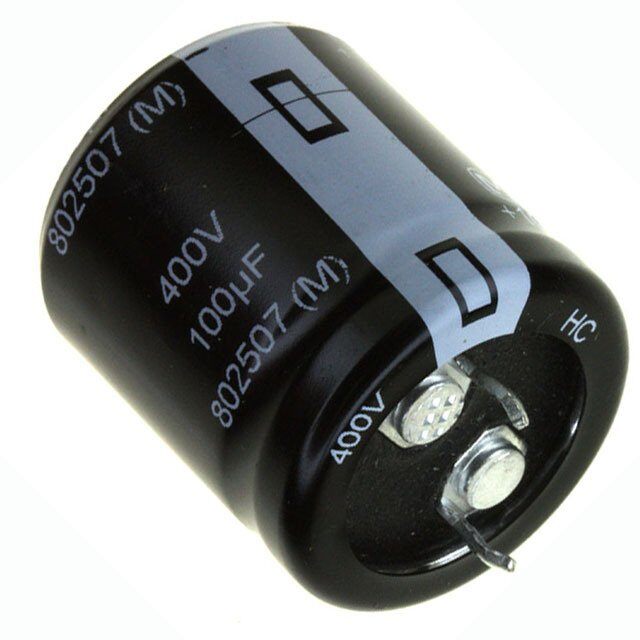

Aluminum Electrolytic Capacitors TS-HC Series 105°C, 2000 hours (cid:1) Long life with high capacitance (30% smaller than HB series) (cid:1) 2 and 3 pin versions available RoHS (cid:1) RoHS compliant PVC and RoHS compliant PET sleeve options Compliant Rated Working Voltage: 10 ~ 250 VDC 350 ~ 450 VDC Operating Temperature: -40 ~ +105°C -25 ~ +105°C Nominal Capacitance: 270 ~ 100000µF 100 ~ 1000µF Capacitance Tolerance: ± 20% Dissipation Factor: Working Voltage [V]: 10 16 25 35 50 63 80 100 ~ 450 (120 Hz, +20°C) Max. D.F. (%): 55 45 35 30 25 20 17 15 (rated cap. [µF] - 33000 ) For capacitance values > 33000µF, add the v alue of: 1000 Leakage Current: 3(cid:1)CV (µA) max. after 5 minutes; C = Capacitance in µF, V = WV Ripple Current Multipliers: Frequency(Hz): 50 60 100~120 500 1k 10k Ripple Current Ambient Temperature Factors* 16~100WV: 0.93 0.95 1.0 1.05 1.08 1.15 Temperature (°C): 105°C 85°C 70°C 60°C (cid:1)45°C 160~450WV: 0.75 0.8 1.0 1.2 1.25 1.4 Multiplier: 1.0 1.7 2.0 2.2 2.35 Endurance: 2000 hours at +105°C with maximum specified ripple current (see page 4) *Use of temperature ripple current multipliers may limit life to the hours specified for the maximum operating temperature. Part Number System E E T H C Sleeving Options: See Part Number listings Common Series Capacitance Code Code Code Diameter / Terminal Code # of pins: 2 3 2 pin length "T": 4.0±0.5mm 4.0±0.5mm 6.3±1mm Voltage Code er 22mm H P B 1A 1C 1E 1V 1H 1J 1K 2A 2C 2D 2E 2V 2G 2S 2W et 25mm J Q C m 10 16 25 35 50 63 80 100 160 200 250 350 400 420 450 a 30mm K R D Di 35mm L S E Dimensions in millimeters 10.0±0.1 Circuit Board Mounting Holes 2 Pin Mounting Style L+2 max. T D+1 max. 2 x Ø2.0±0.1 10.0±0.1 Circuit Board Mounting Holes Ø2.0±0.1 3 Pin Mounting Style 4.75±0.1 3.3±0.1 L+2max. T D+1 max. Ø2.5min. Ø2.0±0.1 Pin Dimensions 2.0 max. 0.8+-00..12 2.0 max. 0.8+-00..12 Top of Capacitor Body 3.5 4.0±0.5 4.0 6.3±1.0 1.5±0.2 1.5±0.2 4mm Length: Standard on 2 and 3 Pin Mounting Styles 6.3mm Length: Available on 2 Pin Mounting Style Only 31

Aluminum Electrolytic Capacitors TS-HC Standard Ratings Part numbers shown with 2 pins and 4.0mm length terminals Cap. Size (mm) Max 105°C R.C. (Arms) 20°C ESR ((cid:1), max.) Panasonic Part Number (By Sleeving Style) (µF) D x L 120Hz 10kHz~ 120Hz 20kHz PVC with Top Plate PET without Top Plate 10 VDC Working, 13 VDC Surge 12000 22x 25 2.20 2.53 0.076 0.065 EETHC1A123HA EETHC1A123HJ 18000 22x 30 2.40 2.76 0.051 0.043 EETHC1A183HA EETHC1A183HJ 25x 25 2.40 2.76 0.051 0.043 EETHC1A183JA EETHC1A183JJ 22000 22x 35 2.60 2.99 0.041 0.035 EETHC1A223HA EETHC1A223HJ 25x 30 2.60 2.99 0.041 0.035 EETHC1A223JA EETHC1A223JJ 27000 22x 40 3.10 3.57 0.034 0.029 EETHC1A273HA EETHC1A273HJ 25x 35 3.10 3.57 0.034 0.029 EETHC1A273JA EETHC1A273JJ 30x 25 3.10 3.57 0.034 0.029 EETHC1A273KA EETHC1A273KJ 33000 22x 45 3.40 3.91 0.028 0.023 EETHC1A333HA EETHC1A333HJ 25x 40 3.40 3.91 0.028 0.023 EETHC1A333JA EETHC1A333JJ 39000 25x 45 3.70 4.26 0.026 0.022 EETHC1A393JA EETHC1A393JJ 30x 30 3.70 4.26 0.026 0.023 EETHC1A393KA EETHC1A393KJ 35x 25 3.70 4.26 0.026 0.022 EETHC1A393LA EETHC1A393LJ 47000 25x 50 4.20 4.83 0.024 0.021 EETHC1A473JA EETHC1A473JJ 30x 35 4.20 4.83 0.024 0.022 EETHC1A473KA EETHC1A473KJ 35x 30 4.20 4.83 0.024 0.021 EETHC1A473LA EETHC1A473LJ 56000 30x 40 5.00 5.75 0.023 0.021 EETHC1A563KA EETHC1A563KJ 35x 35 5.00 5.75 0.023 0.020 EETHC1A563LA EETHC1A563LJ 68000 30x 45 5.40 6.21 0.022 0.020 EETHC1A683KA EETHC1A683KJ 35x 40 5.40 6.21 0.022 0.019 EETHC1A683LA EETHC1A683LJ 82000 35x 45 6.10 7.02 0.021 0.019 EETHC1A823LA EETHC1A823LJ 100000 35x 50 6.90 7.94 0.020 0.019 EETHC1A104LA EETHC1A104LJ 16 VDC Working, 20 VDC Surge 10000 22x 25 2.60 2.99 0.075 0.063 EETHC1C103HA EETHC1C103HJ 12000 22x 30 2.90 3.34 0.062 0.053 EETHC1C123HA EETHC1C123HJ 25x 25 2.90 3.34 0.062 0.053 EETHC1C123JA EETHC1C123JJ 15000 22x 35 3.20 3.68 0.050 0.042 EETHC1C153HA EETHC1C153HJ 18000 22x 40 3.50 4.03 0.041 0.035 EETHC1C183HA EETHC1C183HJ 25x 30 3.50 4.03 0.041 0.035 EETHC1C183JA EETHC1C183JJ 22000 22x 45 3.80 4.37 0.034 0.029 EETHC1C223HA EETHC1C223HJ 25x 35 3.80 4.37 0.034 0.029 EETHC1C223JA EETHC1C223JJ 30x 25 3.80 4.37 0.034 0.029 EETHC1C223KA EETHC1C223KJ 27000 22x 50 4.20 4.83 0.028 0.023 EETHC1C273HA EETHC1C273HJ 25x 40 4.20 4.83 0.028 0.023 EETHC1C273JA EETHC1C273JJ 30x 30 4.20 4.83 0.028 0.023 EETHC1C273KA EETHC1C273KJ 35x 25 4.20 4.83 0.028 0.023 EETHC1C273LA EETHC1C273LJ 33000 25x 45 4.70 5.41 0.023 0.019 EETHC1C333JA EETHC1C333JJ 30x 35 4.70 5.41 0.023 0.019 EETHC1C333KA EETHC1C333KJ 35x 30 4.70 5.41 0.023 0.020 EETHC1C333LA EETHC1C333LJ 39000 30x 40 5.10 5.87 0.022 0.018 EETHC1C393KA EETHC1C393KJ 35x 35 5.10 5.87 0.022 0.020 EETHC1C393LA EETHC1C393LJ 47000 30x 45 5.50 6.33 0.016 0.014 EETHC1C473KA EETHC1C473KJ 35x 40 5.50 6.33 0.021 0.019 EETHC1C473LA EETHC1C473LJ 56000 30x 50 6.00 6.90 0.020 0.018 EETHC1C563KA EETHC1C563KJ 35x 45 6.00 6.90 0.020 0.018 EETHC1C563LA EETHC1C563LJ 25 VDC Working, 32 VDC Surge 6800 22x 25 2.40 2.76 0.085 0.064 EETHC1E682HA EETHC1E682HJ 8200 22x 30 2.70 3.11 0.071 0.053 EETHC1E822HA EETHC1E822HJ 25x 25 2.70 3.11 0.071 0.053 EETHC1E822JA EETHC1E822JJ 10000 22x 35 3.00 3.45 0.058 0.044 EETHC1E103HA EETHC1E103HJ 12000 22x 40 3.20 3.68 0.048 0.036 EETHC1E123HA EETHC1E123HJ 25x 30 3.20 3.68 0.048 0.036 EETHC1E123JA EETHC1E123JJ 15000 22x 45 3.60 4.14 0.039 0.029 EETHC1E153HA EETHC1E153HJ 25x 35 3.60 4.14 0.039 0.029 EETHC1E153JA EETHC1E153JJ 30x 25 3.60 4.14 0.039 0.029 EETHC1E153KA EETHC1E153KJ 18000 22x 50 3.90 4.49 0.032 0.024 EETHC1E183HA EETHC1E183HJ 25x 40 3.90 4.49 0.032 0.024 EETHC1E183JA EETHC1E183JJ 30x 30 3.90 4.49 0.032 0.024 EETHC1E183KA EETHC1E183KJ 35x 25 3.90 4.49 0.032 0.024 EETHC1E183LA EETHC1E183LJ 22000 25x 45 4.30 4.95 0.026 0.020 EETHC1E223JA EETHC1E223JJ 30x 35 4.30 4.95 0.026 0.020 EETHC1E223KA EETHC1E223KJ 35 x 30 4.30 4.95 0.026 0.020 EETHC1E223LA EETHC1E223LJ 27000 30x 40 4.80 5.52 0.021 0.016 EETHC1E273KA EETHC1E273KJ 32

Aluminum Electrolytic Capacitors TS-HC Standard Ratings (continued) Part numbers shown with 2 pins and 4.0mm length terminals Cap. Size (mm) Max 105°C R.C. (Arms) 20°C ESR ((cid:1), max.) Panasonic Part Number (By Sleeving Style) (µF) D x L 120Hz 10kHz~ 120Hz 20kHz PVC with Top Plate PET without Top Plate 25 VDC Working, 32 VDC Surge (continued) 27000 35 x 35 4.80 5.52 0.021 0.016 EETHC1E273LA EETHC1E273LJ 33000 30x 45 5.50 6.33 0.018 0.013 EETHC1E333KA EETHC1E333KJ 35x 40 5.50 6.33 0.018 0.014 EETHC1E333LA EETHC1E333LJ 39000 30x 50 5.80 6.67 0.017 0.013 EETHC1E393KA EETHC1E393KJ 35x 45 5.80 6.67 0.017 0.014 EETHC1E393LA EETHC1E393LJ 47000 35x 50 6.30 7.25 0.017 0.014 EETHC1E473LA EETHC1E473LJ 35 VDC Working, 44 VDC Surge 4700 22 x 25 2.20 2.53 0.106 0.079 EETHC1V472HA EETHC1V472HJ 5600 22 x 30 2.40 2.76 0.089 0.067 EETHC1V562HA EETHC1V562HJ 25 x 25 2.40 2.76 0.089 0.067 EETHC1V562JA EETHC1V562JJ 6800 22 x 35 2.60 2.99 0.073 0.055 EETHC1V682HA EETHC1V682HJ 8200 22 x 40 2.90 3.34 0.061 0.045 EETHC1V822HA EETHC1V822HJ 25 x 30 2.90 3.34 0.061 0.045 EETHC1V822JA EETHC1V822JJ 10000 22 x 45 3.20 3.68 0.050 0.037 EETHC1V103HA EETHC1V103HJ 25 x 35 3.20 3.68 0.050 0.037 EETHC1V103JA EETHC1V103JJ 30 x 25 3.20 3.68 0.050 0.037 EETHC1V103KA EETHC1V103KJ 12000 25 x 40 3.50 4.03 0.041 0.031 EETHC1V123JA EETHC1V123JJ 30 x 30 3.50 4.03 0.041 0.031 EETHC1V123KA EETHC1V123KJ 35 x 25 3.50 4.03 0.041 0.031 EETHC1V123LA EETHC1V123LJ 15000 25 x 45 3.90 4.49 0.033 0.025 EETHC1V153JA EETHC1V153JJ 30 x 35 3.90 4.49 0.033 0.025 EETHC1V153KA EETHC1V153KJ 35 x 30 3.90 4.49 0.033 0.025 EETHC1V153LA EETHC1V153LJ 18000 30 x 40 4.30 4.95 0.028 0.021 EETHC1V183KA EETHC1V183KJ 35 x 35 4.30 4.95 0.028 0.021 EETHC1V183LA EETHC1V183LJ 22000 30 x 45 5.00 5.75 0.023 0.017 EETHC1V223KA EETHC1V223KJ 35 x 40 5.00 5.75 0.023 0.017 EETHC1V223LA EETHC1V223LJ 27000 30 x 50 5.30 6.10 0.018 0.014 EETHC1V273KA EETHC1V273KJ 35 x 45 5.30 6.10 0.018 0.014 EETHC1V273LA EETHC1V273LJ 33000 35 x 50 5.90 6.79 0.015 0.012 EETHC1V333LA EETHC1V333LJ 50 VDC Working, 63 VDC Surge 2700 22 x 25 1.80 2.07 0.154 0.115 EETHC1H272HA EETHC1H272HJ 3300 22 x 30 2.00 2.30 0.126 0.094 EETHC1H332HA EETHC1H332HJ 3900 22 x 35 2.20 2.53 0.106 0.080 EETHC1H392HA EETHC1H392HJ 25 x 25 2.20 2.53 0.106 0.080 EETHC1H392JA EETHC1H392JJ 4700 22 x 40 2.50 2.88 0.088 0.066 EETHC1H472HA EETHC1H472HJ 25 x 30 2.50 2.88 0.088 0.066 EETHC1H472JA EETHC1H472JJ 5600 22 x 45 2.80 3.22 0.074 0.056 EETHC1H562HA EETHC1H562HJ 25 x 35 2.80 3.22 0.074 0.056 EETHC1H562JA EETHC1H562JJ 30 x 25 2.80 3.22 0.074 0.056 EETHC1H562KA EETHC1H562KJ 6800 22 x 50 3.30 3.80 0.061 0.046 EETHC1H682HA EETHC1H682HJ 25 x 40 3.30 3.80 0.061 0.046 EETHC1H682JA EETHC1H682JA 30 x 30 3.30 3.80 0.061 0.046 EETHC1H682KA EETHC1H682KJ 35 x 25 3.30 3.80 0.061 0.046 EETHC1H682LA EETHC1H682LJ 8200 25 x 45 3.60 4.14 0.051 0.038 EETHC1H822JA EETHC1H822JJ 30 x 35 3.60 4.14 0.051 0.038 EETHC1H822KA EETHC1H822KJ 10000 25 x 50 4.00 4.60 0.041 0.031 EETHC1H103JA EETHC1H103JJ 30 x 40 4.00 4.60 0.041 0.031 EETHC1H103KA EETHC1H103KJ 35 x 30 4.00 4.60 0.041 0.031 EETHC1H103LA EETHC1H103LJ 12000 30 x 45 4.50 5.18 0.035 0.026 EETHC1H123KA EETHC1H123KJ 35 x 35 4.50 5.18 0.035 0.028 EETHC1H123LA EETHC1H123LJ 15000 30 x 50 4.80 5.52 0.028 0.021 EETHC1H153KA EETHC1H153KJ 35 x 40 4.80 5.52 0.028 0.022 EETHC1H153LA EETHC1H153LJ 18000 35 x 45 5.60 6.44 0.023 0.018 EETHC1H183LA EETHC1H183LJ 63 VDC Working, 79 VDC Surge 2200 22 x 25 2.00 2.30 0.151 0.113 EETHC1J222HA EETHC1J222HJ 2700 22 x 30 2.20 2.53 0.123 0.092 EETHC1J272HA EETHC1J272HJ 25 x 25 2.20 2.53 0.123 0.092 EETHC1J272JA EETHC1J272JJ 3300 22 x 35 2.50 2.88 0.100 0.075 EETHC1J332HA EETHC1J332HJ 3900 22 x 40 2.70 3.11 0.085 0.064 EETHC1J392HA EETHC1J392HJ 25 x 30 2.70 3.11 0.085 0.064 EETHC1J392JA EETHC1J392JJ 30 x 25 2.70 3.11 0.085 0.064 EETHC1J392KA EETHC1J392KJ 4700 22 x 45 3.00 3.45 0.071 0.053 EETHC1J472HA EETHC1J472HJ 25 x 35 3.00 3.45 0.071 0.053 EETHC1J472JA EETHC1J472JJ 5600 22 x 50 3.30 3.80 0.059 0.044 EETHC1J562HA EETHC1J562HJ 33

Aluminum Electrolytic Capacitors TS-HC Standard Ratings (continued) Part numbers shown with 2 pins and 4.0mm length terminals Cap. Size (mm) Max 105°C R.C. (Arms) 20°C ESR ((cid:1), max.) Panasonic Part Number (By Sleeving Style) (µF) D x L 120Hz 10kHz~ 120Hz 20kHz PVC with Top Plate PET without Top Plate 63 VDC Working, 79 VDC Surge (continued) 5600 25 x 40 3.30 3.80 0.059 0.044 EETHC1J562JA EETHC1J562JJ 30 x 30 3.30 3.80 0.059 0.044 EETHC1J562KA EETHC1J562KJ 35 x 25 3.30 3.80 0.059 0.044 EETHC1J562LA EETHC1J562LJ 6800 25 x 45 3.60 4.14 0.049 0.037 EETHC1J682JA EETHC1J682JJ 30 x 35 3.60 4.14 0.049 0.037 EETHC1J682KA EETHC1J682KJ 35 x 30 3.60 4.14 0.049 0.037 EETHC1J682LA EETHC1J682LJ 8200 30 x 40 3.90 4.49 0.040 0.030 EETHC1J822KA EETHC1J822KJ 35 x 35 3.90 4.49 0.040 0.030 EETHC1J822LA EETHC1J822LJ 10000 30 x 45 4.40 5.06 0.033 0.025 EETHC1J103KA EETHC1J103KJ 35 x 40 4.40 5.06 0.033 0.025 EETHC1J103LA EETHC1J103LJ 12000 30 x 50 4.80 5.52 0.028 0.021 EETHC1J123KA EETHC1J123KJ 35 x 45 4.80 5.52 0.028 0.022 EETHC1J123LA EETHC1J123LJ 15000 35 x 50 5.40 6.21 0.022 0.018 EETHC1J153LA EETHC1J153LJ 80 VDC Working, 100 VDC Surge 1200 22 x 25 1.50 1.73 0.235 0.176 EETHC1K122HA EETHC1K122HJ 1500 22 x 30 1.70 1.96 0.188 0.141 EETHC1K152HA EETHC1K152HJ 25 x 25 1.70 1.96 0.188 0.141 EETHC1K152JA EETHC1K152JJ 1800 22 x 35 1.80 2.07 0.157 0.117 EETHC1K182HA EETHC1K182HJ 2200 22 x 40 2.10 2.42 0.128 0.096 EETHC1K222HA EETHC1K222HJ 25 x 30 2.10 2.42 0.128 0.096 EETHC1K222JA EETHC1K222JJ 2700 22 x 45 2.40 2.76 0.104 0.078 EETHC1K272HA EETHC1K272HJ 25 x 35 2.40 2.76 0.104 0.078 EETHC1K272JA EETHC1K272JJ 30 x 25 2.40 2.76 0.104 0.078 EETHC1K272KA EETHC1K272KJ 3300 22 x 50 2.60 2.99 0.085 0.064 EETHC1K332HA EETHC1K332HJ 25 x 40 2.60 2.99 0.085 0.064 EETHC1K332JA EETHC1K332JJ 30 x 30 2.60 2.99 0.085 0.064 EETHC1K332KA EETHC1K332KJ 35 x 25 2.60 2.99 0.085 0.064 EETHC1K332LA EETHC1K332LJ 3900 25 x 45 3.00 3.45 0.072 0.054 EETHC1K392JA EETHC1K392JJ 30 x 35 3.00 3.45 0.072 0.054 EETHC1K392KA EETHC1K392KJ 4700 25 x 50 3.30 3.80 0.060 0.045 EETHC1K472JA EETHC1K472JJ 30 x 40 3.30 3.80 0.060 0.045 EETHC1K472KA EETHC1K472KJ 35 x 30 3.30 3.80 0.060 0.045 EETHC1K472LA EETHC1K472LJ 5600 30 x 45 3.70 4.26 0.050 0.038 EETHC1K562KA EETHC1K562KJ 35 x 35 3.70 4.26 0.050 0.038 EETHC1K562LA EETHC1K562LJ 6800 30 x 50 3.90 4.49 0.041 0.031 EETHC1K682KA EETHC1K682KJ 35 x 40 3.90 4.49 0.041 0.032 EETHC1K682LA EETHC1K682LJ 8200 35 x 45 4.50 5.18 0.034 0.027 EETHC1K822LA EETHC1K822LJ 100 VDC Working, 125 VDC Surge 820 22 x 25 1.40 1.61 0.303 0.197 EETHC2A821HA EETHC2A821HJ 1200 22 x 30 1.80 2.07 0.207 0.135 EETHC2A122HA EETHC2A122HJ 25 x 25 1.80 2.07 0.207 0.135 EETHC2A122JA EETHC2A122JJ 1500 22 x 35 2.10 2.42 0.166 0.108 EETHC2A152HA EETHC2A152HJ 25 x 30 2.10 2.42 0.166 0.108 EETHC2A152JA EETHC2A152JJ 1800 22 x 40 2.30 2.65 0.138 0.090 EETHC2A182HA EETHC2A182HJ 25 x 35 2.30 2.65 0.138 0.090 EETHC2A182JA EETHC2A182JJ 30 x 25 2.30 2.65 0.138 0.090 EETHC2A182KA EETHC2A182KJ 2200 22 x 45 2.60 2.99 0.113 0.073 EETHC2A222HA EETHC2A222HJ 25 x 40 2.60 2.99 0.113 0.073 EETHC2A222JA EETHC2A222JJ 30 x 30 2.60 2.99 0.113 0.073 EETHC2A222KA EETHC2A222KJ 35 x 25 2.60 2.99 0.113 0.073 EETHC2A222LA EETHC2A222LJ 2700 25 x 45 2.90 3.34 0.092 0.060 EETHC2A272JA EETHC2A272JJ 30 x 35 2.90 3.34 0.092 0.060 EETHC2A272KA EETHC2A272KJ 3300 25 x 50 3.20 3.68 0.075 0.049 EETHC2A332JA EETHC2A332JJ 30 x 40 3.20 3.68 0.075 0.049 EETHC2A332KA EETHC2A332KJ 35 x 30 3.20 3.68 0.075 0.049 EETHC2A332LA EETHC2A332LJ 3900 30 x 45 3.60 4.14 0.064 0.043 EETHC2A392KA EETHC2A392KJ 35 x 35 3.60 4.14 0.064 0.043 EETHC2A392LA EETHC2A392LJ 4700 30 x 50 3.80 4.37 0.053 0.038 EETHC2A472KA EETHC2A472KJ 35 x 40 3.80 4.37 0.053 0.037 EETHC2A472LA EETHC2A472LJ 5600 35 x 45 4.20 4.83 0.044 0.031 EETHC2A562LA EETHC2A562LJ 6800 35 x 50 4.70 5.41 0.037 0.027 EETHC2A682LA EETHC2A682LJ 160 VDC Working, 200 VDC Surge 470 22x 25 1.40 1.96 0.423 0.190 EETHC2C471HA EETHC2C471HJ 34

Aluminum Electrolytic Capacitors TS-HC Standard Ratings (continued) Part numbers shown with 2 pins and 4.0mm length terminals Cap. Size (mm) Max 105°C R.C. (Arms) 20°C ESR ((cid:1), max.) Panasonic Part Number (By Sleeving Style) (µF) D x L 120Hz 10kHz~ 120Hz 20kHz PVC sleeve with Top Plate PET sleeve without Top Plate 160 VDC Working, 200 VDC Surge (continued) 560 22x 30 1.50 2.10 0.355 0.160 EETHC2C561HA EETHC2C561HJ 680 22x 30 1.70 2.38 0.293 0.132 EETHC2C681HA EETHC2C681HJ 25x 25 1.70 2.38 0.293 0.132 EETHC2C681JA EETHC2C681JJ 820 22x 35 2.00 2.80 0.243 0.109 EETHC2C821HA EETHC2C821HJ 25x 30 2.00 2.80 0.243 0.109 EETHC2C821JA EETHC2C821JJ 1000 22x 40 2.20 3.08 0.199 0.090 EETHC2C102HA EETHC2C102HJ 1000 25x 35 2.20 3.08 0.199 0.090 EETHC2C102JA EETHC2C102JJ 30x 25 2.20 3.08 0.216 0.108 EETHC2C102KA EETHC2C102KJ 1200 22x 45 2.30 3.22 0.166 0.075 EETHC2C122HA EETHC2C122HJ 25x 40 2.30 3.22 0.166 0.075 EETHC2C122JA EETHC2C122JJ 30x 30 2.30 3.22 0.166 0.075 EETHC2C122KA EETHC2C122KJ 35x 25 2.30 3.22 0.180 0.090 EETHC2C122LA EETHC2C122LJ 1500 25x 45 2.50 3.50 0.133 0.060 EETHC2C152JA EETHC2C152JJ 30x 35 2.50 3.50 0.133 0.060 EETHC2C152KA EETHC2C152KJ 35x 30 2.50 3.50 0.155 0.077 EETHC2C152LA EETHC2C152LJ 1800 25x 50 2.70 3.78 0.111 0.050 EETHC2C182JA EETHC2C182JJ 30x 40 2.70 3.78 0.111 0.050 EETHC2C182KA EETHC2C182KJ 35x 30 2.70 3.78 0.120 0.060 EETHC2C182LA EETHC2C182LJ 2200 30x 45 2.90 4.06 0.090 0.041 EETHC2C222KA EETHC2C222KJ 35x 35 2.90 4.06 0.098 0.049 EETHC2C222LA EETHC2C222LJ 2700 30x 50 3.10 4.34 0.080 0.040 EETHC2C272KA EETHC2C272KJ 35x 40 3.10 4.34 0.086 0.043 EETHC2C272LA EETHC2C272LJ 3300 35x 50 3.30 4.62 0.070 0.042 EETHC2C332LA EETHC2C332LJ 200 VDC Working, 250 VDC Surge 390 22x 25 1.31 1.83 0.510 0.230 EETHC2D391HA EETHC2D391HJ 470 22x 30 1.45 2.03 0.423 0.190 EETHC2D471HA EETHC2D471HJ 25x 25 1.45 2.03 0.423 0.190 EETHC2D471JF EETHC2D471JC 560 22x 30 1.67 2.34 0.355 0.160 EETHC2D561HA EETHC2D561HJ 680 22x 40 1.75 2.45 0.293 0.132 EETHC2D681HA EETHC2D681HJ 25x 30 1.75 2.45 0.293 0.132 EETHC2D681JA EETHC2D681JJ 820 22x 45 2.04 2.86 0.243 0.109 EETHC2D821HA EETHC2D821HJ 25x 35 2.04 2.86 0.243 0.109 EETHC2D821JA EETHC2D821JJ 30x 25 2.04 2.86 0.243 0.109 EETHC2D821KA EETHC2D821KJ 1000 22x 50 2.30 3.22 0.199 0.090 EETHC2D102HA EETHC2D102HJ 25x 40 2.30 2.90 0.199 0.090 EETHC2D102JF EETHC2D102JC 25x 45 2.30 3.22 0.199 0.090 EETHC2D102JA EETHC2D102JJ 30x 30 2.30 3.22 0.199 0.090 EETHC2D102KA EETHC2D102KJ 35x 25 2.30 3.22 0.216 0.097 EETHC2D102LA EETHC2D102LA 1200 25x 45 2.65 3.33 0.166 0.075 EETHC2D122JF EETHC2D122JC 25x 50 2.65 3.71 0.166 0.075 EETHC2D122JA EETHC2D122JJ 30x 35 2.65 3.71 0.166 0.075 EETHC2D122KA EETHC2D122KJ 35 x 30 2.65 3.71 0.180 0.090 EETHC2D122LA EETHC2D122LA 1500 30x 40 2.80 3.92 0.133 0.060 EETHC2D152KA EETHC2D152KJ 35 x 30 2.80 3.92 0.144 0.072 EETHC2D152LA EETHC2D152LA 1800 30x 45 3.08 4.31 0.111 0.050 EETHC2D182KA EETHC2D182KJ 35x 40 3.08 4.31 0.129 0.064 EETHC2D182LA EETHC2D182LA 2200 30x 50 3.48 4.87 0.090 0.041 EETHC2D222KA EETHC2D222KJ 35x 45 3.48 4.87 0.098 0.044 EETHC2D222LA EETHC2D222LA 250 VDC Working, 300 VDC Surge 270 22 x 25 1.10 1.54 0.614 0.276 EETHC2E271HA EETHC2E271HJ 330 22 x 30 1.20 1.68 0.502 0.226 EETHC2E331HA EETHC2E331HJ 25 x 25 1.20 1.68 0.502 0.226 EETHC2E331JA EETHC2E331JJ 390 22 x 30 1.20 1.68 0.425 0.191 EETHC2E391HF EETHC2E391HC 22 x 35 1.30 1.82 0.425 0.191 EETHC2E391HA EETHC2E391HJ 25 x 25 1.30 1.82 0.425 0.191 EETHC2E391JA EETHC2E391JJ 470 22 x 35 1.20 1.68 0.353 0.159 EETHC2E471HF EETHC2E471HC 22 x 40 1.40 1.96 0.353 0.159 EETHC2E471HA EETHC2E471HJ 25 x 30 1.40 1.96 0.353 0.159 EETHC2E471JA EETHC2E471JJ 30 x 25 1.40 1.96 0.353 0.159 EETHC2E471KA EETHC2E471KJ 560 22 x 40 1.40 1.96 0.296 0.133 EETHC2E561HF EETHC2E561HC 22 x 45 1.50 2.10 0.296 0.133 EETHC2E561HA EETHC2E561HJ 25 x 35 1.50 2.10 0.296 0.133 EETHC2E561JA EETHC2E561JJ 30 x 25 1.50 2.10 0.296 0.133 EETHC2E561KA EETHC2E561KJ 35

Aluminum Electrolytic Capacitors TS-HC Standard Ratings (continued) Part numbers shown with 2 pins and 4.0mm length terminals Cap. Size (mm) Max 105°C R.C. (Arms) 20°C ESR ((cid:1), max.) Panasonic Part Number (By Sleeving Style) (µF) D x L 120Hz 10kHz~ 120Hz 20kHz PVC with Top Plate PET without Top Plate 250 VDC Working, 300 VDC Surge (continued) 680 22 x 45 1.50 2.10 0.244 0.110 EETHC2E681HF EETHC2E681HC 22 x 50 1.70 2.38 0.244 0.110 EETHC2E681HA EETHC2E681HJ 25 x 40 1.70 2.38 0.244 0.110 EETHC2E681JA EETHC2E681JJ 30 x 30 1.70 2.38 0.244 0.110 EETHC2E681KA EETHC2E681KJ 35 x 25 1.70 2.38 0.244 0.110 EETHC2E681LA EETHC2E681LJ 820 25 x 45 2.00 2.80 0.202 0.091 EETHC2E821JA EETHC2E821JJ 30 x 35 2.00 2.80 0.202 0.091 EETHC2E821KA EETHC2E821KJ 35 x 30 2.00 2.80 0.202 0.091 EETHC2E821LA EETHC2E821LJ 1000 25 x 50 2.20 3.08 0.166 0.075 EETHC2E102JF EETHC2E102JC 30 x 40 2.20 3.08 0.166 0.075 EETHC2E102KA EETHC2E102KJ 35 x 30 2.20 3.08 0.166 0.075 EETHC2E102LA EETHC2E102LJ 1200 30 x 45 2.30 3.22 0.138 0.062 EETHC2E122KA EETHC2E122KJ 35 x 35 2.30 3.22 0.138 0.062 EETHC2E122LA EETHC2E122LJ 1500 35 x 45 2.50 3.50 0.111 0.050 EETHC2E152LA EETHC2E152LJ 1800 35 x 45 2.50 3.50 0.092 0.041 EETHC2E182LF EETHC2E182LC 35 x 50 2.70 3.78 0.092 0.041 EETHC2E182LA EETHC2E182LJ 350 VDC Working, 400 VDC Surge 120 22 x 25 0.75 1.05 1.382 0.622 EETHC2V121HA EETHC2V121HJ 150 22 x 30 0.82 1.15 1.105 0.497 EETHC2V151HA EETHC2V151HJ 180 22 x 30 0.90 1.26 0.921 0.414 EETHC2V181HA EETHC2V181HJ 25 x 25 0.90 1.26 0.921 0.414 EETHC2V181JA EETHC2V181JJ 220 22 x 35 1.00 1.40 0.754 0.339 EETHC2V221HA EETHC2V221HJ 25 x 30 1.00 1.40 0.754 0.339 EETHC2V221JA EETHC2V221JJ 270 22 x 40 1.10 1.54 0.614 0.276 EETHC2V271HF EETHC2V271HC 25 x 35 1.10 1.54 0.614 0.276 EETHC2V271JA EETHC2V271JJ 30 x 25 1.10 1.54 0.614 0.276 EETHC2V271KA EETHC2V271KJ 330 22 x 45 1.20 1.68 0.502 0.226 EETHC2V331HF EETHC2V331HC 25 x 40 1.20 1.68 0.502 0.226 EETHC2V331JA EETHC2V331JJ 30 x 30 1.20 1.68 0.502 0.226 EETHC2V331KA EETHC2V331KJ 390 25 x 45 1.30 1.82 0.425 0.191 EETHC2V391JA EETHC2V391JJ 30 x 30 1.30 1.82 0.425 0.191 EETHC2V391KF EETHC2V391KC 30 x 35 1.30 1.82 0.425 0.191 EETHC2V391KA EETHC2V391KJ 470 25 x 50 1.40 1.96 0.353 0.159 EETHC2V471JA EETHC2V471JJ 30 x 35 1.40 1.96 0.353 0.159 EETHC2V471KF EETHC2V471KC 35 x 30 1.40 1.96 0.353 0.159 EETHC2V471LA EETHC2V471LJ 560 30 x 40 1.50 2.10 0.296 0.133 EETHC2V561KF EETHC2V561KC 30 x 45 1.50 2.10 0.296 0.133 EETHC2V561KA EETHC2V561KJ 35 x 35 1.50 2.10 0.296 0.133 EETHC2V561LA EETHC2V561LJ 680 30 x 45 1.70 2.38 0.244 0.110 EETHC2V681KF EETHC2V681KC 30 x 50 1.70 2.38 0.244 0.110 EETHC2V681KA EETHC2V681KJ 35 x 40 1.70 2.38 0.244 0.110 EETHC2V681LA EETHC2V681LJ 820 35 x 45 1.90 2.66 0.202 0.091 EETHC2V821LA EETHC2V821LJ 1000 35 x 50 1.90 2.66 0.202 0.091 EETHC2V102LF EETHC2V102LC 400 VDC Working, 450 VDC Surge 100 22 x 25 0.70 0.98 1.824 0.821 EETHC2G101HA EETHC2G101HJ 120 22 x 30 0.75 1.05 1.520 0.684 EETHC2G121HA EETHC2G121HJ 150 22 x 30 0.88 1.23 1.216 0.547 EETHC2G151HA EETHC2G151HJ 25 x 25 0.88 1.23 1.216 0.547 EETHC2G151JF EETHC2G151JC 180 22 x 35 0.95 1.33 1.013 0.456 EETHC2G181HA EETHC2G181HJ 25 x 30 0.95 1.33 1.013 0.456 EETHC2G181JA EETHC2G181JJ 220 22 x 40 1.00 1.40 0.829 0.373 EETHC2G221HF EETHC2G221HC 22 x 45 1.10 1.54 0.829 0.373 EETHC2G221HA EETHC2G221HJ 25 x 35 1.10 1.54 0.829 0.373 EETHC2G221JA EETHC2G221JJ 30 x 25 1.10 1.54 0.829 0.373 EETHC2G221KA EETHC2G221KJ 270 22 x 45 1.10 1.54 0.675 0.304 EETHC2G271HF EETHC2G271HC 22 x 50 1.22 1.71 0.675 0.304 EETHC2G271HA EETHC2G271HJ 25 x 40 1.22 1.71 0.675 0.304 EETHC2G271JA EETHC2G271JJ 30 x 30 1.22 1.71 0.675 0.304 EETHC2G271KA EETHC2G271KJ 35 x 25 1.22 1.71 0.675 0.304 EETHC2G271LA EETHC2G271LJ 330 25 x 45 1.44 2.02 0.553 0.249 EETHC2G331JA EETHC2G331JJ 30 x 30 1.44 2.02 0.553 0.249 EETHC2G331KF EETHC2G331KC 30 x 35 1.44 2.02 0.553 0.249 EETHC2G331KA EETHC2G331KJ 35 x 30 1.44 2.02 0.553 0.249 EETHC2G331LA EETHC2G331LJ 36

Aluminum Electrolytic Capacitors TS-HC Standard Ratings (continued) Part numbers shown with 2 pins and 4.0mm length terminals Cap. Size (mm) Max 85°C R.C. (Arms) 20°C ESR ((cid:1), max.) Panasonic Part Number (By Sleeving Style) (µF) D x L 120Hz 10kHz~ 120Hz 20kHz PVC with Top Plate PET without Top Plate 400 VDC Working, 450 VDC Surge (continued) 390 25 x 50 1.55 2.17 0.468 0.210 EETHC2G391JA EETHC2G391JJ 30 x 35 1.40 1.96 0.468 0.210 EETHC2G391KF EETHC2G391KC 30 x 40 1.55 2.17 0.468 0.210 EETHC2G391KA EETHC2G391KJ 35 x 30 1.55 2.17 0.468 0.210 EETHC2G391LA EETHC2G391LJ 470 30 x 45 1.68 2.35 0.388 0.175 EETHC2G471KA EETHC2G471KJ 35 x 35 1.68 2.35 0.388 0.175 EETHC2G471LA EETHC2G471LJ 560 30 x 45 1.90 2.66 0.326 0.147 EETHC2G561KF EETHC2G561KC 30 x 50 1.90 2.66 0.326 0.147 EETHC2G561KA EETHC2G561KJ 35 x 40 1.90 2.66 0.326 0.147 EETHC2G561LA EETHC2G561LJ 680 35 x 45 2.12 2.97 0.268 0.121 EETHC2G681LA EETHC2G681LJ 820 35 x 50 2.30 3.22 0.202 0.091 EETHC2G821LA EETHC2G821LJ 420 VDC Working, 470 VDC Surge 120 22 x 30 0.74 1.04 1.520 0.684 EETHC2S121HA EETHC2S121HJ 25 x 25 0.74 1.04 1.520 0.684 EETHC2S121JA EETHC2S121JJ 150 22 x 35 0.84 1.18 1.216 0.547 EETHC2S151HA EETHC2S151HJ 180 22 x 40 0.91 1.27 1.103 0.456 EETHC2S181HA EETHC2S181HJ 25 x 30 0.91 1.27 1.103 0.456 EETHC2S181JA EETHC2S181JJ 220 22 x 45 1.05 1.47 0.829 0.373 EETHC2S221HA EETHC2S221HJ 25 x 35 1.05 1.47 0.829 0.373 EETHC2S221JA EETHC2S221JJ 30 x 25 1.05 1.47 0.829 0.373 EETHC2S221KA EETHC2S221KJ 270 22 x 50 1.20 1.68 0.675 0.304 EETHC2S271HA EETHC2S271HJ 25 x 40 1.20 1.68 0.675 0.304 EETHC2S271JA EETHC2S271JJ 30 x 30 1.20 1.68 0.675 0.304 EETHC2S271KA EETHC2S271KJ 35 x 25 1.20 1.68 0.675 0.304 EETHC2S271LA EETHC2S271LJ 330 25 x 50 1.42 1.99 0.553 0.249 EETHC2S331JA EETHC2S331JJ 330 30 x 35 1.42 1.99 0.553 0.249 EETHC2S331KA EETHC2S331KJ 35 x 35 1.42 1.99 0.553 0.249 EETHC2S331LA EETHC2S331LJ 390 30 x 40 1.55 2.17 0.468 0.210 EETHC2S391KA EETHC2S391KJ 35 x 35 1.55 2.17 0.468 0.210 EETHC2S391LA EETHC2S391LJ 470 30 x 45 1.71 2.39 0.388 0.175 EETHC2S471KA EETHC2S471KJ 35 x 35 1.71 2.39 0.388 0.175 EETHC2S471LA EETHC2S471LJ 560 30 x 50 1.90 2.66 0.326 0.147 EETHC2S561KA EETHC2S561KJ 35 x 45 1.90 2.66 0.326 0.147 EETHC2S561LA EETHC2S561LJ 680 35 x 50 2.10 2.94 0.268 0.121 EETHC2S681LA EETHC2S681LJ 450 VDC Working, 500 VDC Surge 100 22 x 30 0.64 0.90 1.824 0.821 EETHC2W101HA EETHC2W101HJ 25 x 25 0.64 0.90 1.824 0.821 EETHC2W101JA EETHC2W101JJ 120 22 x 35 0.72 1.01 1.520 0.684 EETHC2W121HA EETHC2W121HJ 25 x 30 0.72 1.01 1.520 0.684 EETHC2W121JA EETHC2W121JJ 150 22 x 35 0.79 1.11 1.216 0.547 EETHC2W151HF EETHC2W151HC 22 x 40 0.79 1.11 1.216 0.547 EETHC2W151HA EETHC2W151HJ 25 x 30 0.79 1.11 1.216 0.547 EETHC2W151JA EETHC2W151JJ 30 x 25 0.79 1.11 1.216 0.547 EETHC2W151KA EETHC2W151KJ 180 22 x 45 0.87 1.22 1.013 0.456 EETHC2W181HA EETHC2W181HJ 25 x 35 0.87 1.22 1.013 0.456 EETHC2W181JF EETHC2W181JC 25 x 40 0.87 1.22 1.013 0.456 EETHC2W181JA EETHC2W181JJ 30 x 25 0.87 1.22 1.013 0.456 EETHC2W181KF EETHC2W181KC 30 x 30 0.87 1.22 1.013 0.456 EETHC2W181KA EETHC2W181KJ 220 22 x 50 1.00 1.40 0.829 0.373 EETHC2W221HA EETHC2W221HJ 25 x 40 1.00 1.40 0.829 0.373 EETHC2W221JF EETHC2W221JC 25 x 45 1.00 1.40 0.829 0.373 EETHC2W221JA EETHC2W221JJ 30 x 30 1.00 1.40 0.829 0.373 EETHC2W221KA EETHC2W221KJ 35 x 25 1.00 1.40 0.829 0.373 EETHC2W221LA EETHC2W221LJ 270 25 x 45 1.19 1.67 0.675 0.304 EETHC2W271JF EETHC2W271JC 25 x 50 1.19 1.67 0.675 0.304 EETHC2W271JA EETHC2W271JJ 30 x 35 1.19 1.67 0.675 0.304 EETHC2W271KF EETHC2W271KC 30 x 40 1.19 1.67 0.675 0.304 EETHC2W271KA EETHC2W271KJ 35 x 30 1.19 1.67 0.675 0.304 EETHC2W271LA EETHC2W271LJ 330 25 x 50 1.38 1.93 0.553 0.249 EETHC2W331JF EETHC2W331JC 30 x 40 1.38 1.93 0.553 0.249 EETHC2W331KF EETHC2W331KC 30 x 45 1.38 1.93 0.553 0.249 EETHC2W331KA EETHC2W331KJ 35 x 30 1.38 1.93 0.553 0.249 EETHC2W331LF EETHC2W331LC 35 x 35 1.38 1.93 0.553 0.249 EETHC2W331LA EETHC2W331LJ 37

Aluminum Electrolytic Capacitors TS-HC Standard Ratings (continued) Part numbers shown with 2 pins and 4.0mm length terminals Cap. Size (mm) Max 105°C R.C. (Arms) 20°C ESR ((cid:1), max.) Panasonic Part Number (By Sleeving Style) (µF) D x L 120Hz 10kHz~ 120Hz 20kHz PVC with Top Plate PET without Top Plate 450 VDC Working, 500 VDC Surge (continued) 390 30 x 45 1.55 2.17 0.468 0.210 EETHC2W391KF EETHC2W391KC 30 x 50 1.55 2.17 0.468 0.210 EETHC2W391KA EETHC2W391KJ 35 x 35 1.55 2.17 0.468 0.210 EETHC2W391LF EETHC2W391LC 35 x 40 1.55 2.17 0.468 0.210 EETHC2W391LA EETHC2W391LJ 470 30 x 50 1.74 2.44 0.388 0.175 EETHC2W471KF EETHC2W471KC 35 x 40 1.74 2.44 0.388 0.175 EETHC2W471LF EETHC2W471LC 35 x 45 1.74 2.44 0.388 0.175 EETHC2W471LA EETHC2W471LJ 560 35 x 50 1.90 2.66 0.326 0.147 EETHC2W561LA EETHC2W561LJ 38
