Datasheet下载- 型号： ECA-1HM100I
- 制造商： Panasonic Corporation
- 库位|库存： xxxx|xxxx
- 要求：
| 数量阶梯 | 香港交货 | 国内含税 |
| +xxxx | $xxxx | ￥xxxx |
查看当月历史价格
查看今年历史价格
ECA-1HM100I产品简介：
ICGOO电子元器件商城为您提供ECA-1HM100I由Panasonic Corporation设计生产，在icgoo商城现货销售，并且可以通过原厂、代理商等渠道进行代购。 ECA-1HM100I价格参考。Panasonic CorporationECA-1HM100I封装/规格：铝电解电容器， 10µF 50V 铝电解电容器 径向，Can 85°C 时为 2000 小时。您可以下载ECA-1HM100I参考资料、Datasheet数据手册功能说明书，资料中有ECA-1HM100I 详细功能的应用电路图电压和使用方法及教程。
Panasonic Electronic Components 生产的型号为 ECA-1HM100I 的铝电解电容器，是一种广泛应用于各类电子设备中的重要元件。其主要应用场景包括但不限于以下几个方面： 1. 电源电路：ECA-1HM100I 适用于各种电源电路中，如开关电源（SMPS）、线性电源等。它能够有效滤除电源中的纹波电压，确保输出电压的稳定性和纯净度，提高电源系统的可靠性和性能。 2. 音频设备：在音响、功放等音频设备中，该电容器用于耦合和去耦电路，可以减少噪音和干扰，提升音质表现。它能够平滑音频信号，避免电流波动对音质的影响，使声音更加清晰、稳定。 3. 工业控制设备：在工业自动化控制系统中，如PLC（可编程逻辑控制器）、变频器、伺服驱动器等，ECA-1HM100I 用于滤波和储能，保证系统在复杂工况下的稳定运行。它能够在高频率和大电流条件下保持良好的电气特性，延长设备的使用寿命。 4. 消费电子产品：电视机、显示器、投影仪等消费电子产品中，ECA-1HM100I 用于电源管理模块，确保设备在启动、待机和工作状态下的电压稳定性。它还能够吸收瞬态电压尖峰，保护敏感的电子元件免受损坏。 5. 汽车电子系统：在汽车电子领域，如车载音响、导航系统、发动机控制单元（ECU）等，ECA-1HM100I 提供可靠的滤波和稳压功能，适应汽车环境中较大的温度变化和振动条件。它具有较高的耐热性和抗振性，确保车辆电子系统的稳定性和安全性。 6. 通信设备：基站、路由器、交换机等通信设备中，ECA-1HM100I 用于电源滤波和信号处理电路，保障数据传输的稳定性和可靠性。它能够在高频工作环境下保持低阻抗特性，减少信号损失和干扰。 综上所述，ECA-1HM100I 铝电解电容器凭借其优良的电气性能和可靠性，在多个领域的电子设备中发挥着关键作用，是现代电子技术不可或缺的基础元件。
| 参数 | 数值 |
| 产品目录 | |
| 描述 | CAP ALUM 10UF 50V 20% RADIAL铝质电解电容器 - 带引线 10UF 50V ELECT M RADIAL |
| ESR（等效串联电阻） | - |
| 产品分类 | |
| 品牌 | Panasonic |
| 产品手册 | |
| 产品图片 |
|
| rohs | 符合RoHS无铅 / 符合限制有害物质指令(RoHS)规范要求 |
| 产品系列 | 铝电解电容器,铝质电解电容器 - 带引线,Panasonic ECA-1HM100IM |
| 数据手册 | http://industrial.panasonic.com/www-cgi/jvcr13pz.cgi?E+PZ+3+ABA0012+ECA1HM100I+7+WW |

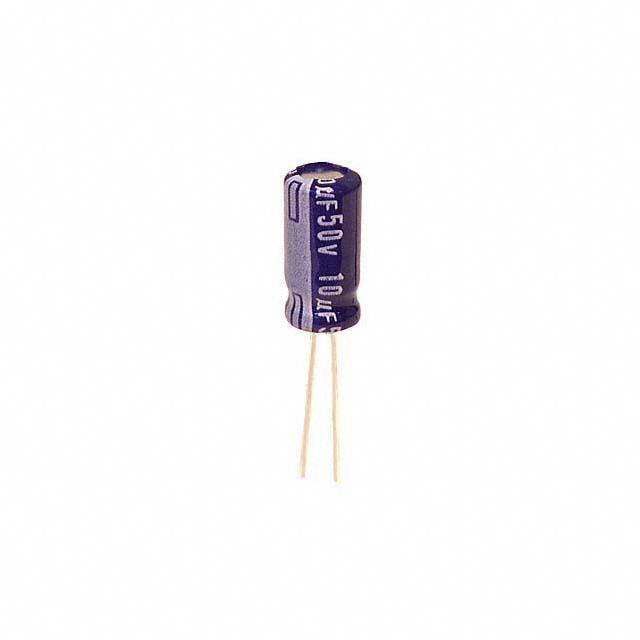

| 产品型号 | ECA-1HM100I |
| 不同温度时的使用寿命 | 85°C 时为 2000 小时 |
| 产品 | General Purpose Electrolytic Capacitors |
| 产品培训模块 | http://www.digikey.cn/PTM/IndividualPTM.page?site=cn&lang=zhs&ptm=24863 |
| 产品目录绘图 |
|
| 产品目录页面 | |
| 产品种类 | 铝质电解电容器 - 带引线 |
| 其它名称 | ECA1HM100I |
| 加载寿命 | 2000 h |
| 包装 | 带盒（TB） |
| 商标 | Panasonic |
| 外壳直径 | 5 mm |
| 外壳长度 | 11 mm |
| 大小/尺寸 | 0.197" 直径（5.00mm） |
| 安装类型 | 通孔 |
| 容差 | 20 % |
| 封装 | Ammo Pack |
| 封装/外壳 | 径向，Can |
| 尺寸 | 5 mm Dia. x 11 mm L |
| 工作温度 | -40°C ~ 85°C |
| 工厂包装数量 | 2000 |
| 应用 | 通用 |
| 引线间距 | 0.098"（2.50mm） |
| 引线间隔 | 2.5 mm |
| 损耗因数DF | 0.12 |
| 最大工作温度 | + 85 C |
| 标准包装 | 2,000 |
| 漏泄电流 | 3 uA |
| 电压额定值DC | 50 V |
| 电容 | 10 uF |
| 端接类型 | Radial |
| 类型 | Aluminum Electrolytic Capacitors |
| 系列 | M |
| 纹波电流 | 65 mA |
| 表面贴装焊盘尺寸 | - |
| 阻抗 | - |
| 额定电压 | 50V |
| 高度-安装（最大值） | 0.472"（12.00mm） |
