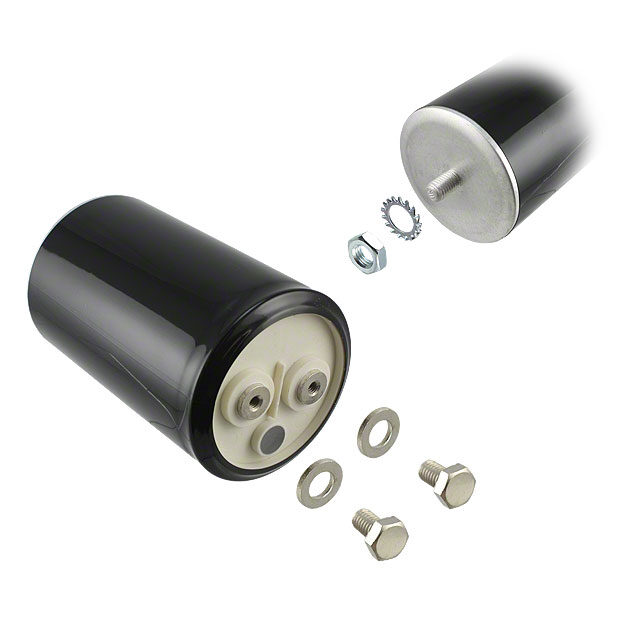

Aluminum Can Power Film Capacitors C44U, 600 – 1,300 VDC, for DC Link Overview Applications The C44U series is a polypropylene segmented metallized Typical applications include DC filtering and energy storage. film capacitor with a cylindrical, aluminium can-type design filled with resin. It uses screw terminals and a plastic deck. Benefits • Controlled self-healing • Low loss • High ripple current • High capacitance density • Long lifetime Part Number System C4 4 U Q G T 6 5 0 0 F 8 S K DC Case and Terminals Capacitance Case Series Variants Film Type Tolerance Voltage Fixing Code Code (pF) Diameter C4 = MKP 4 = U = H = 600 V G = Cylindrical T = M6 female Digits nine, ten, and eleven A = 85°C 7 = 76 mm T = Standard film J = 5% Capacitors Cylindrical DC J = 700 V case with terminals indicate the first three hot spot 8 = 85 mm S = Segmented K = 10% for Power types link O = 900 V threaded bolt Q = M8 male digits of capacitance temperature film Applications Q = 1,100 V M12 terminals value. Digit eight indicates series U = 1,300 V E = Cylindrical Y = M8 female the number of zeros to be F/G = 70°C case without terminals added. hot spot threaded bolt temperature series One world. One KEMET © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3049_C44U_RADIAL • 3/29/2019 1 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

Aluminum Can Power Film Capacitors C44U, 600 – 1,300 VDC, for DC Link Dimensions – Millimeters H1 2.5 H T D S M Threaded Insert Threaded Post Termination Termination MT 15 S 25 x 2.5 D H H1 S Threaded Insert Threaded Post Mounting Stud (M) +1/−0 +0.5/−0 ±1 ±0.2 Terminations (T) Terminations (MT) 76 55 61 31.7 M6 x 12 M8 x 22.5 M12 x 16 76 70 76 31.7 M6 x 12 M8 x 22.5 M12 x 16 76 95 101 31.7 M6 x 12 M8 x 22.5 M12 x 16 76 120 126 31.7 M6 x 12 M8 x 22.5 M12 x 16 76 140 146 31.7 M6 x 12 M8 x 22.5 M12 x 16 85 55 61 31.7 M6 x 12 M8 x 22.5 M12 x 16 85 70 76 31.7 M6 x 12 M8 x 22.5 M12 x 16 85 95 101 31.7 M6 x 12 M8 x 22.5 M12 x 16 85 120 126 31.7 M6 x 12 M8 x 22.5 M12 x 16 85 124.5 126 32 M6 x 10 M8 x 22.5 M12 x 16 85 140 146 31.7 M6 x 12 M8 x 22.5 M12 x 16 85 155 161 31.7 M6 x 12 M8 x 22.5 M12 x 16 85 174 180 31.7 M6 x 12 M8 x 22.5 M12 x 16 85 264 270 31.7 M6 x 12 M8 x 22.5 M12 x 16 Qualifications Reference Standards IEC 61071 IEC Climatic Category 40/85/21 according to IEC 60068–1 © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3049_C44U_RADIAL • 3/29/2019 2 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

Aluminum Can Power Film Capacitors C44U, 600 – 1,300 VDC, for DC Link General Technical Data Polypropylene Metallized Film, non-inductive type, Dielectric self-healing property Application DC Filtering/DC Link Climatic Category 40/85/21 IEC 60068–1 Maximum Operating Temperature +90°C Upper Temperature T Group A +85°C IEC 61071 – Endurance Test Temperature MAX Upper Temperature T Group B +70°C IEC 61071 – Endurance Test Temperature MAX Lower Temperature T −40°C min Standard IEC 61071 Aluminium case with or without, threaded bolt M12 Protection Plastic deck flame retardant execution UL 94 V–0 Thermosetting resin sealing UL 94 V–0 compliant Installation Any position Leads High current M6 or M8 terminals Packaging Packed in cardboard boxes with protection for the terminals Compliant with Directive 2002/95/EC and Directive 2011/65/ EU of the European Parliament and of the Council on 8 June RoHS Compliant 2011, including Commission Delegated Directive (EU) 2015/863 amending Annex II to Directive 2011/65/EU. Electrical Characteristics Capacitance Tolerance ±10% at +25°C Dissipation Factor (DF) ≤ 0.0002 at 10 kHz with T = 25°C ±5°C Surge Voltage 1.5 x V for maximum 10 times in lifetime at +25°C NDC 1.15 x V for maximum 30 minimum, once per day NDC Over-Voltage (IEC 61071) 1.3 x V for maximum 1 minimum, once per day NDC Peak Non-Repetitive Current 1.5 x I maximum 1,000 times in lifetime pkr Insulation Resistance IR x C ≥ 30,000 seconds at 100 VDC 1 minute at +25°C Capacitance Deviation in ±1.5% maximum on capacitance value measured at +25°C Operation Annual average ≤ 70%; 85% on 30 days/year randomly Permissible Relative Humidity distributed throughout the year. Dewing not admissible. Life Expectancy Life Expectancy – Group A 100,000 hours at V at Hot-Spot temperature T = 85°C NDC HS Life Expectancy – Group B 100,000 hours at V at Hot-Spot temperature T = 70°C NDC HS Capacitance drop at end of life −10% (typical) Failure Rate IEC 61709 50 FIT at V at reference T (see FIT curves) NDC HS © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3049_C44U_RADIAL • 3/29/2019 3 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

Aluminum Can Power Film Capacitors C44U, 600 – 1,300 VDC, for DC Link Test Method Test voltage between terminals 1.5 x V for 10 seconds or 1.65 V for 2 seconds at 25°C NDC NDC Test voltage between terminals 3.2 kVAC 50 Hz for 2 seconds and case Damp Heat IEC 60068–2–78 Change of temperature IEC 60068–2–14 Lifetime Expectancy/Failure Quota Graphs Lifetime Curve Group A – Heavy Duty FIT Group A – Heavy Duty Hot Spot Lifetime curve C44U series Hot Spot Temperature FIT at Hot Spot Temperatures Temperature [°C] 1.50 [°C] 1,000 ]C 1.40 <55 ND 90 /U 1.30 U o [ 1.20 70 100 85 e Rati 1.10 85 FIT 70 ag 1.00 10 olt 90 <55 V 0.90 0.80 1 10 100 1,000 10,000 100,000 1,000,000 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 Lifetime Expectancy [h] U/U NDC Lifetime Curve Group B – Standard Duty FIT Group B – Standard Duty Lifetime curve C44U series Hot Spot Hot Spot Temperature FIT at Hot Spot Temperatures Temperature 1.50 [°C] [°C] 10,000 ]NDC 1.40 <50 85 U/U 1.30 1,000 o [ 1.20 60 70 e Rati 1.10 70 FIT 100 60 g a 1.00 Volt 0.90 85 10 <50 0.80 10 100 1,000 10,000 100,000 1,000,000 1 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 Lifetime Expectancy [h] U/U NDC Notes: T = T + ΔT HS AMB ΔT = ESR * I 2 * Rth rms I should be limited to values granting ΔT ≤ 45°C rms © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3049_C44U_RADIAL • 3/29/2019 4 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

Aluminum Can Power Film Capacitors C44U, 600 – 1,300 VDC, for DC Link Table 1A – Ratings & Part Number Reference Maximum Ripple Peak Thermal ESR ESL Cap Dimensions (mm) Current Current Res Part Number dV/dt Pkg Weight Value VDC 10 kHz Group A Heavy 10 kHz (V/µs) Qty (grams) (µF) D H H1 40°C (A) (nH) (°C/W) Duty (mΩ) (A)1 120 700 76 55 61 63 2,520 1.1 36 9.9 21 18 280 C44UJGT6120A7TK 160 700 85 55 61 73 3,360 0.9 36 8.6 21 10 354 C44UJGT6160A8TK 175 700 76 70 76 62 2,450 1.4 40 8.2 14 18 348 C44UJGT6175A7TK 225 700 85 70 76 70 3,150 1.2 40 7.2 14 10 414 C44UJGT6225A8TK 350 700 76 120 126 55 2,450 2.8 50 5.3 7 9 569 C44UJGT6350A7SK 425 700 76 140 146 55 2,550 3.2 60 4.6 6 9 656 C44UJGT6425A7SK 450 700 85 120 126 65 3,150 2.3 50 4.6 7 5 723 C44UJGT6450A8SK 550 700 85 140 146 65 3,300 2.6 60 4.1 6 5 831 C44UJGT6550A8SK 75 900 76 55 61 57 1,950 1.4 36 9.9 26 18 283 C44UOGT5750A7TK 100 900 85 55 61 65 2,600 1.2 36 8.6 26 10 355 C44UOGT6100A8TK 110 900 76 70 76 57 1,870 1.6 40 8.2 17 18 324 C44UOGT6110A7TK 150 900 85 70 76 65 2,550 1.4 40 7.2 17 10 437 C44UOGT6150A8TK 220 900 76 120 126 50 1,980 3.3 50 5.3 9 9 574 C44UOGT6220A7SK 275 900 76 140 146 50 1,925 3.8 60 4.6 7 9 654 C44UOGT6275A7SK 300 900 85 120 126 60 2,700 2.7 50 4.6 9 5 711 C44UOGT6300A8SK 350 900 85 140 146 60 2,450 3.0 60 4.1 7 5 833 C44UOGT6350A8SK 50 1,100 76 55 61 52 1,550 1.6 36 9.9 31 18 265 C44UQGT5500A7TK 70 1,100 85 55 61 62 2,170 1.3 36 8.6 31 10 356 C44UQGT5700A8TK 75 1,100 76 70 76 58 1,575 1.6 40 8.2 21 18 352 C44UQGT5750A7TK 100 1,100 85 70 76 60 2,100 1.7 40 7.2 21 10 414 C44UQGT6100A8TK 150 1,100 76 120 126 45 1,650 4.1 50 5.3 11 9 577 C44UQGT6150A7SK 190 1,100 76 140 146 47 1,710 4.3 60 4.6 9 9 654 C44UQGT6190A7SK 200 1,100 85 120 126 55 2,200 3.2 50 4.6 11 5 723 C44UQGT6200A8SK 250 1,100 85 140 146 55 2,250 3.6 60 4.1 9 5 824 C44UQGT6250A8SK Cap Ripple Peak Thermal dV/dt Pkg VDC D H H1 ESR ESL Weight Part Number Value Current Current Res (V/µs) Qty 1 Current values that lead to a ΔT of ~85°C in the Hot Spot T = T + ΔT = 85°C HS AMB For Packaging quantities not listed, please contact KEMET. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3049_C44U_RADIAL • 3/29/2019 5 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

Aluminum Can Power Film Capacitors C44U, 600 – 1,300 VDC, for DC Link Table 1B – Ratings & Part Number Reference Maximum Ripple Peak Thermal ESR ESL Cap Dimensions (mm) Current Current Res Part Number dV/dt Pkg Weight Value VDC 10 kHz Group B 10 kHz (V/µs) Qty (grams) (µF) D H H1 40°C (A) (nH) (°C/W) Standard Duty (mΩ) (A)1 600 600 85 124.5 126 83 8,200 0.75 50 5.8 14 5 940 C44UHGT6600G8TK 200 900 76 95 101 45 2,000 2.3 36 6.4 10 9 645 C44UOGQ6200F7SK 270 900 76 95 101 50 2,700 1.8 36 6.4 10 9 610 C44UOGQ6270F7SK 370 900 85 95 101 60 3,700 1.4 40 5.6 10 5 715 C44UOGQ6370F8SK 510 900 85 120 126 60 3,570 1.8 40 4.6 7 5 840 C44UOGQ6510F8SK 600 900 85 140 146 58 4,200 2.2 40 4.1 7 5 950 C44UOGQ6600F8SK 130 1,100 76 95 101 40 1,560 2.8 36 6.4 12 9 580 C44UQGQ6130F7SK 175 1,100 76 95 101 46 2,100 2.2 36 6.4 12 9 610 C44UQGQ6175F7SK 240 1,100 85 95 101 56 2,880 1.7 40 5.6 12 5 710 C44UQGQ6240F8SK 280 1,100 76 140 146 43 1,960 3.4 40 4.6 7 9 805 C44UQGQ6280F7SK 330 1,100 85 140 146 50 2,310 2.9 40 4.1 7 5 990 C44UQGQ6330F8SK 420 1,100 85 155 161 60 2,940 2.1 60 3.7 7 5 1120 C44UQGT6420G8SK 500 1,100 85 174 180 90 6,000 1.1 80 3.4 12 5 1120 C44UQGQ6500F8SK 90 1,300 76 95 101 37 1,350 3.3 36 6.4 15 9 580 C44UUGQ5900F7SK 120 1,300 76 95 101 43 1,800 2.5 36 6.4 15 9 610 C44UUGQ6120F7SK 165 1,300 85 95 101 52 2,475 2.0 40 5.6 15 5 716 C44UUGQ6165F8SK 195 1,300 76 140 146 40 1,755 4.0 50 4.6 9 9 797 C44UUGQ6195F7SK 250 1,300 85 140 146 47 2,250 3.3 50 4.1 9 5 957 C44UUGQ6250F8SK 320 1,300 85 174 180 82 4,800 1.3 80 3.4 15 5 1130 C44UUGQ6320F8SK 550 1,300 85 264 270 82 4,950 1.9 100 2.3 9 5 1600 C44UUGQ6550F8SK Cap Ripple Peak Thermal dV/dt Pkg VDC D H H1 ESR ESL Weight Part Number Value Current Current Res (V/µs) Qty 1 Current values that lead to a ΔT of ~70°C in the Hot Spot à T = T + ΔT = 70°C HS AMB For Packaging quantities not listed, please contact KEMET. Marking MKP C44U Dielectric Type. Series. 500µF ±10% Capacitance. Tolerance. Un = 1100V~ Rated Voltage -40 +85°C Climatic Category Temperatures - Minimum/Maximum NO PCB SH Self-Healing Dielectric. B7 11257039 Production Date. Batch Number. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3049_C44U_RADIAL • 3/29/2019 6 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

Aluminum Can Power Film Capacitors C44U, 600 – 1,300 VDC, for DC Link Environmental Compliance As a leading global supplier of electronic components and an environmentally conscious company, KEMET continually aspires to improve the environmental effects of our manufacturing processes and our finished electronic components. In Europe (RoHS Directive) and in some other geographical areas such as China (China RoHS), legislation has been enacted to prevent or otherwise limit the use of certain hazardous materials, including lead (Pb), in electronic equipment. KEMET monitors legislation globally to ensure compliance and endeavors to adjust our manufacturing processes and/or electronic components as may be required by applicable law. For military, medical, automotive, and some commercial applications, the use of lead (Pb) in the termination is necessary and/or required by design. KEMET is committed to communicating RoHS compliance to our customers. Information related to RoHS compliance will be provided in data sheets and using specific identifiers on the packaging labels. All KEMET power film capacitors are RoHS compliant. Materials & Environment The selection of raw materials that KEMET uses for the production of its electronic components is the result of extensive experience. KEMET directs specific attention toward environmental protection. KEMET selects its suppliers according to ISO 9001 standards and performs statistical analyses on raw materials before acceptance for use in manufacturing our electronic components. All materials are, to the best of KEMET’s knowledge, non-toxic and free from cadmium; mercury; chrome and compounds; polychlorine triphenyl (PCB); bromide and chlorinedioxins bromurate clorurate; CFC and HCFC; and asbestos. Dissipation Factor Dissipation factor is a complex function involved with capacitor inefficiency. The tgδ may vary up and down with increased temperature. For more information, refer to Performance Characteristics. Sealing Hermetically Sealed Capacitors As the temperature increases, the pressure inside the capacitor increases. If the internal pressure is high enough, it can cause a breach in the capacitor. Such a breach can result in leakage, impregnation, filling fluid, or moisture susceptibility. Barometric Pressure The altitude at which hermetically sealed capacitors are operated controls the capacitor's voltage rating. As the barometric pressure decreases, the susceptibility to terminal arc-over increases. Non-hermetic capacitors can be affected by internal stresses due to pressure changes. These effects can be in the form of capacitance changes, dielectric arc-over, and/or low insulation resistance. Altitude can also affect heat transfer. Heat that is generated in an operation cannot be dissipated properly, and high RI2 losses and eventual failure can result. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3049_C44U_RADIAL • 3/29/2019 7 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

Aluminum Can Power Film Capacitors C44U, 600 – 1,300 VDC, for DC Link KEMET Electronics Corporation Sales Offi ces For a complete list of our global sales offi ces, please visit www.kemet.com/sales. Disclaimer All product specifi cations, statements, information and data (collectively, the “Information”) in this datasheet are subject to change. The customer is responsible for checking and verifying the extent to which the Information contained in this publication is applicable to an order at the time the order is placed. All Information given herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based on KEMET Electronics Corporation’s (“KEMET”) knowledge of typical operating conditions for such applications, but are not intended to constitute – and KEMET specifi cally disclaims – any warranty concerning suitability for a specifi c customer application or use. The Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by KEMET with reference to the use of KEMET’s products is given gratis, and KEMET assumes no obligation or liability for the advice given or results obtained. Although KEMET designs and manufactures its products to the most stringent quality and safety standards, given the current state of the art, isolated component failures may still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies) in order to ensure that the failure of an electrical component does not result in a risk of personal injury or property damage. Although all product–related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are indicted or that other measures may not be required. KEMET is a registered trademark of KEMET Electronics Corporation. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3049_C44U_RADIAL • 3/29/2019 8 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
