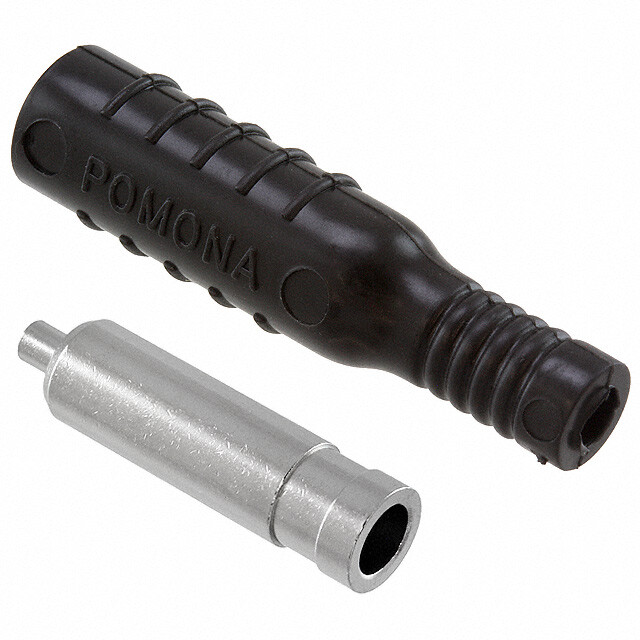

Model 5167 Pomona® Do-It-Yourself In-Line Banana Jack With Flexible Boot FEATURES: • This in-line banana jack is ideal for making patch cords and field repairs. • A snap-on two piece design allows the wire to be crimped or soldered to the banana jack • Part will accept 18, 20, 22 AWG wire, crimp or solder connection. • Use with Model #5169 to build a custom extension cable. MATERIALS: Body: Brass per QQ-B-626, Alloy 360, ½ Hard. Insulation: Flexible PVC. Marking: “POMONA” Finish: Body – Nickel plated per QQ-N-290, Class 2, 200/300 micro-inches. RATINGS: (Independent of Wire) Operating Temperature: +50(cid:176) C.(+122°F.) Max. Voltage: Hand-held testing: 30VAC/60VDC Max. Hands free testing in controlled voltage environments: 5000 WVDC Max. Current: 15 Amperes ORDERING INFORMATION: Model 5167-* *= Color, -0 Black, -2 Red Ordering Example: 5167-0, Color is Black Other colors available on special request. All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm). All specifications are to the latest revisions. Specifications are subject to change without notice. Registered trademarks are the property of their respective companies. Made in USA 6/9/99 Sales: 800-490-2361 Fax: 888-403-3360 PomonaACCESS 90624 (800) 444-6785 or (425) 446-6010 SY/EH/LS Technical Assistance: 800-241-2060 More drawings available at www.pomonaelectronics.com C:\Laura Goldberg\FlukeDataSheet\d5167_1_01.doc Page 1 of 1
